Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
PJF36060CU63AE1ABSAYP

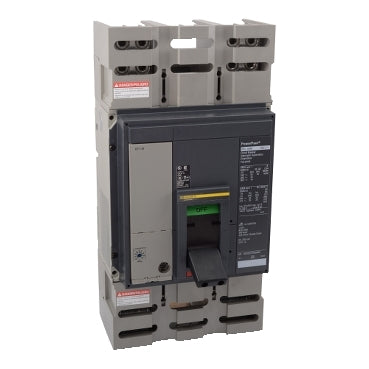

PJF36060CU63AE1ABSAYP is a Schneider Electric PowerPacT P series circuit breaker designed for reliable and precise electrical protection in commercial and industrial applications. This 3-pole breaker features a 600A current rating, 600VAC maximum voltage, and a 25kA interrupt rating, making it suitable for demanding environments. The unit is equipped with a Micrologic 5.0P electronic trip unit for advanced protection and monitoring capabilities, including 100% ground fault sensitivity and Modbus communication for integration into building management systems. The breaker is designed for lug mounting, ensuring secure and straightforward installation. This PowerPacT P breaker is engineered for high performance and durability, with common mounting holes and accessories for design standardization. It supports a wide range of applications and is compatible with various system configurations. The breaker is UL 489 Listed, CSA NMX, and IEC certified for global use, ensuring compliance with international safety and performance standards.
- 600A continuous current rating
- 600VAC maximum voltage
- 3-pole configuration
- 25kA interrupt rating
- Lug mounting type
- PowerPacT P series frame
- Micrologic 5.0P electronic trip unit
- 100% ground fault sensitivity
- Modbus communication capability
- UL 489 Listed
- CSA NMX certified
- IEC certified
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: PJF36060CU63AE1ABSAYP
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : PJF
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Frame Size : P Frame
- Protection : Solid State
Product Data
- UPC : 762179036197
- Weight : 37
