Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Breaker Type
Description
PJD36200GN

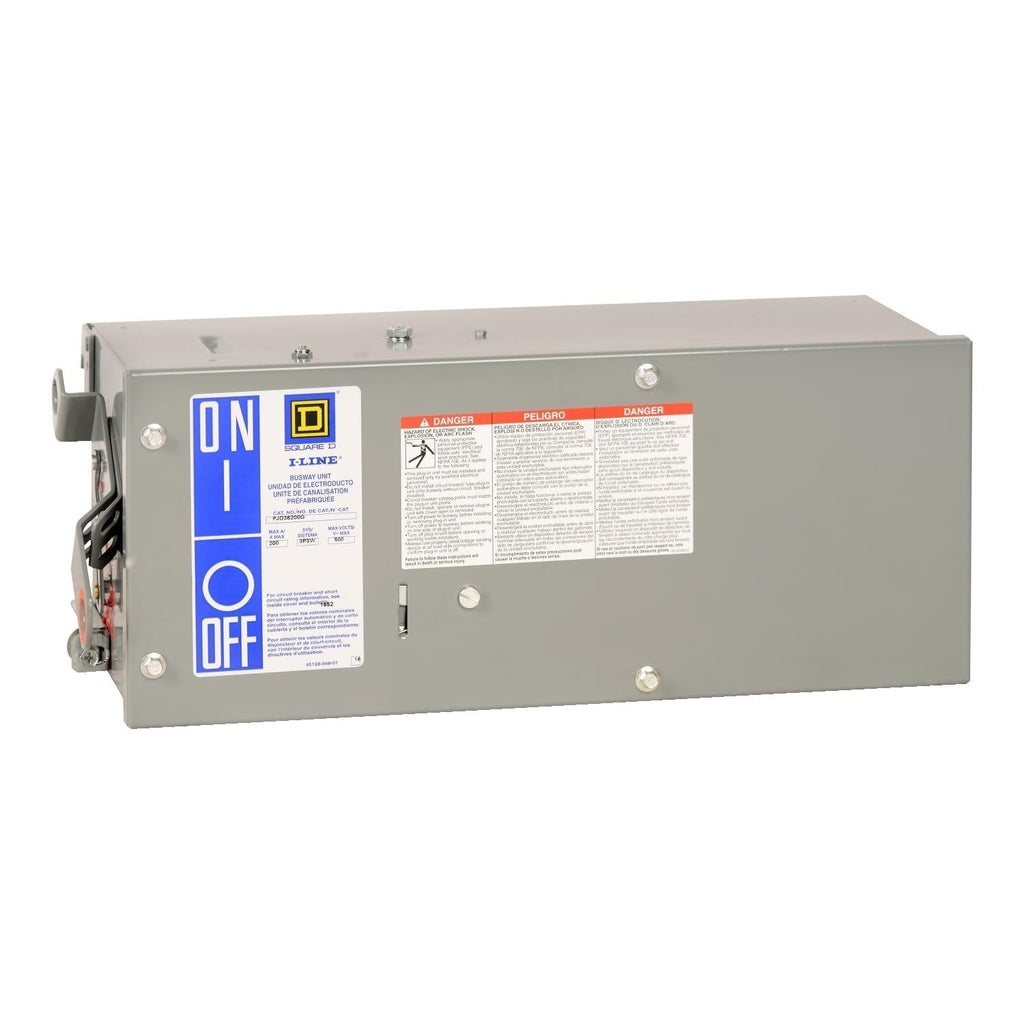

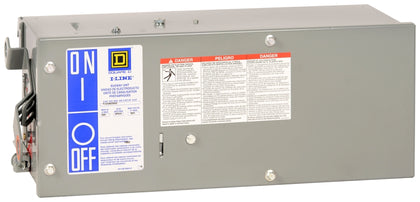

PJD36200GN is a Square D 200 Amp, 600 Volt, 3 Pole, 4 Wire bus plug designed for I-Line busway systems.The PJD36200GN bus plug is a breaker type unit with a JD frame, rated for 200 Amps and 600 VAC operation across 3 phases and 4 wires including ground. It features a thermal magnetic trip unit and an interrupting rating of 18kAIC at 480V. This plug is compatible with aluminum and copper busway and is UL and CSA certified.
- Manufacturer: Square D
- Part Number: PJD36200GN
- Amperage: 200A
- Voltage Rating: 600V AC
- Poles: 3
- Phase/Wire: 3 Phase, 4 Wire with Ground
- Frame Type: I-Line JD Breaker Type
- Interrupting Rating: 18kAIC at 480V
- Trip Unit: Thermal Magnetic
- Mounting Type: Plug-in Busway
- Certifications: UL, CSA
- Dimensions (approx): 8" Depth, 8.5" Width, 20.3" Height
Specifications
- Part Number: PJD36200GN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PJD
- Voltage : 277/480/600 AC
- Amperage : 200
- Phase : 3
- AIC rating : 18kA@480V
- Wire : 4
- Compatible Frames : JDP
Product Data
- UPC : 785901731788
- GTIN : 00785901731788
- Country of Origin : United States
- Dimensions : 8-1/2 in x 20-21/64 in
- Weight : 32.01
- Certification : CSA Certified, UL Listed
