PGL36100U43A - Square D 1000A 600VAC 3 Pole PowerPact P Circuit Breaker with Micrologic Trip Unit

PGL36100U43A

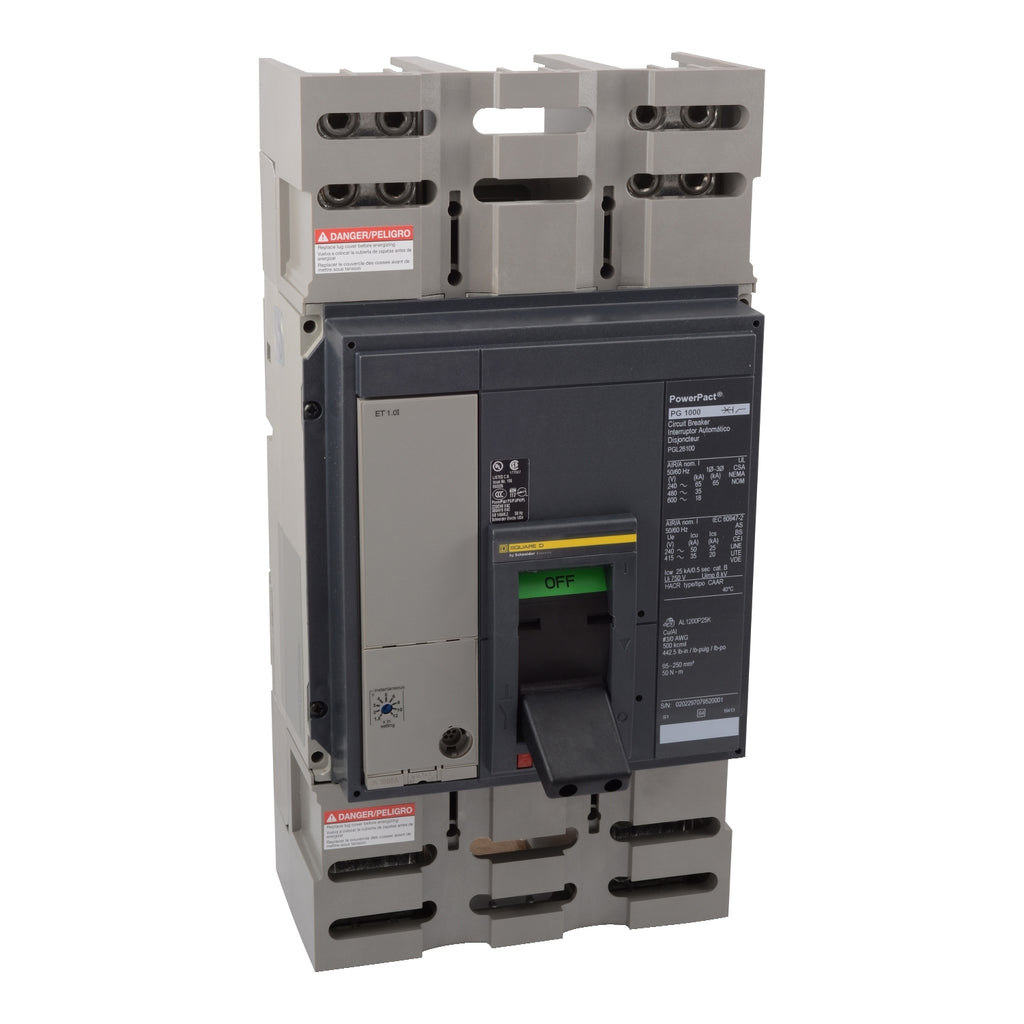

PGL36100U43A is a Square D PowerPact P molded case circuit breaker rated for 1000 amps and 600 volts AC with 3 poles and a Micrologic 5.0A trip unit. PGL36100U43A provides reliable circuit protection with an 18kA interrupt rating at 600VAC, lug connections, and is UL 489 listed, CSA NMX, and IEC certified for worldwide applications. It features common mounting holes and handle locations for easy panel integration and is designed for use as a main panel disconnect in control panels.

Key Specifications
• Amperage: 1000 Amps
• Voltage: 600 VAC
• Poles: 3
• Frame Type: PowerPact P (PGL series)
• Interrupt Rating: 18kA at 600VAC
• Trip Unit: Micrologic 5.0A, 80% rated
• Connection Type: Lug
• Certifications: UL 489, CSA NMX, IEC
• Mounting: Common mounting holes and handle locations
• Application: Main panel disconnect for control panels
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Lugs included AL1200P25K




Specifications

• Part Number: PGL36100U43A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGL
• Voltage : 600
• Amperage : 1000
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State



Product Data

• UPC : 60648628525
• GTIN : 03606486285251
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
