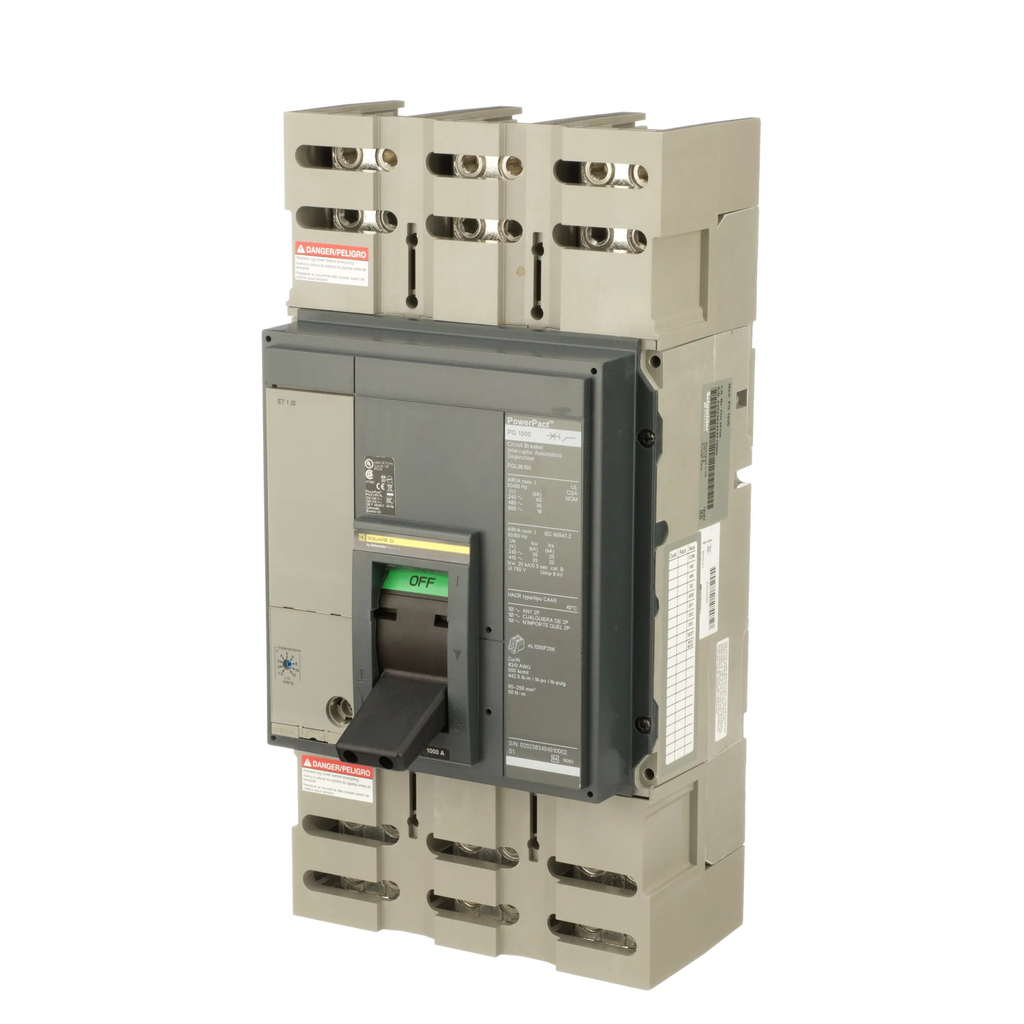

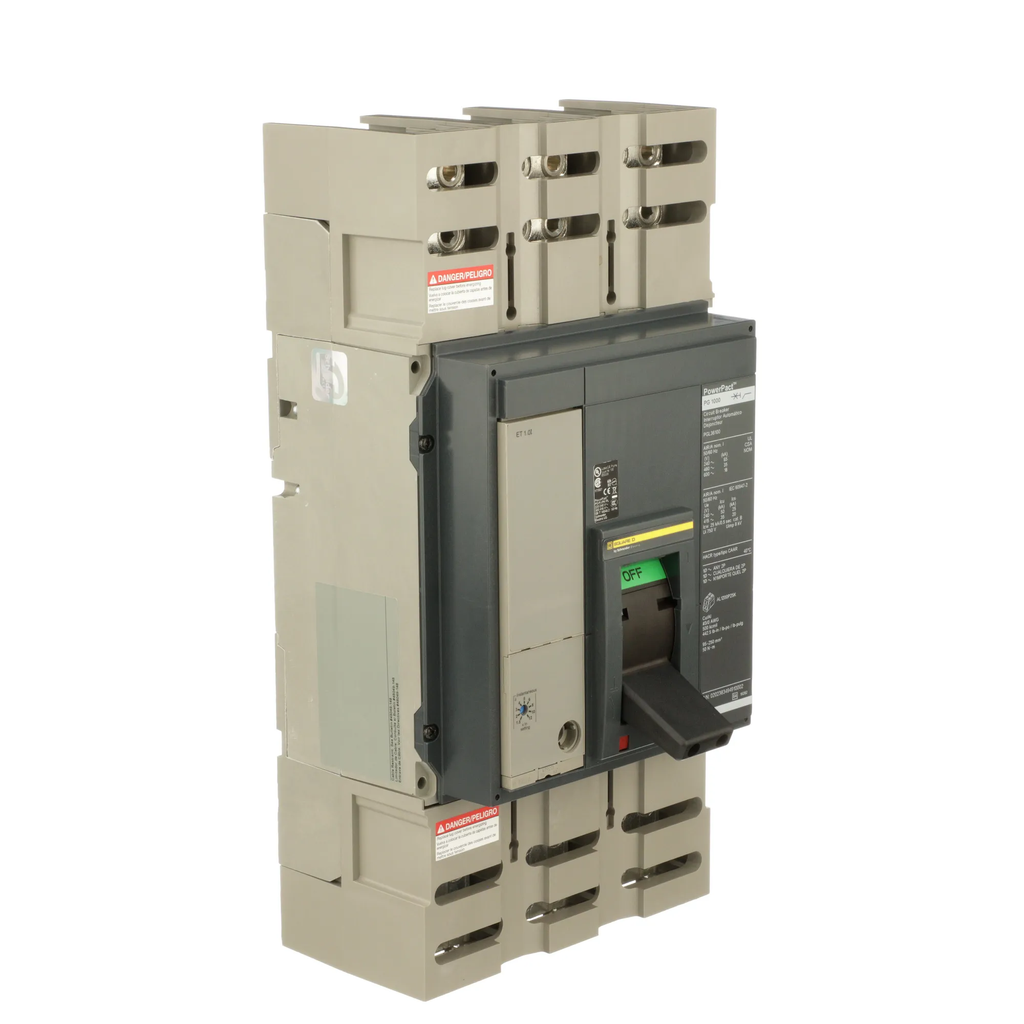

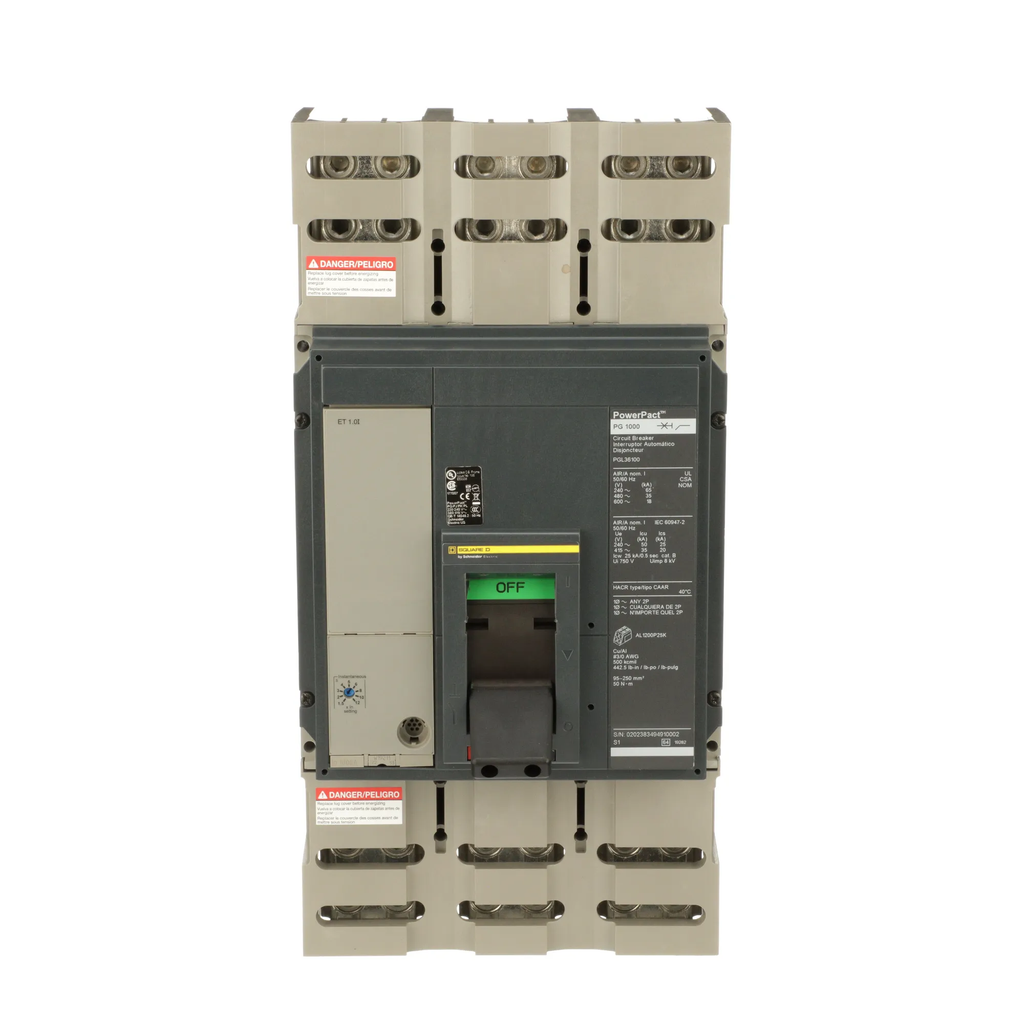

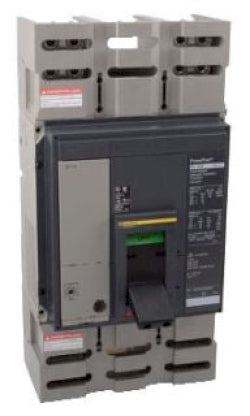

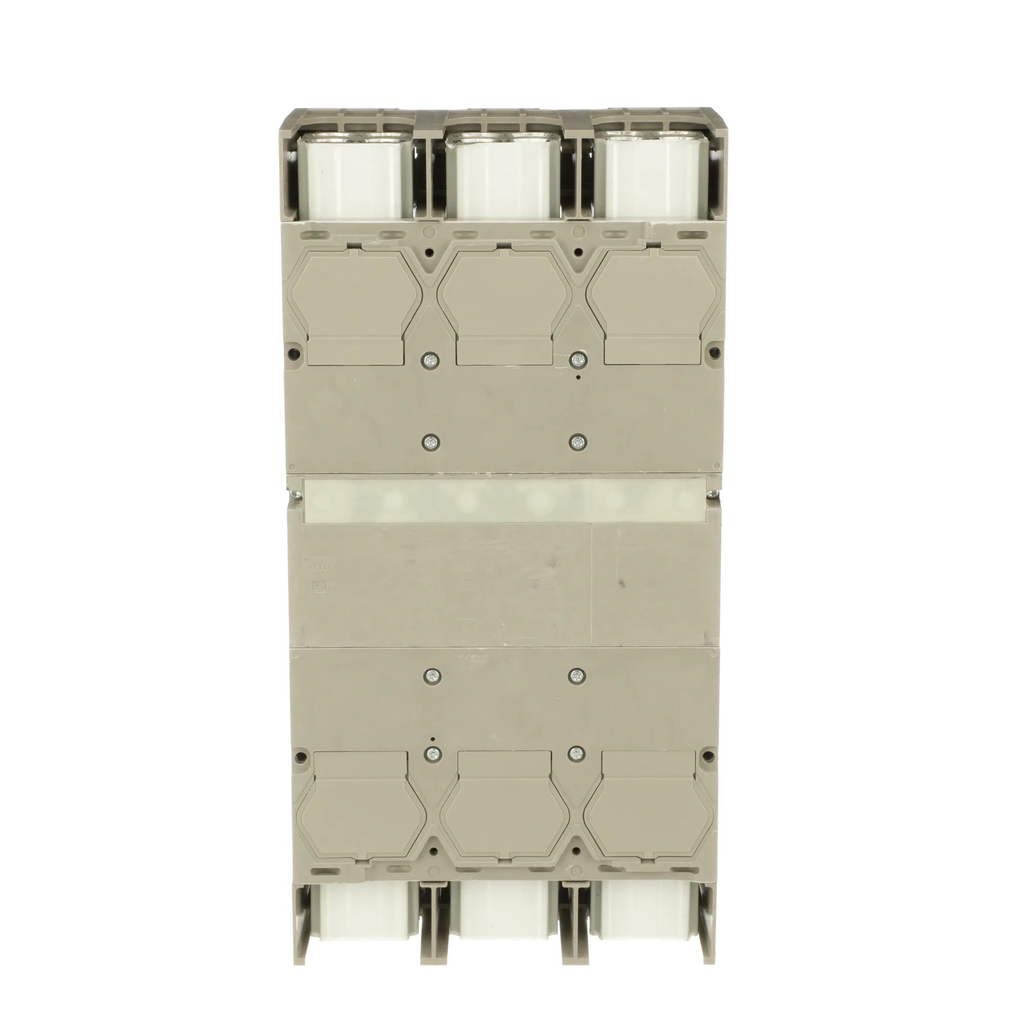

PGL36100 - Square D PowerPact P 1000A 3 Pole 600VAC Circuit Breaker

PGL36100

PGL36100 is a Square D PowerPact P molded case circuit breaker rated for 1000 amps and 600 volts AC with 3 poles.This circuit breaker features a 1000A trip rating, 600VAC voltage rating, 3 poles, and a P frame with an 18kA interrupt rating. It includes electronic basic ET1.0I trip unit with fixed long time and adjustable instantaneous trip, lug connections for 3/0 AWG to 500 kcmil wire, and is UL 489 and IEC certified.

Key Specifications
• Amperage: 1000A trip, 1200A frame
• Voltage Rating: 600VAC
• Poles: 3
• Interrupt Rating: 18kA at 600VAC
• Frame: PowerPact P
• Trip Unit: Electronic Basic ET1.0I
• Mounting: Standard panel mount with common holes
• Connection Type: Lug connection for 3/0 AWG to 500 kcmil
• Frequency: 50/60 Hz
• Certifications: UL 489, CSA NMX, IEC
• Operating Temperature: 40°C
• Dimensions: Approx. 8.3" W x 8.1" D x 16.2" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs included AL1200P25K

Specifications

• Part Number: PGL36100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGL
• Voltage : 600
• Amperage : 1000
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : P Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 785901787167
• GTIN : 00785901787167
• Country of Origin : Mexico
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 37.399
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
