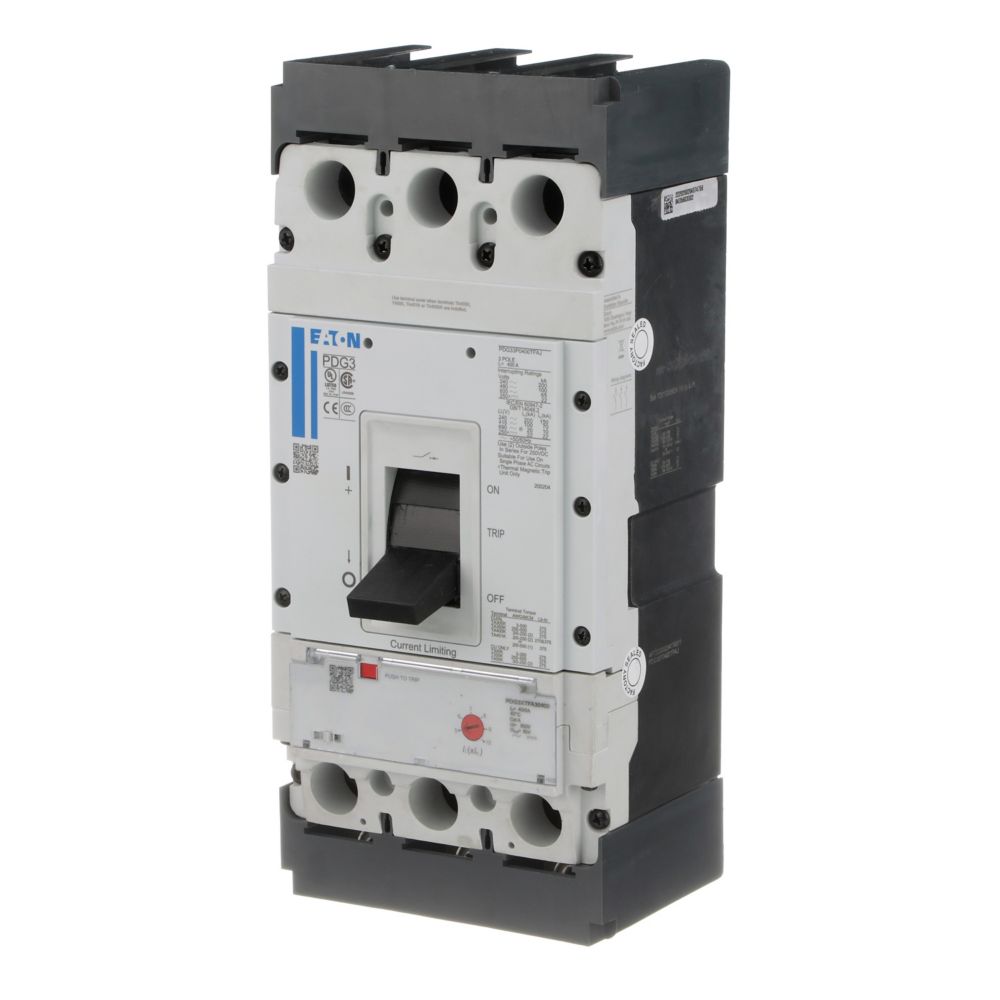

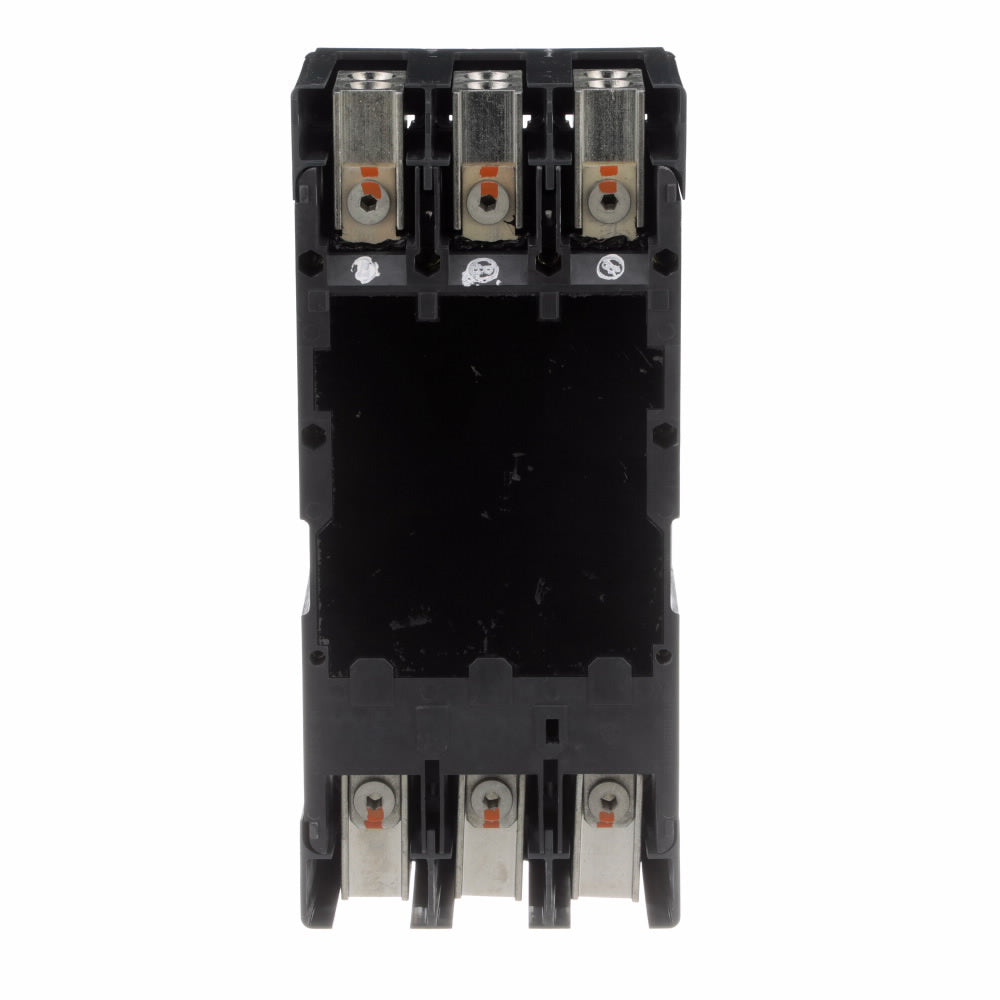

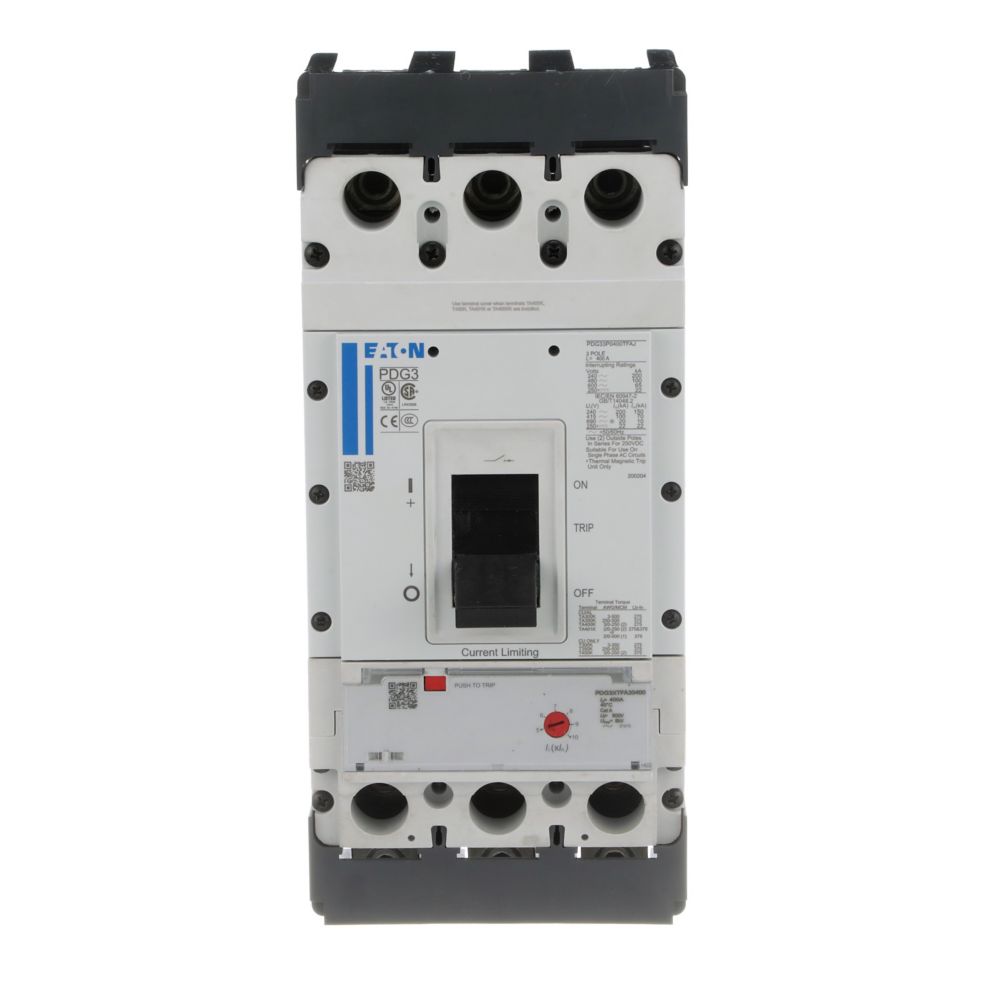

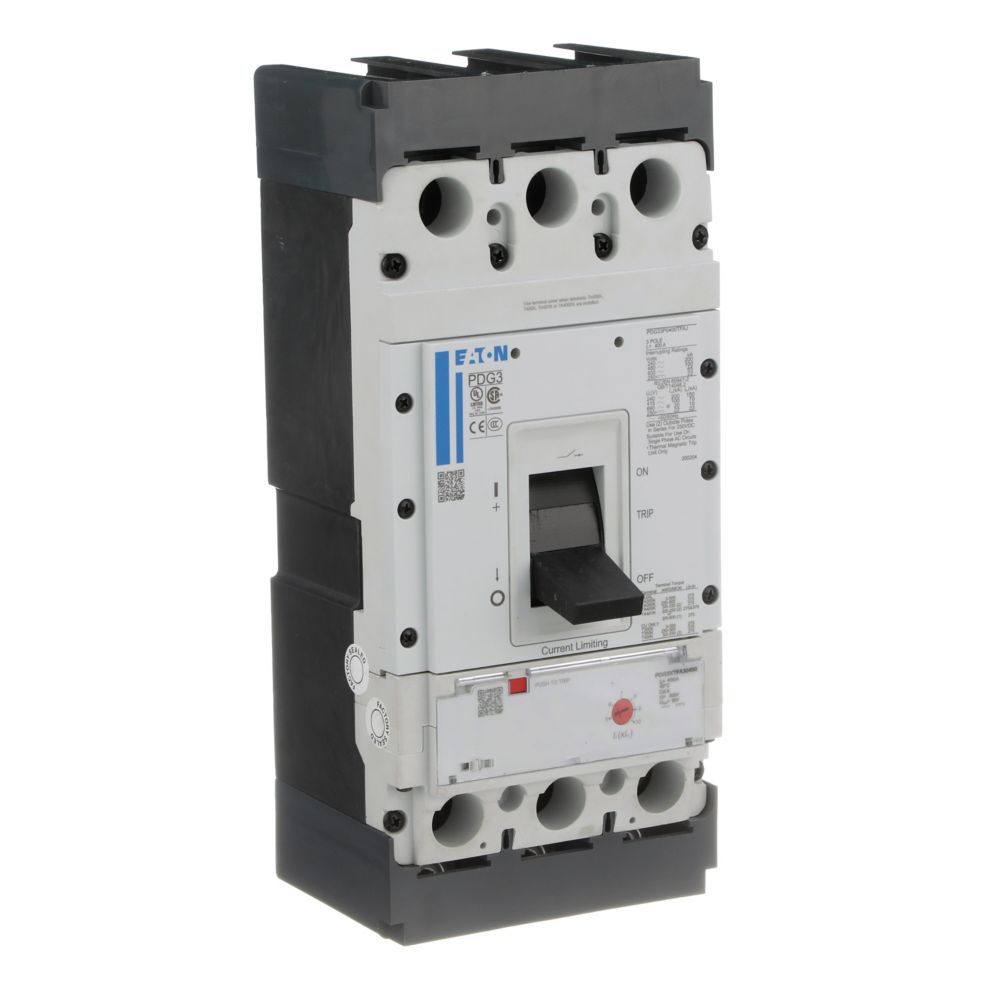

PDG33M0400TFAJ - Eaton 400A 600V 3-Pole Power Defense Molded Case Circuit Breaker Frame 3 Thermal Magnetic

PDG33M0400TFAJ

PDG33M0400TFAJ is a 3-pole, 400 amp, 600 volt molded case circuit breaker from Eaton's Power Defense series designed for reliable circuit protection.This Eaton circuit breaker features a Frame 3 design with thermal magnetic trip unit providing long-time and instantaneous protection. It has a 65kA interrupt rating at 480V AC and is suitable for three-phase applications with feed-thru connection type.

• Manufacturer: Eaton Cutler-Hammer
• Series: Power Defense
• Poles: 3
• Amperage: 400A
• Voltage Rating: 600 VAC
• Interrupt Rating: 65kA at 480V
• Frame Type: 3
• Trip Unit: Thermal Magnetic (Fixed-Adjustable)
• Connection Type: Feed-Thru
• Phase: 3
• Dimensions (HxWxD): 17 x 7.5 x 8 inches
• Weight: 14.08 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG33M0400TFAJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679535103
• GTIN : 786679535103
• Country of Origin : Dominican Republic
• Dimensions : 17 in x 7.5 in x 8 in (Length/Depth x Height x Width)
• Weight : 14.08
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
