2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description

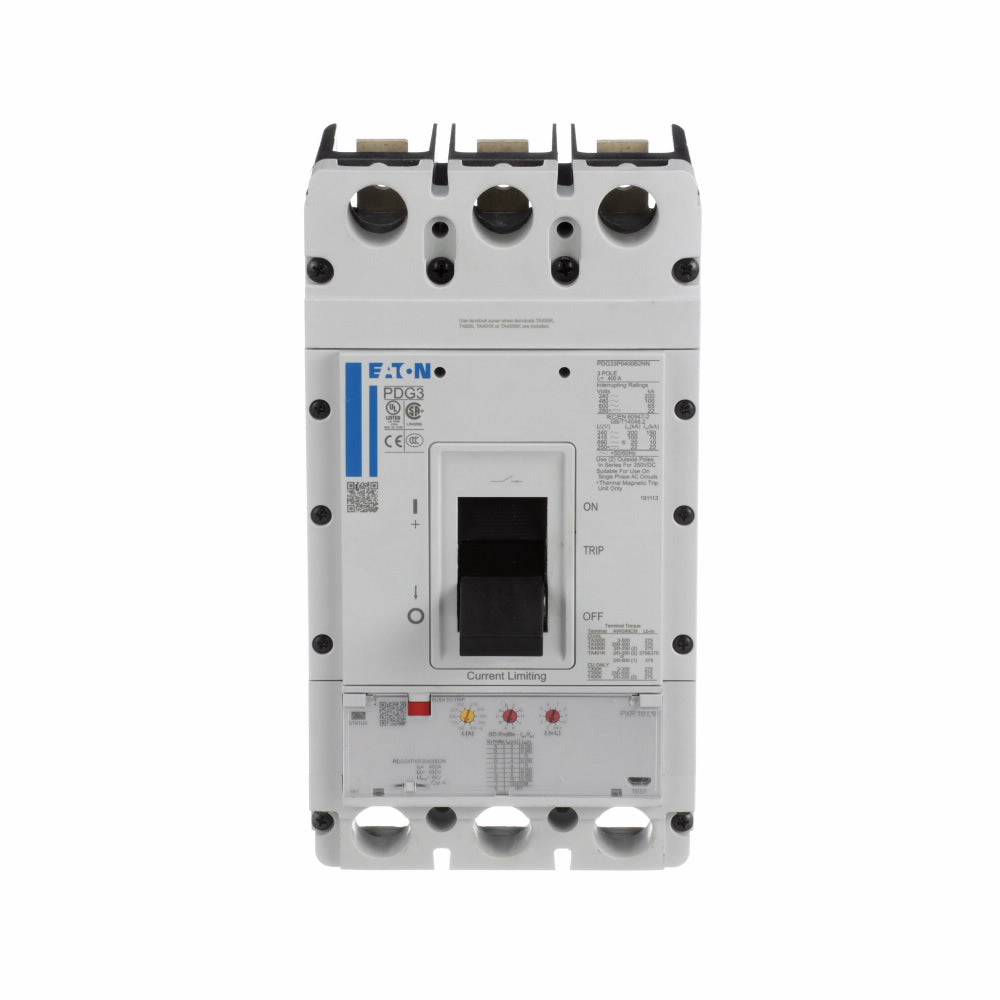

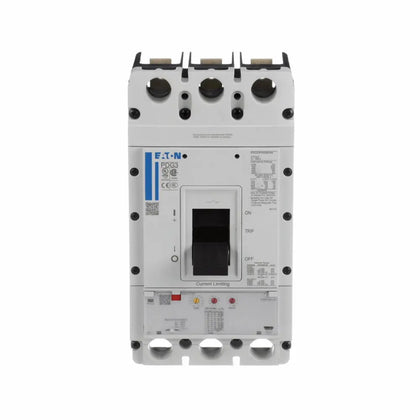

PDG33M0400B2NJ
PDG33M0400B2NJ is a 400 amp, 3-pole molded case circuit breaker from Eaton's Power Defense series designed for reliable power distribution protection.This circuit breaker features a Frame 3 size with a 600 VAC maximum voltage rating and a 65kA interrupt rating at 480 VAC. It includes an electronic switch-off technique with a PXR 10 LSI trip unit for advanced protection. The breaker is IP2X enclosure rated and suitable for industrial and commercial electrical applications.
- Amperage: 400A
- Voltage Rating: 600 VAC max
- Poles: 3
- Interrupt Rating: 65kA at 480 VAC
- Frame Size: 3
- Trip Unit: PXR 10 LSI electronic trip
- Mounting Type: Molded case
- Enclosure Type: IP2X
- Switch Off Technique: Electronic
- Length: 109.1 mm
- Series: Power Defense
- Certifications: Eaton standard industrial certifications
Specifications
- Part Number: PDG33M0400B2NJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 78667954124
- GTIN : 00786679541241
- Country of Origin : Dominican Republic
- Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
- Weight : 13.2016
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
