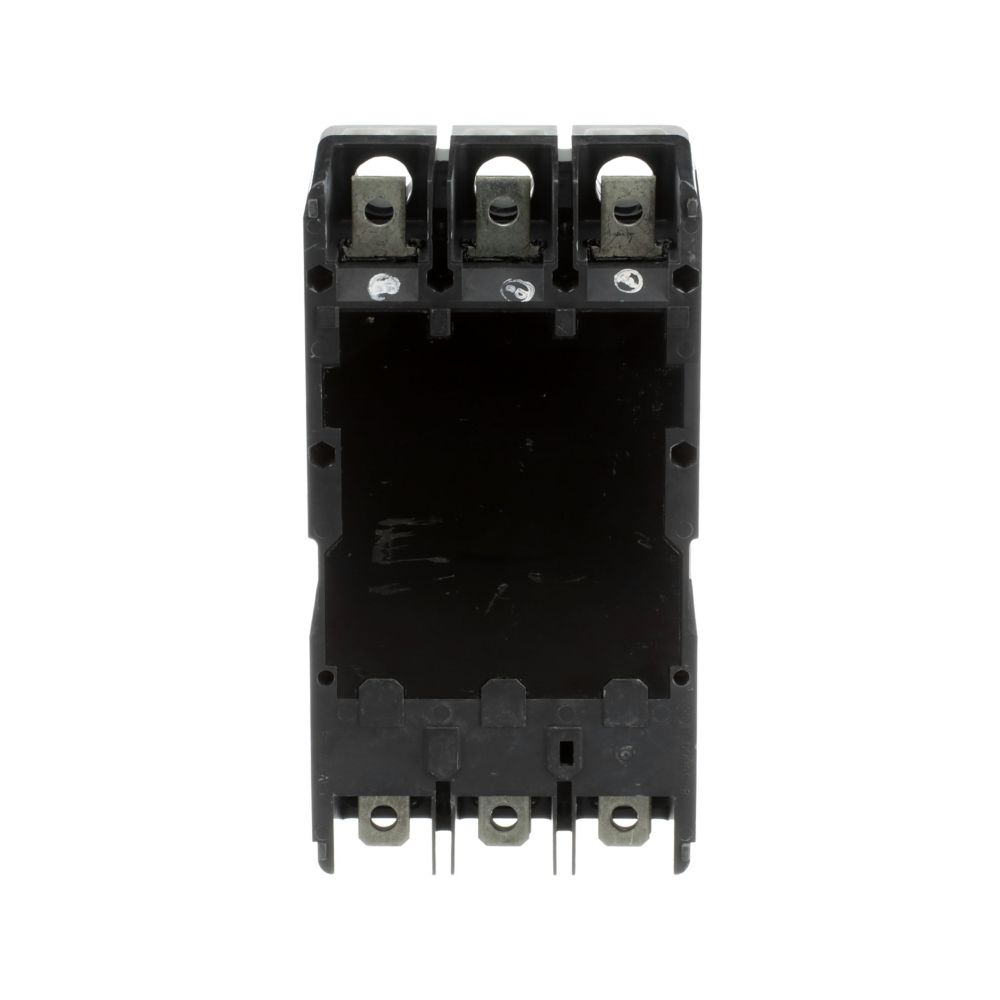

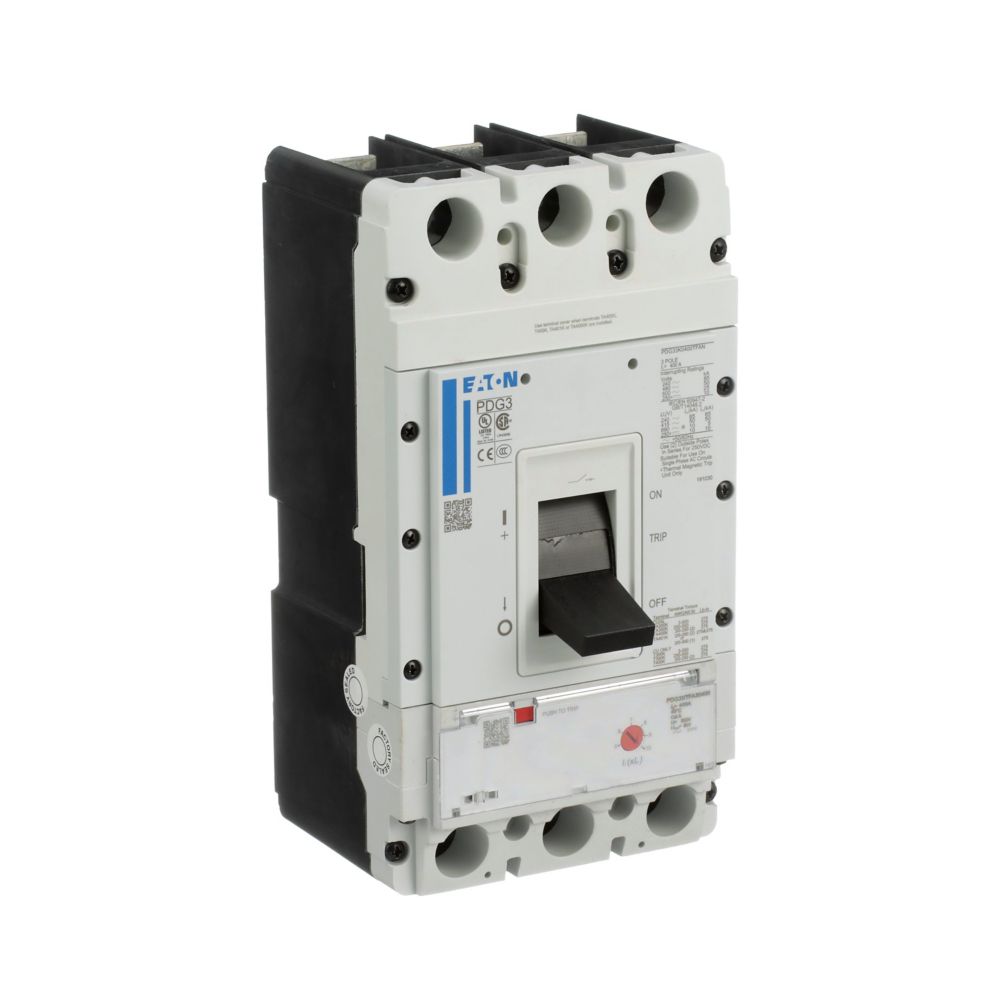

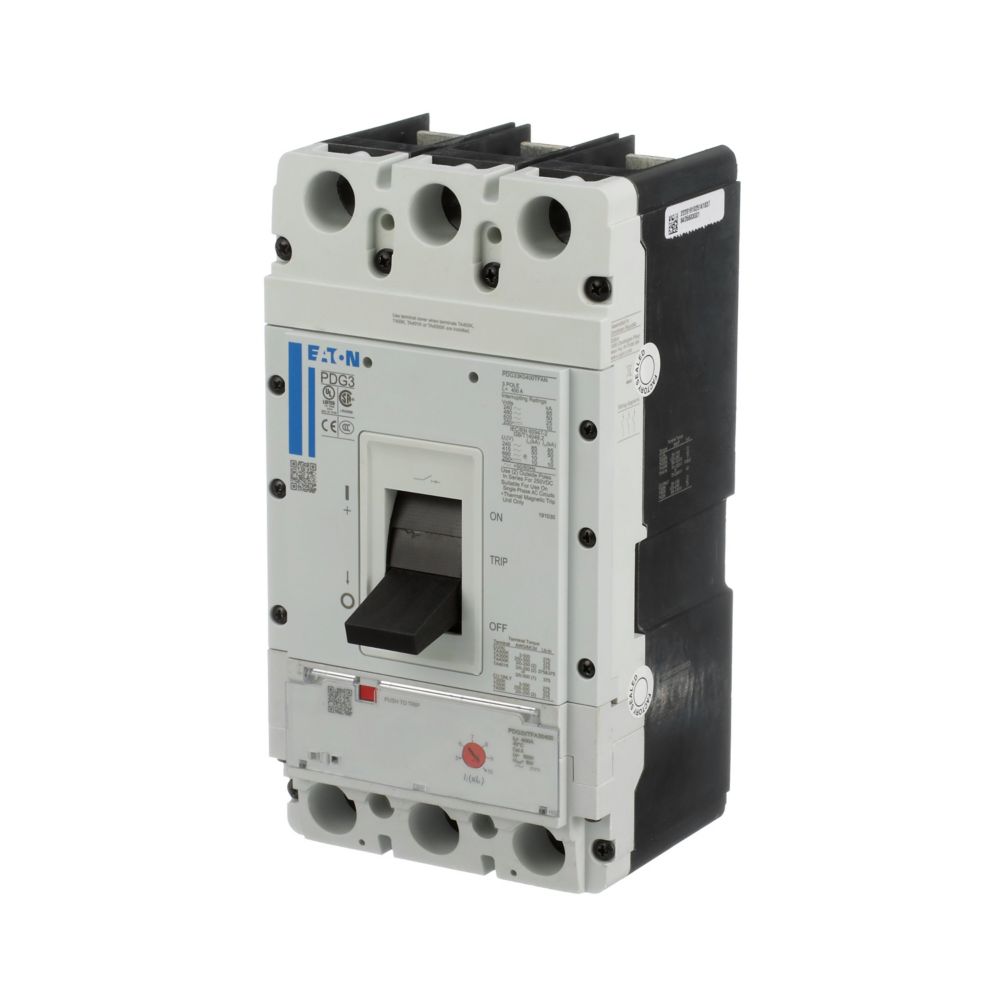

PDG33G0400TFAN - Eaton Cutler Hammer 400A 600V 3 Pole Bolt-On Molded Case Circuit Breaker, Power Defense Series, Frame 3, 35kAIC, Thermal Magnetic Trip Unit

PDG33G0400TFAN

PDG33G0400TFAN is a high-performance molded case circuit breaker from Eaton Cutler Hammer, designed for robust power distribution applications.

This 3-pole, bolt-on circuit breaker is part of the Power Defense series, offering a 400A current rating, 600V voltage rating, and a 35kA interrupting capacity at 480V. It features a thermal magnetic trip unit for reliable overload and short-circuit protection, and is globally rated for use in demanding environments.

Key Specifications
• Part Number: PDG33G0400TFAN
• Manufacturer: Eaton Cutler Hammer
• Amperage: 400A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 35kAIC at 480V
• Series/Frame: Power Defense, Frame 3
• Trip Unit: Thermal Magnetic (Fixed-Adjustable)
• Certifications: Globally rated
• Terminals: No terminals included
• Dimensions: 7" x 8.2" x 13" (HxWxD)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG33G0400TFAN
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679265406
• Country of Origin : Dominican Republic
• Dimensions : 13 in x 7 in x 8.2 in (Length/Depth x Height x Width)
• Weight : 12
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
