PDG33G0400B2NN - Eaton 400A 600V 3 Pole Power Defense Molded Case Circuit Breaker, 35kA@480V, Frame 3, PXR10 LSI Trip Unit

PDG33G0400B2NN

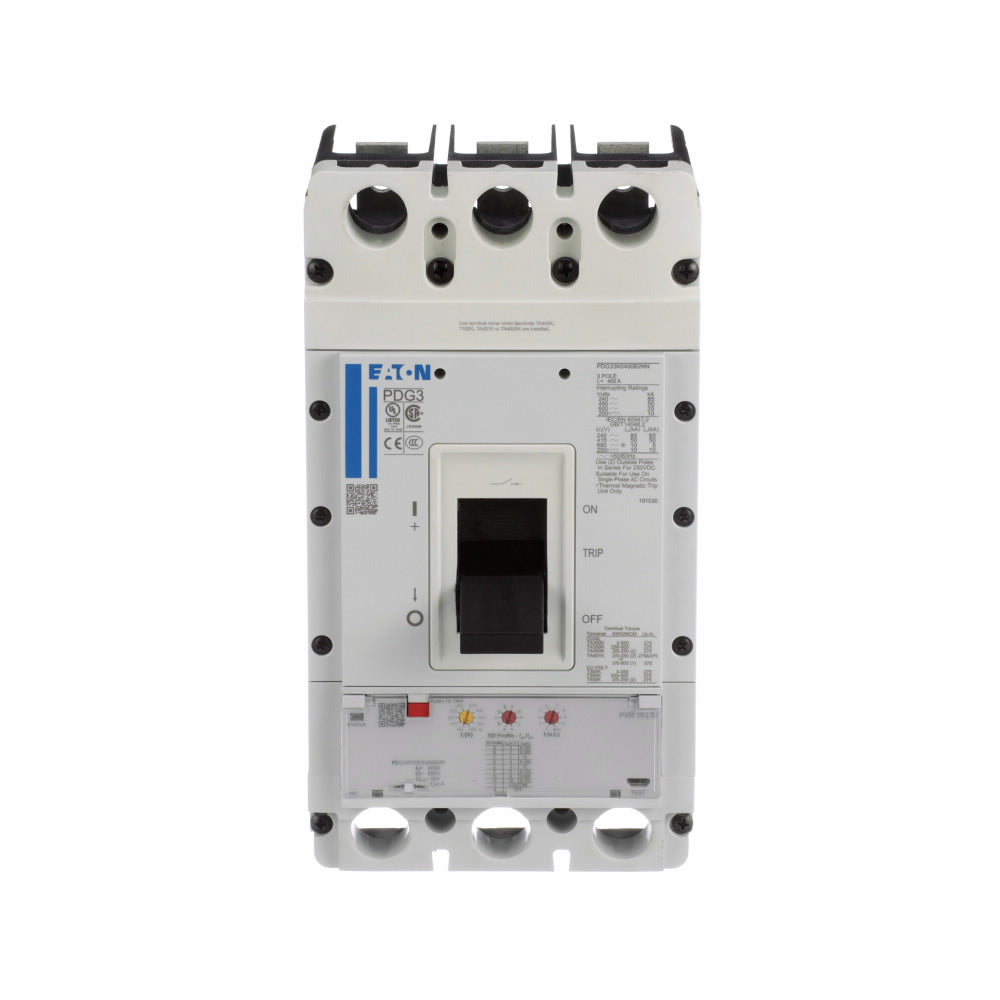

PDG33G0400B2NN is a 3 pole, 400 amp, 600 VAC molded case circuit breaker from Eaton's Power Defense series designed for reliable circuit protection.This circuit breaker features a frame 3 design with a 35kA interrupt rating at 480V and 18kA at 600V. It includes a PXR10 LSI (Long-time, Short-time, Instantaneous) trip unit for precise protection. The breaker is bolt-on mounted and has no terminals, measuring approximately 109.1mm long, 257.1mm high, and 138.9mm wide. It is globally rated and suitable for industrial and commercial applications requiring high interrupt capacity and dependable performance.

Key Specifications
• Amperage: 400A
• Voltage Rating: 600 VAC
• Poles: 3
• Interrupt Rating: 35kA at 480V, 18kA at 600V
• Frame: 3 (Power Defense Series)
• Trip Unit: PXR10 LSI (Long-time, Short-time, Instantaneous)
• Mounting Type: Bolt-On
• Dimensions: 109.1mm L x 257.1mm H x 138.9mm W
• Weight: 5.92 kg
• Terminals: None (no terminals)
• Certifications: Globally Rated
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: PDG33G0400B2NN
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 78667923858
• GTIN : 00786679238585
• Country of Origin : Dominican Republic
• Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
• Weight : 13.2016
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
