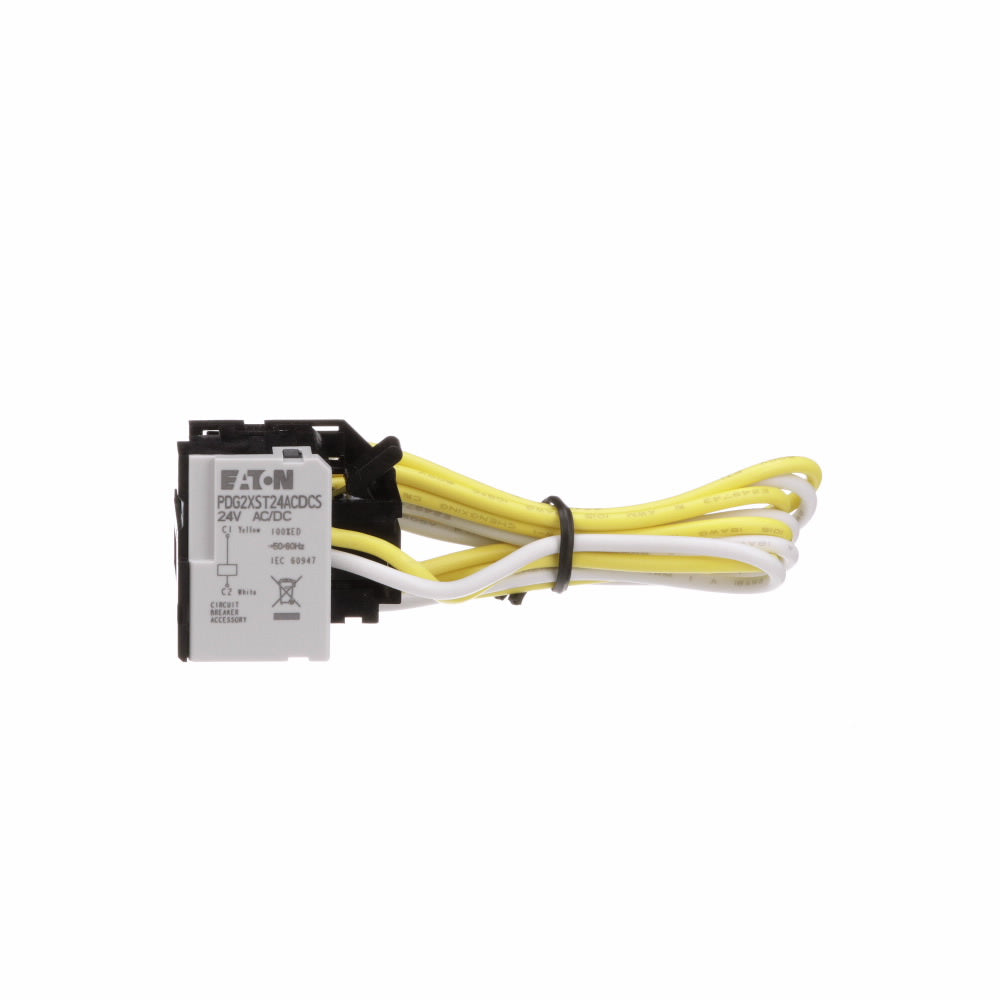

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Sub-Category
- Shunt Trip
- Series
- Power Defense Series
- Frame
- PDG
- Control Voltage Minimum
- 24
- Compatible Frames
- PDG
- Control Voltate Maximum
- 24
- Weight
- 5
Product description & additional details
PDG2XST24ACDCS
PDG2XST24ACDCS is a Cutler Hammer Power Defense molded case circuit breaker accessory shunt trip designed for 24 VAC/DC operation with Frame 2 J-K compatibility.This shunt trip accessory provides reliable remote tripping capability for Power Defense circuit breakers, featuring a 24 VAC/DC coil voltage and screw terminal connections. It is RoHS compliant and certified to UL 489, CSA, IEC 60947-2, and CCC standards, ensuring safety and performance in industrial and commercial electrical applications.
- Type: Shunt Trip
- Voltage Rating: 24 VAC/DC
- Frame Size: 2 (Frame J-K)
- Series: Power Defense
- Terminals: Screw Terminal
- Certifications: UL 489, CSA, IEC 60947-2, CCC Marked
- Compliance: RoHS Compliant
- Weight: 0.14 lb
- Mounting: Compatible with Power Defense molded case breakers
- Warranty: 1 year from installation or 18 months from shipment
Specifications
- Part Number: PDG2XST24ACDCS
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Power Defense Series
- Type : PDG
- Control Voltage Minimum : 24
- Compatible Frames : PDG
- Control Voltate Maximum : 24
Product Data
- Weight : 5
