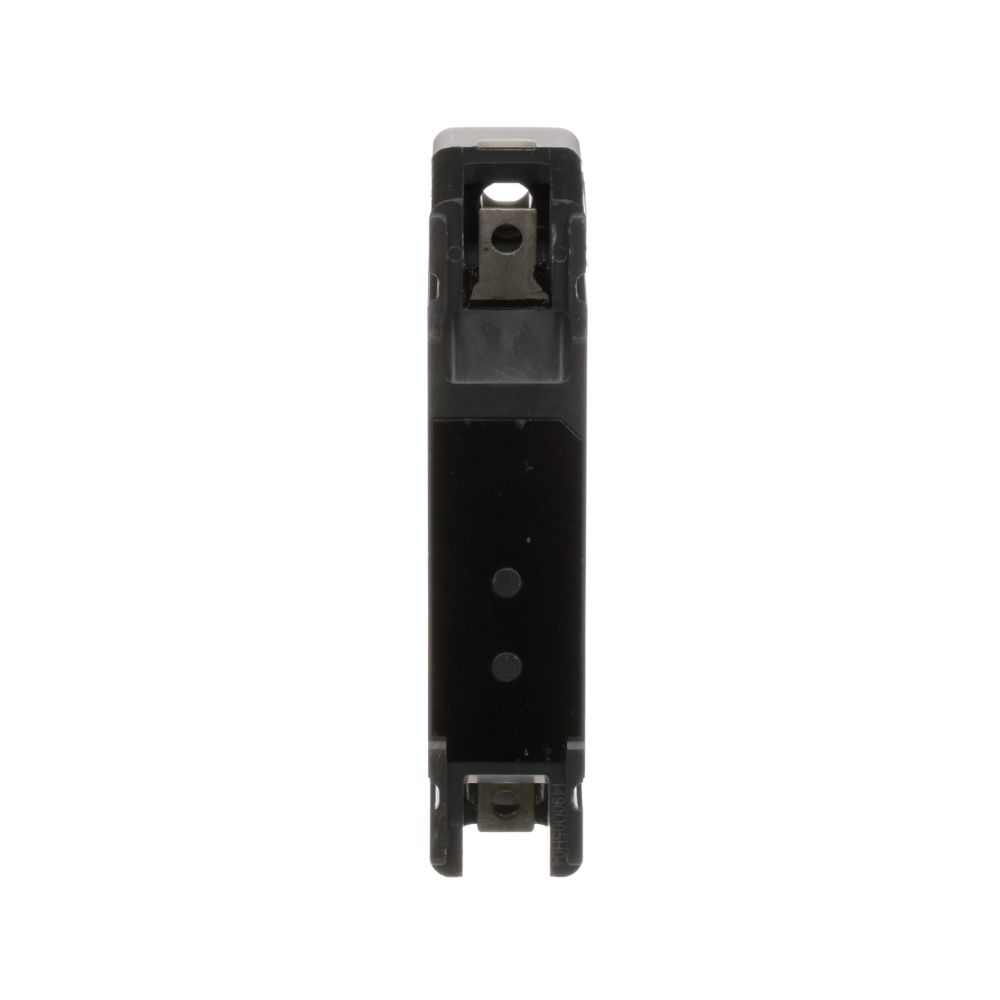

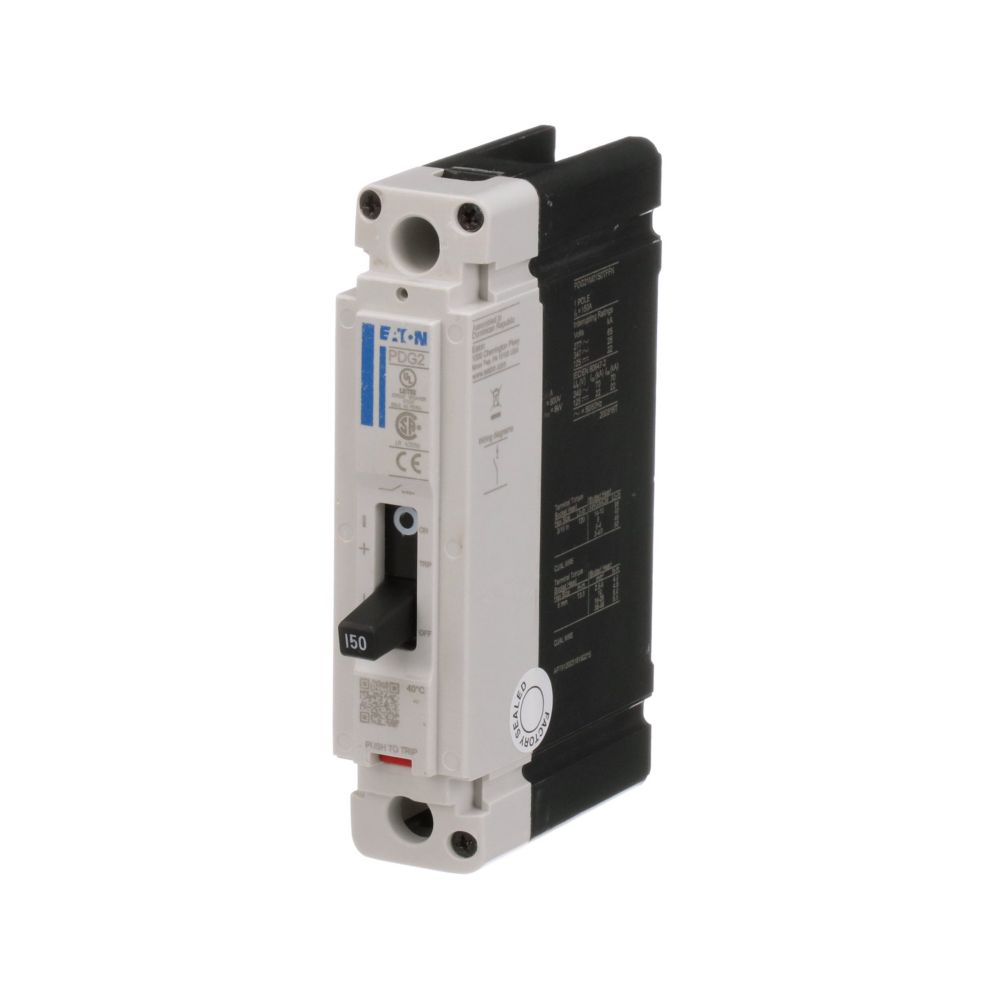

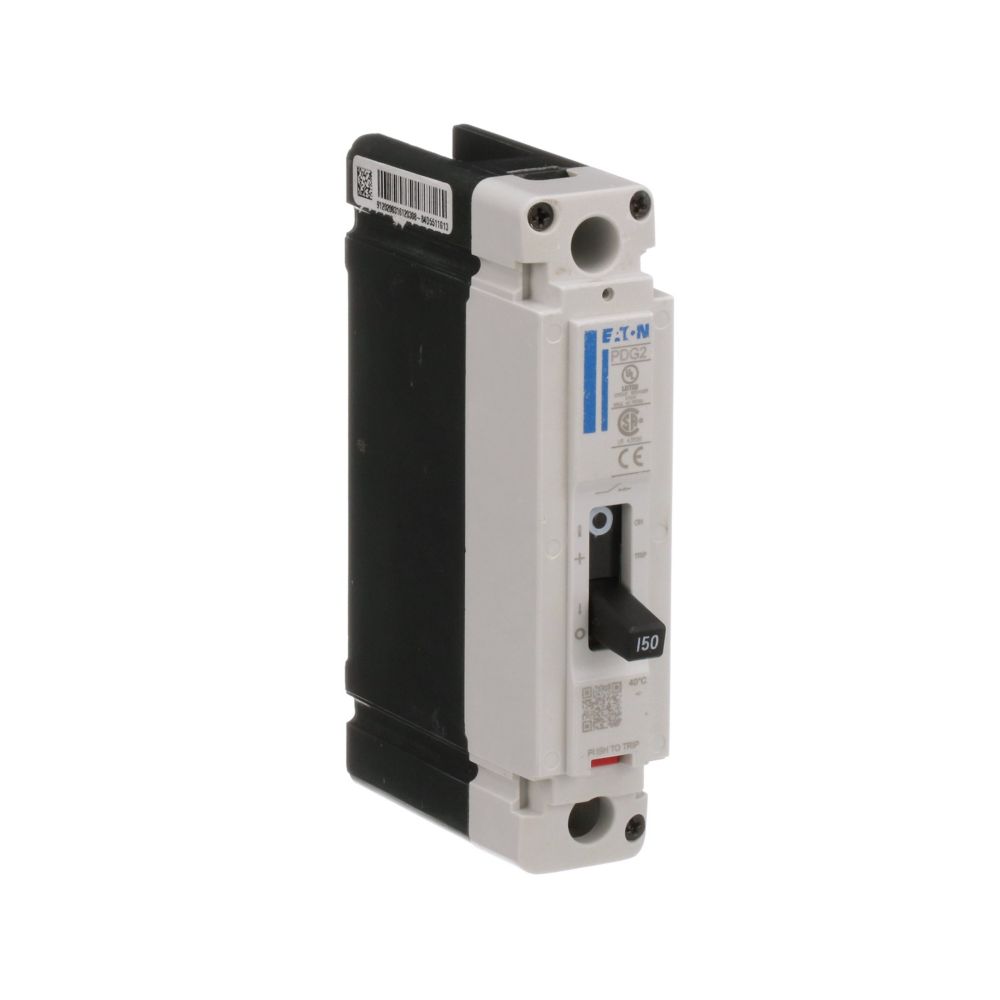

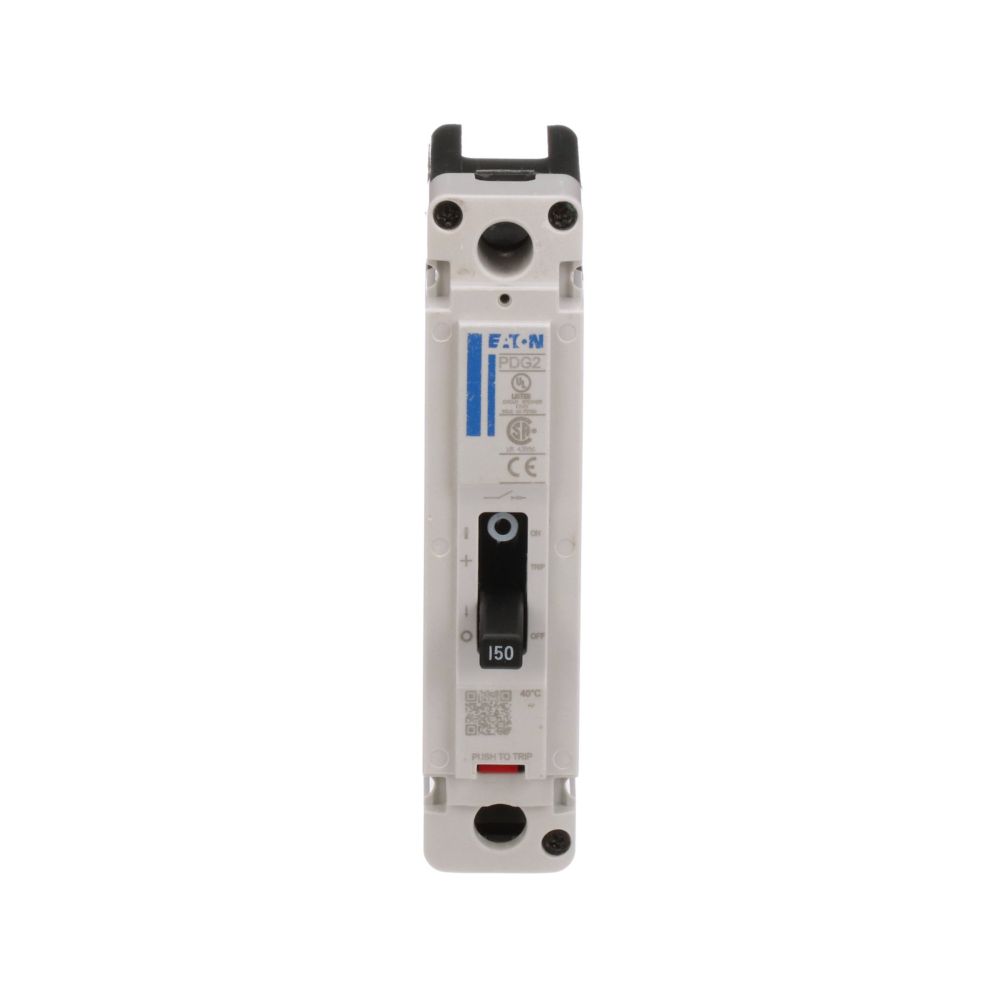

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Sub-Category
- Molded Case
- Series
- Power Defense Series
- Frame
- PDG
- Rated current
- 20
- Voltage
- 600V
- Poles
- 1
- Phases
- 1
- Interrupting rating
- 65kA@480V
- Trip functions
- LI - Long-Time and Instantaneous
- Protection
- Thermal Magnetic
- Connection
- Feed-Thru
- UPC
- 78667929580
- GTIN
- 00786679295809
Show all specifications (2 more)
- Dimensions
- 88.9 mm x 152.4 mm x 35.1 mm (Length/Depth x Height x Width)
- Weight
- 4.55143
Product description & additional details
PDG21M0020TFFJ
PDG21M0020TFFJ is a single-pole, 20 amp, 600 volt molded case circuit breaker from Eaton Cutler Hammer, designed for reliable circuit protection in commercial and industrial applications.
This Power Defense series breaker features a Frame 2 design, fixed thermal-magnetic trip unit, and a high interrupting capacity of 65kA at 480V. It is globally rated, suitable for standard line and load connections, and engineered for durability and safety in demanding environments.
-
Key Specifications
- Part Number: PDG21M0020TFFJ
- Manufacturer: Eaton Cutler Hammer
- Amperage: 20A
- Voltage: 600V
- Poles: 1
- Mounting Type: Fixed
- Interrupt Rating: 65kA at 480V
- Series/Frame: Power Defense, Frame 2
- Trip Unit: Fixed Thermal-Magnetic (T-M)
- Connection: Standard line and load
- Certifications: Globally rated
- Application: Commercial, industrial power distribution
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: PDG21M0020TFFJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78667929580
- GTIN : 00786679295809
- Dimensions : 88.9 mm x 152.4 mm x 35.1 mm (Length/Depth x Height x Width)
- Weight : 4.55143
