Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG11G0015TFFJ

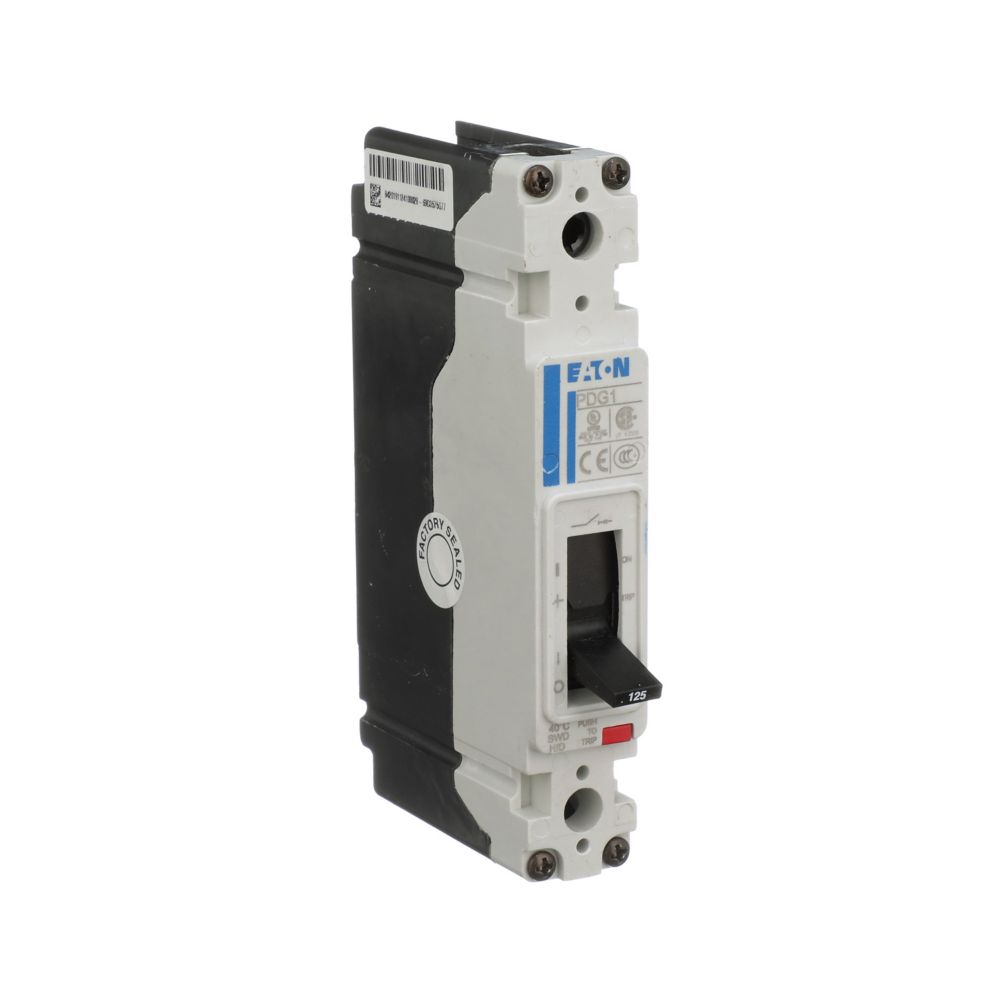

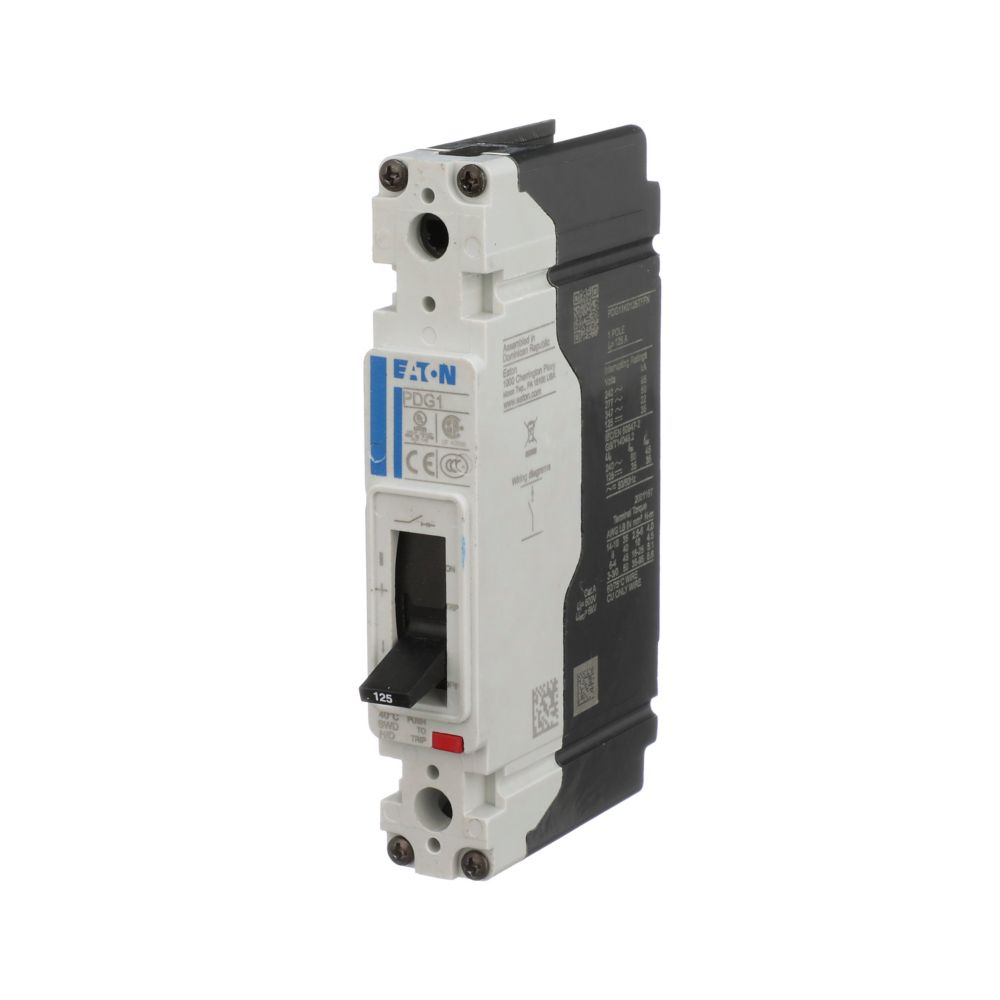

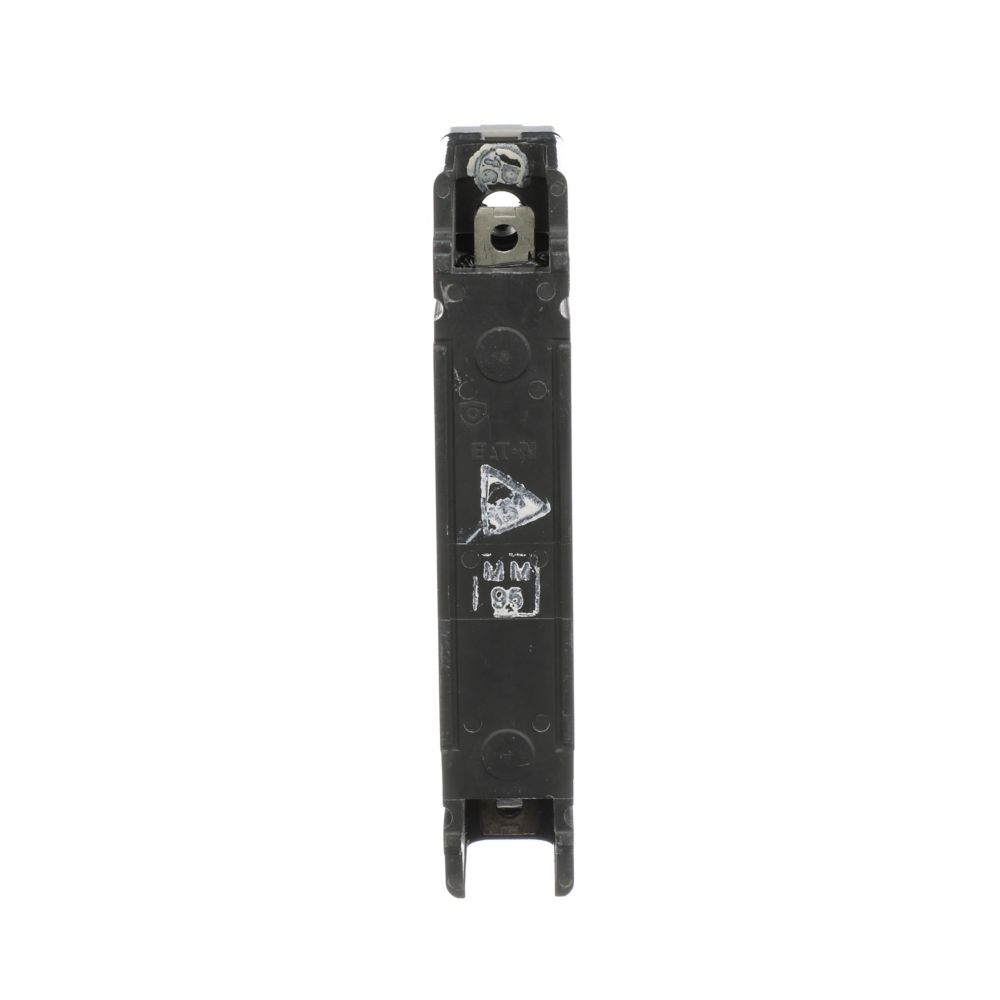

PDG11G0015TFFJ is a single-pole molded case circuit breaker from Eaton's Power Defense series, designed for reliable protection in commercial and industrial power distribution systems. This breaker features a 15A current rating, 600VAC maximum voltage, and a robust interrupt rating of 35kA at 480VAC. It is globally rated, suitable for standard line and load mounting, and utilizes a thermal-magnetic trip unit for dependable overcurrent protection. The compact design and high performance make it ideal for a wide range of applications.
- Part Number: PDG11G0015TFFJ
- Manufacturer: Eaton (Cutler Hammer)
- Series/Frame: Power Defense, Frame 1
- Number of Poles: 1 Pole
- Current Rating: 15A
- Voltage Rating: 600VAC, 250VDC
- Interrupt Rating: 35kA at 480VAC
- Mounting Type: Standard Line and Load
- Trip Unit: Thermal-Magnetic (Fixed-Fixed)
- Global Certification: Yes
- Weight: 1.0 lb
- Dimensions: 139.7 mm H x 25.4 mm W
Specifications
- Part Number: PDG11G0015TFFJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 786679217344
- Dimensions : 76 mm x 139.7 mm x 25.4 mm (Length/Depth x Height x Width)
- Weight : 1.01151016
