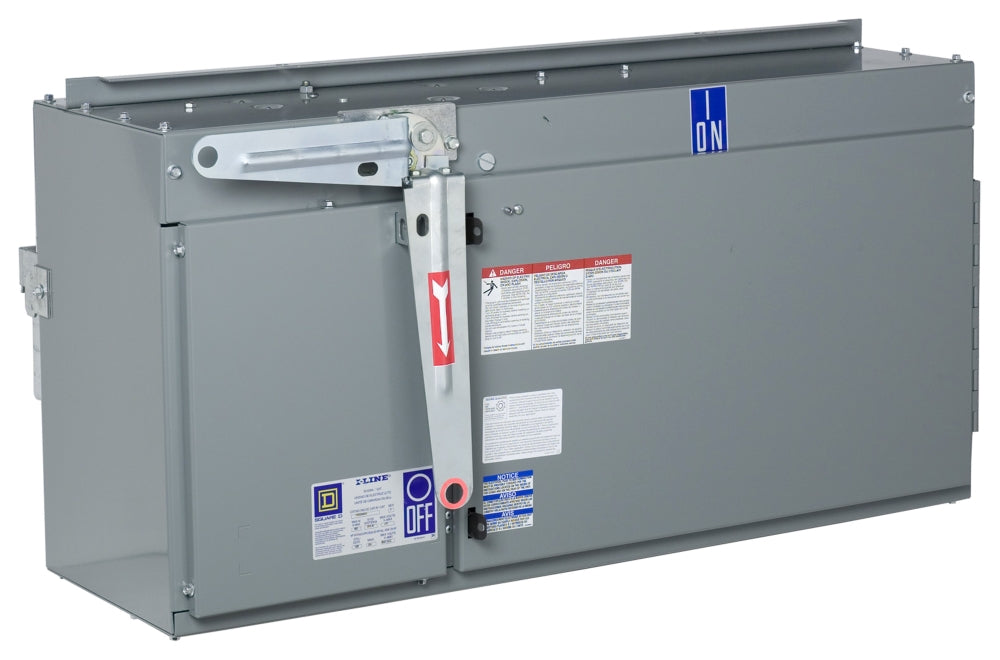

PBQ3640GRAW - Square D 400A 600V 3-Pole Fusible Bus Plug for I-Line Busway

PBQ3640GRAW

PBQ3640GRAW is a fusible bus plug designed for use with Square D I-Line busway systems, providing reliable power distribution for industrial applications.This 400A, 600V, 3-pole fusible bus plug features a plug-in connection and is compatible with I-Line I and I-Line II aluminum and copper busway systems. It accepts Class H, K, J, and R fuses for flexible overcurrent protection. The unit includes an integral ground and is suitable for 3-wire plus ground installations.

• Amperage: 400A
• Voltage: 600V max
• Poles: 3
• Mounting Type: Plug-in
• Interrupt Rating: 200kA at 480V
• Series: I-Line
• Fusibility: Fusible
• Fuse Types: Class H, K, J, R
• Wire Configuration: 3-wire plus ground
• Compatible Busway: I-Line I and I-Line II

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PBQ3640GRAW
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : I-Line
• Type : PBQ
• Voltage : 600
• Amperage : 400
• Phase : 3
• AIC rating : 200kA@480V
• Fuse Class : H,K,R
• Wire : 3

Product Data

• UPC : 785901711124
• GTIN : 00785901711124
• Country of Origin : Mexico
• Dimensions : 20.9 in (532 mm) x 42.008 in (1067 mm) x 13.7 in (349 mm) (Height x Width x Depth)
• Weight : 175
