Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Fusible
Description
PBQ3640GR

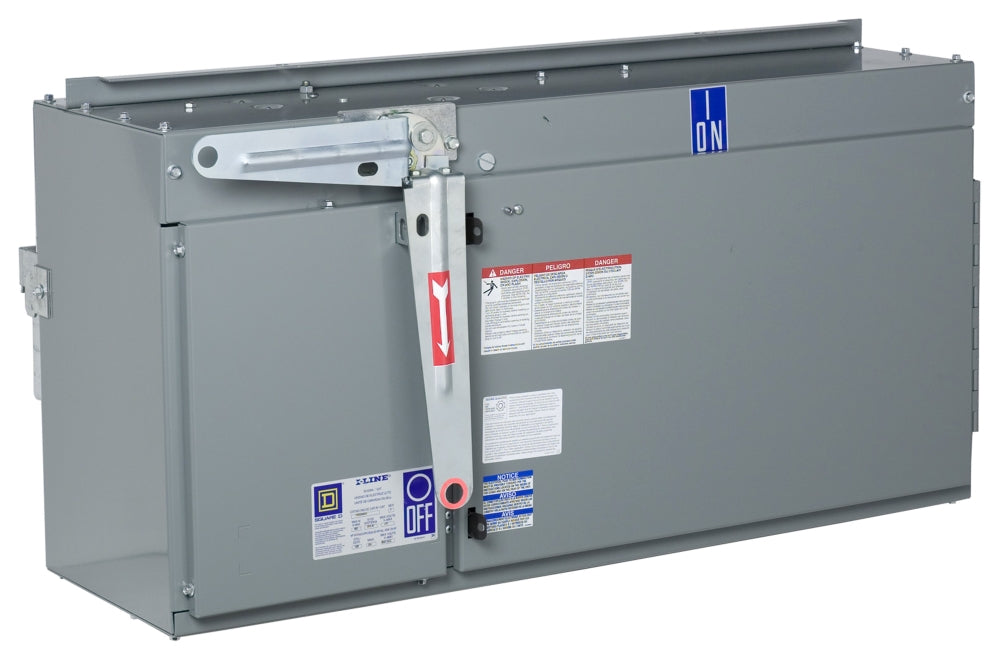

PBQ3640GR is a Square D I-Line fusible plug-in unit designed for busway distribution systems, rated 400A at 600VAC maximum with 3-pole, 3-fuse plus ground configuration. This fusible bus plug accepts Class H, K, J, and R fuses and features a 200 kA interrupt rating at 480V, making it suitable for continuous 100% current flow applications in industrial and commercial power distribution. The unit includes hook swing mounting for secure installation on I-Line aluminum and copper busway systems.
- Amperage: 400A
- Voltage: 600VAC maximum
- Poles: 3-pole
- Wires: 3-wire plus ground
- Fuse Type: Fusible, accepts Class H, K, J, R
- Interrupt Rating: 200 kA at 480V
- Mounting: Hook swing
- Series: I-Line II
- Enclosure Type: NEMA 1
- Frame: FS
- Manufacturer: Schneider Electric
- Country of Origin: Mexico
Specifications
- Part Number: PBQ3640GR
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PBQ
- Voltage : 600
- Amperage : 400
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : H, K, R
- Wire : 3
Product Data
- UPC : 785901409021
- GTIN : 00785901409021
- Country of Origin : Mexico
- Dimensions : 20.9 in (532 mm) x 42.008 in (1067 mm) x 13.7 in (349 mm) (Height x Width x Depth)
- Weight : 195.001
- Certification : UL LISTED FILE E22182-CSA C22.2 NO 27
