PAF2036 - Square D 2000 Amp 600V 3 Pole Bolt-On P-Frame Thermal Magnetic Molded Case Circuit Breaker

PAF2036

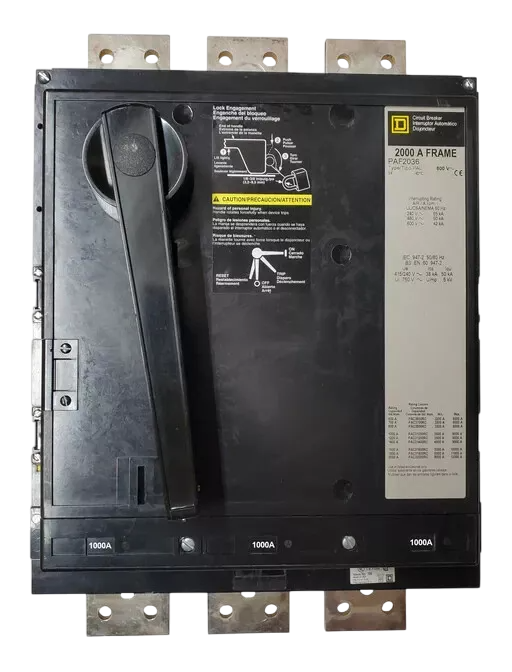

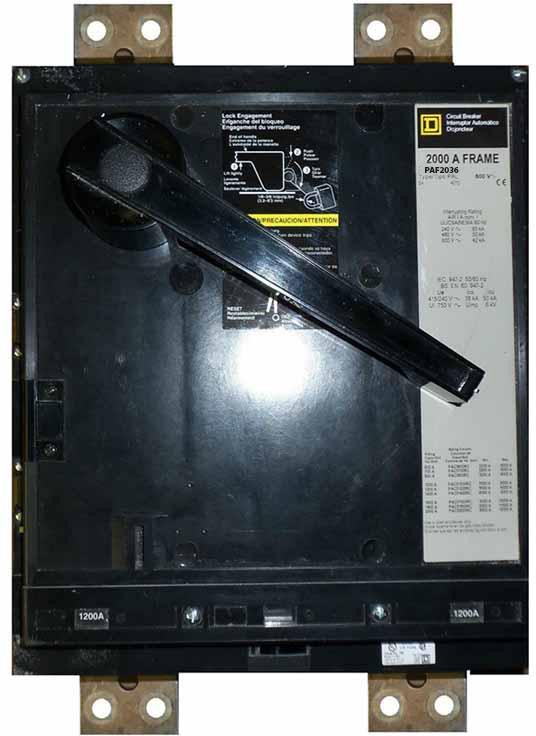

PAF2036 is a Square D 3 pole, 2000 amp, 600 volt, bolt-on, thermal magnetic molded case circuit breaker designed for robust electrical protection.

This P-frame breaker features a 2000 amp frame capacity, with actual amperage set by rating columns (commonly 1000A or 1600A configurations available). It offers a 42kA interrupting rating at 600V, thermal magnetic trip unit for reliable overload and short-circuit protection, and is manually operated. The PAF2036 is commonly used as a main switchboard breaker and is known for its durability in industrial applications.

Key Specifications
• Part Number: PAF2036
• Manufacturer: Square D
• Amperage: 2000A frame (actual rating set by columns, e.g., 1000A, 1600A)
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Bolt-on
• Interrupt Rating: 42kA @ 600V
• Series/Frame: P-frame
• Trip Unit: Thermal magnetic
• Certifications: UL listed (assumed, not explicitly stated in sources)
• Connection: Terminal lug
• Operation: Manual
• Status: Obsolete, no longer in production

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PAF2036
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : PAF Series
• Type : PAF
• Voltage : 600
• Amperage : 2000
• Phase : 3
• Poles : 3
• AIC rating : 42kA@600V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : P Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901773443
• Weight : 73
