2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
PAF1636-1000A

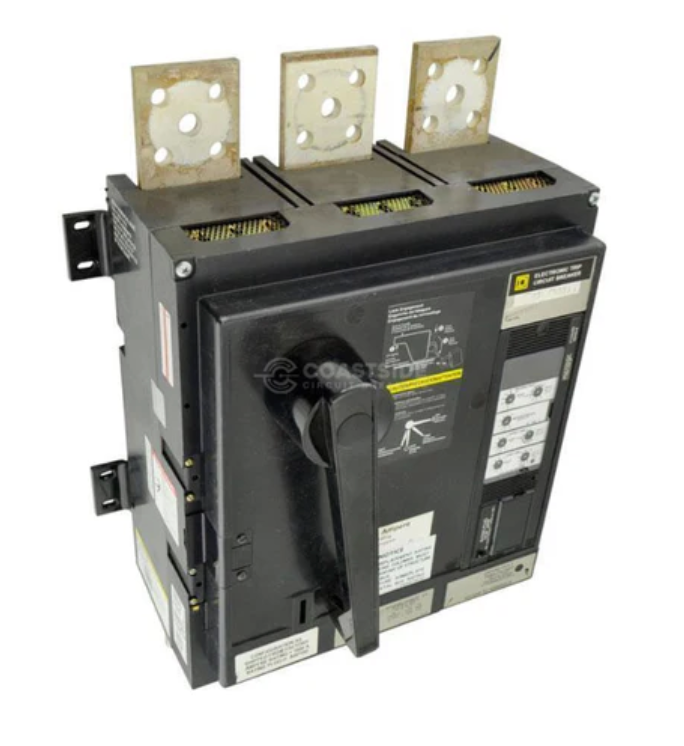

PAF1636-1000A is a 3 pole, 600 Volt, 1000 amp rated molded case circuit breaker from Square D, designed for reliable power distribution and protection in industrial and commercial applications.This Square D PAF1636-1000A circuit breaker features a P-Frame design, 3 pole configuration, and is rated for 1000 amps at 600 volts AC. It is a panel mount molded case breaker with an interrupt rating of 42kA at 600V, providing high short-circuit protection. The breaker is equipped with an electronic tripping mechanism and is suitable for use in main panel disconnects and critical load circuits.
- Part Number: PAF1636-1000A
- Manufacturer: Square D
- Amperage: 1000A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Panel Mount
- Interrupt Rating: 42kA @ 600V
- Frame: P-Frame
- Tripping Mechanism: Electronic
- Series: PAF
- Wire Size: 3/0 AWG
- Certifications: UL Listed
Specifications
- Part Number: PAF1636-1000A
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : PAF Series
- Type : PAF
- Voltage : 600
- Amperage : 1000
- Phase : 3
- Poles : 3
- AIC rating : 42kA@600V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : P Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 73
