Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
NGH308036EC

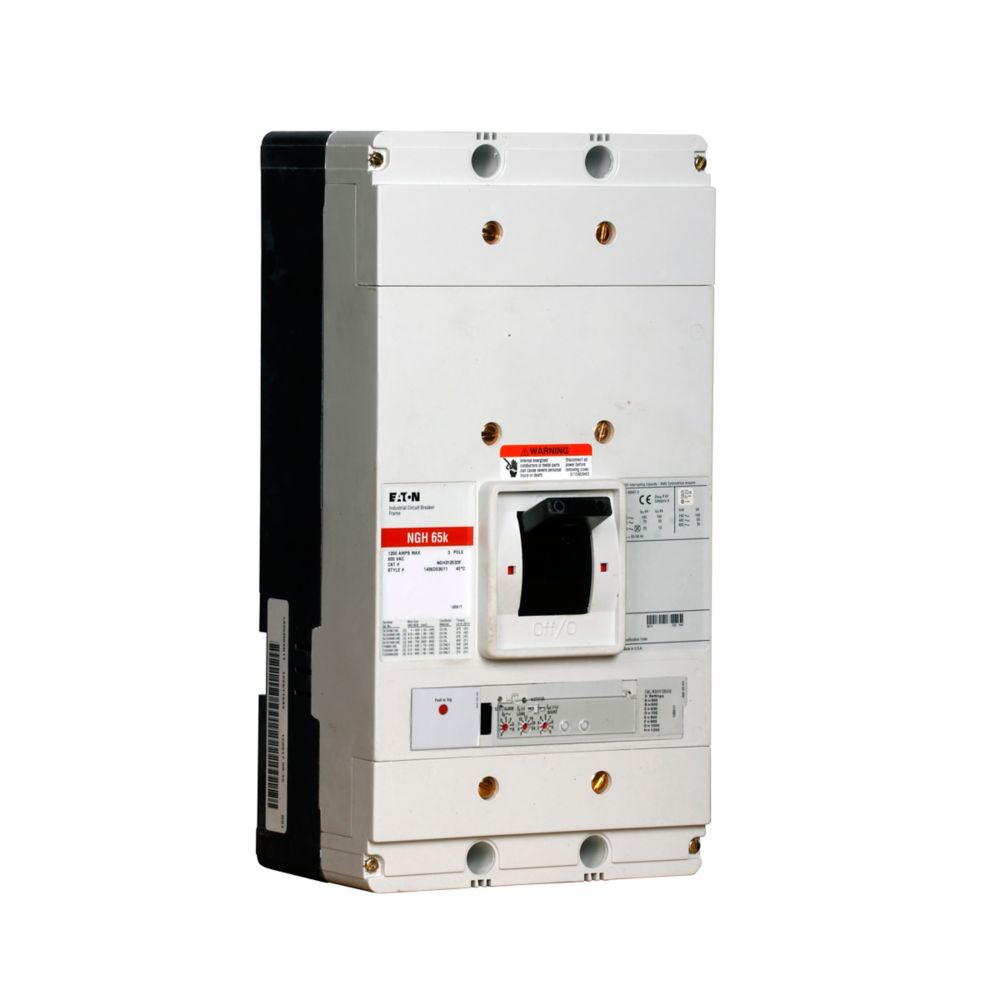

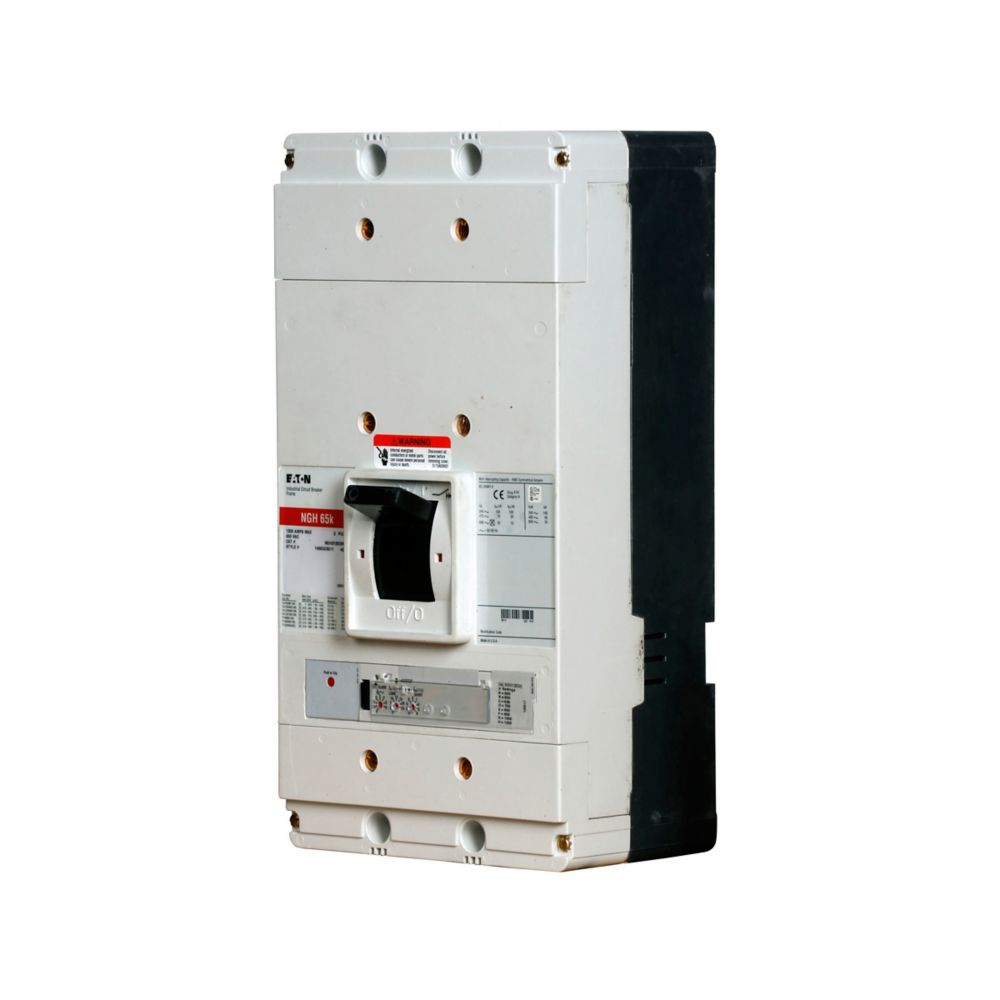

NGH308036EC is a Cutler Hammer Series G molded case circuit breaker designed for protection of three-phase electrical systems. This electronic LSIG breaker provides solid state protection with adjustable long-time, short-time, instantaneous, and ground fault functions for demanding distribution applications. Key Specifications
- Part Number: NGH308036EC
- Manufacturer: Cutler Hammer
- Voltage: 480 V
- Amperage: 800 A
- Phase: 3
- Poles: 3
- Interrupt Rating: 65 kA
- Connection: Bolt-On
- Frame Size: NGH
- Breaker Type: Series G molded case, electronic LSIG
- Protection: Solid state LSIG
- Temperature Rating: -20 to 40 C
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: NGH308036EC
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series G
- Type : NGH
- Voltage : 480 V
- Amperage : 800 A
- Phase : 3
- Poles : 3
- AIC rating : 65 kA
- Connection : Bolt-On
- Functions : LSIG - Long-Time, Short-Time, Instantaneous, Ground Fault
- Frame Size : NGH
- Temp Rating : -20 to 40 C
- Breaker Type : Series G molded case, electronic LSIG
- Protection : Solid state LSIG
Product Data
- UPC : 786685574332
- GTIN : 00786685574332
- Country of Origin : United States
- Dimensions : 6 in x 9 in x 9 in (Length/Depth x Height x Width)
- Weight : 47
- Certification : UL Listed,CSA Certified,HACR Rated
