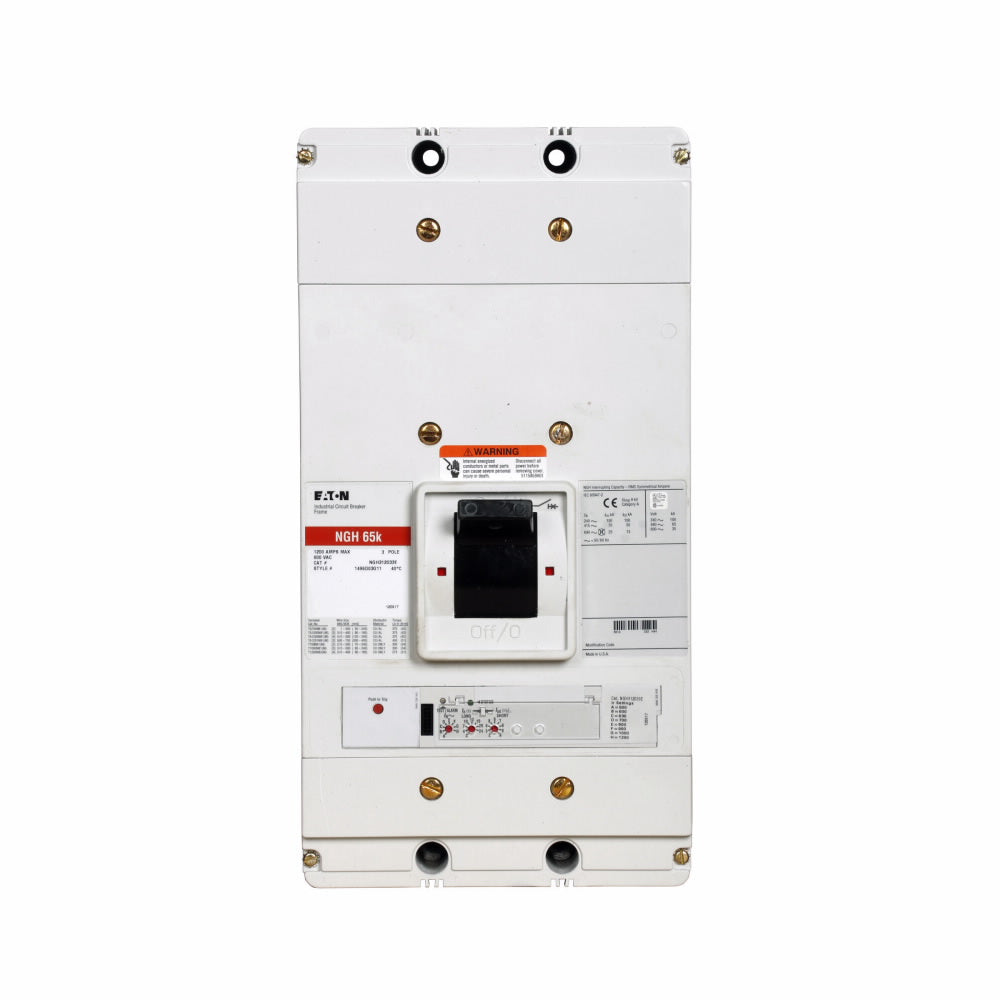

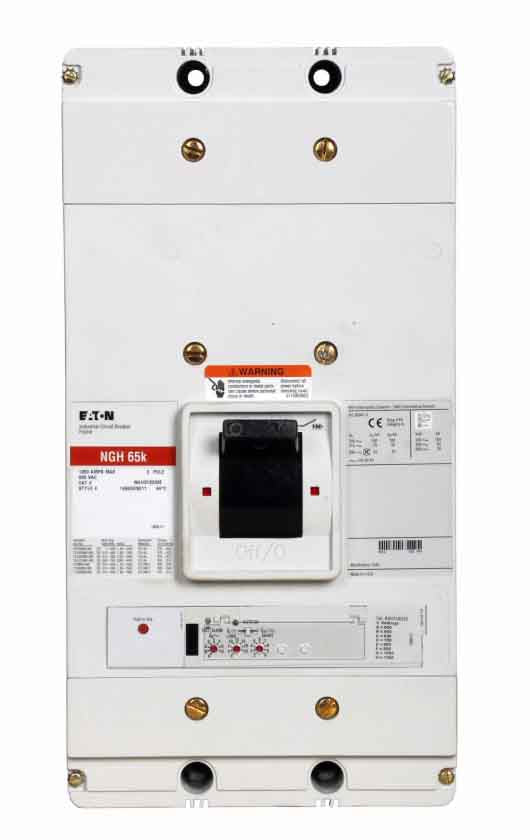

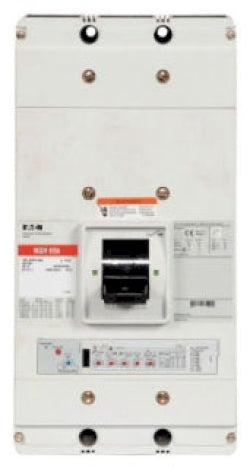

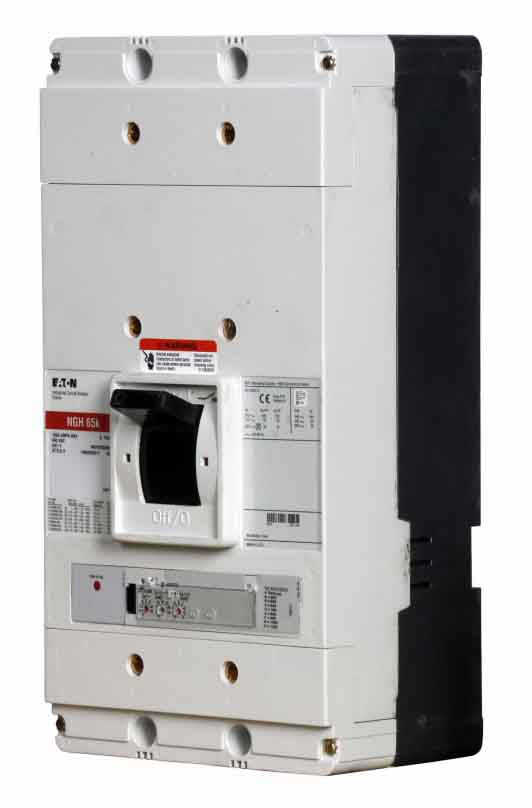

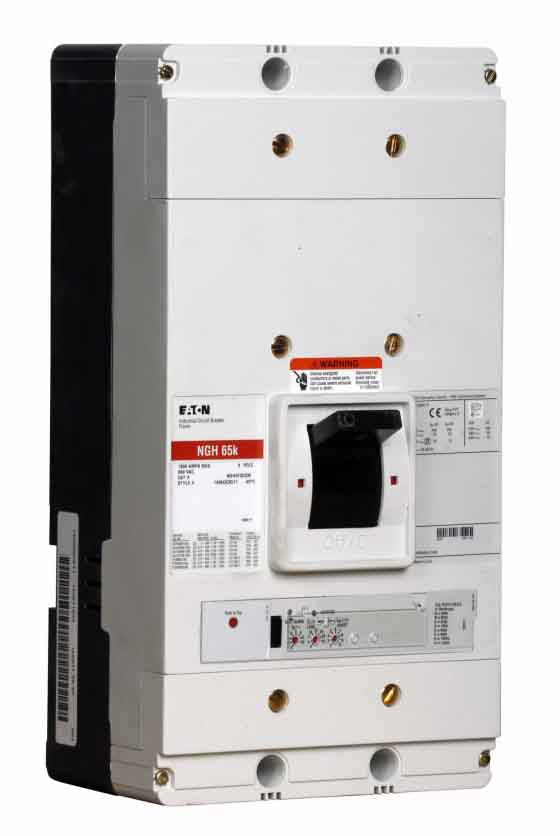

NGH308032E - Eaton Cutler-Hammer Circuit Breaker 800 A 480 Vac 3P

NGH308032E

NGH308032E is an Eaton Cutler-Hammer Series G electronic molded case circuit breaker designed for high-capacity overcurrent protection in industrial power distribution systems.This NG-frame breaker features a three-pole configuration with an 800 A rating and is suitable for applications up to 480 Vac with high interrupting capacity verified by the manufacturer.Key Specifications

• Part Number: NGH308032E
• Manufacturer: Cutler Hammer
• Voltage: 480 Vac
• Amperage: 800 A
• Phase: 3
• Poles: 3
• AIC Rating: 65 kA@480 Vac, 100 kA@240 Vac
• Connection: Bolt-On
• Frame Size: NG-frame Series G
• Breaker Type: NG electronic molded case
• Protection: Solid-state electronic LSI trip
• Hz: 50/60 Hz
• Trip Type: Electronic LSI (Digitrip 310 RMS)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: NGH308032E
• Manufacturer : Eaton Cutler-Hammer
• Brand : Eaton Cutler-Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : NGH
• Voltage : 480 Vac
• Amperage : 800 A
• Phase : 3
• Poles : 3
• AIC rating : 65 kA@480 Vac; 100 kA@240 Vac
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : NG-frame Series G
• Breaker Type : NG electronic molded case
• Hz : 50/60 Hz
• Protection : Solid-state electronic LSI trip
• Trip Type : Electronic LSI (Digitrip 310 RMS)
• Rated Current : 800 A

Product Data

• UPC : 786685379142
• GTIN : 00786685379142
• Country of Origin : United States
• Dimensions : 6 in x 9 in x 9 in (Length/Depth x Height x Width)
• Weight : 47
• Certification : CSA Certified,UL Listed,HACR Rated
