Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
NGH308033E

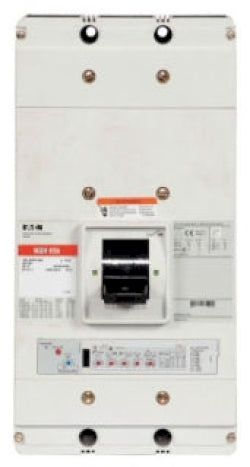

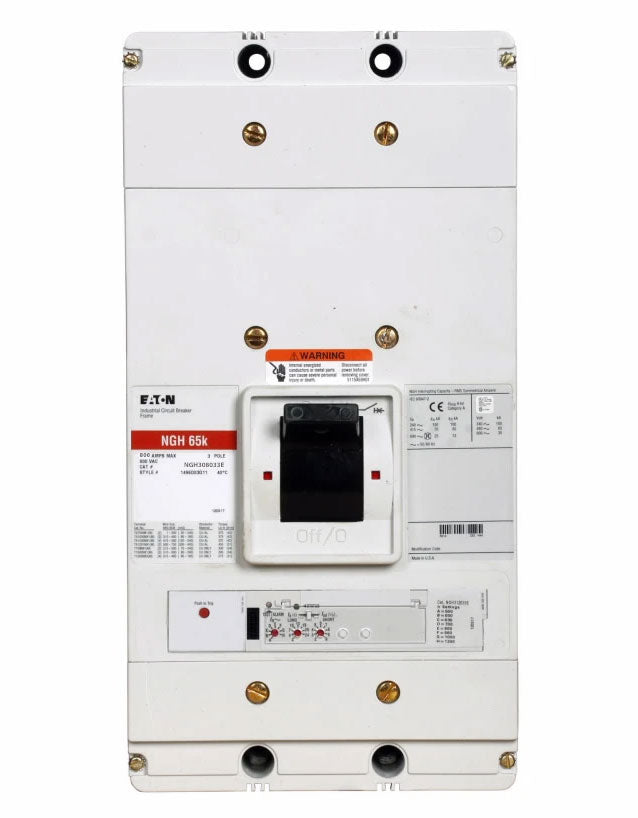

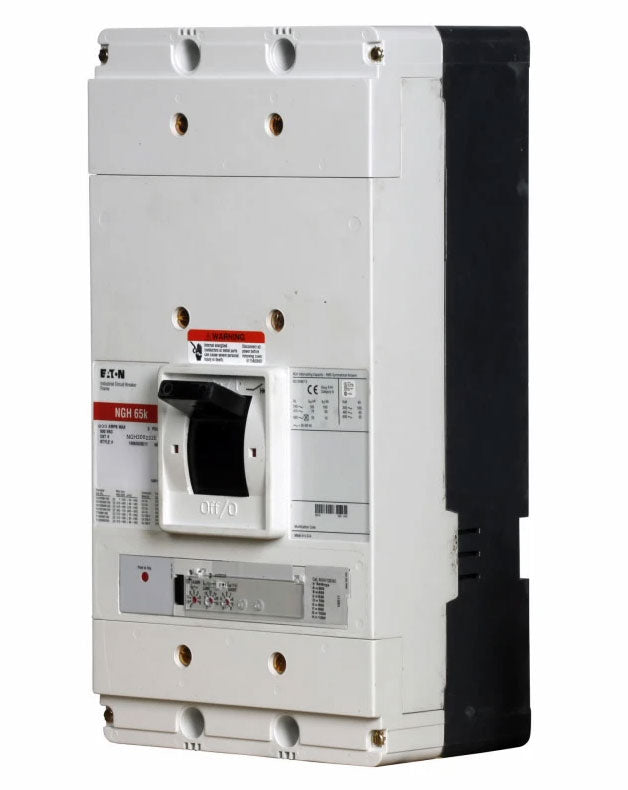

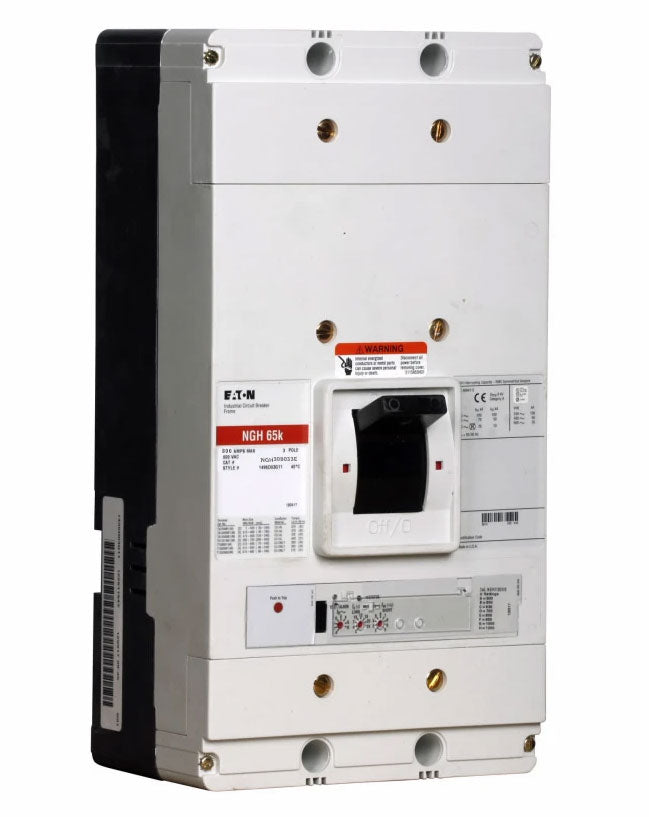

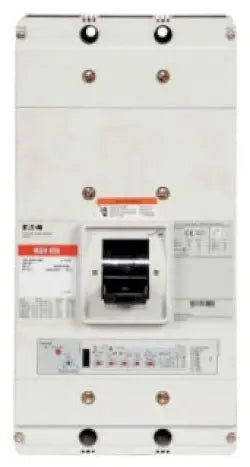

NGH308033E is a Cutler Hammer Eaton Series G molded case circuit breaker. This NG-frame breaker is an electronic, three-pole unit with Digitrip 310 RMS LS trip functions and high interrupting capacity for overcurrent protection. Key Specifications
- Part Number: NGH308033E
- Manufacturer: Cutler Hammer
- Amperage: 800 A
- Voltage: 480 V
- Phase: 3
- Poles: 3
- Interrupt Rating: 65 kA
- Connection: Bolt-On
- Type: NG
- Functions: LS - Long-Time and Short-Time
- Frame Size: NG-frame
- Trip Type: T167
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: NGH308033E
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series G
- Type : NG
- Voltage : 480 V
- Amperage : 800 A
- Phase : 3
- Poles : 3
- AIC rating : 65 kA
- Connection : Bolt-On
- Functions : LS - Long-Time and Short-Time
- Frame Size : NG-frame
- Protection : Solid State
- Trip Type : T167
Product Data
- UPC : 786685379166
- GTIN : 00786685379166
- Country of Origin : United States
- Dimensions : 6 in x 9 in x 9 in (Length/Depth x Height x Width)
- Weight : 47 lb
- Certification : CSA Certified,UL Listed,HACR Rated
