NGH308036E - Cutler Hammer Circuit Breaker 800A 480 V 3P

Name: NGH308036E - Cutler Hammer Circuit Breaker 800A 480 V 3P
Brand: Cutler Hammer
SKU: NGH308036E-New
Price: 8710.85 USD
Availability: InStock

Save $28,280.62

SKU: NGH308036E-New

Condition: New

Variant

Price:

$8,710.85 $36,991.47

Stock:

Low inventory, please call for stock check
Factory Lead Time: 69 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.

Quantity:

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Enter your ZIP code:

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Manufacturer:Cutler Hammer
Sub-Category:Molded Case

NGH308036E - Cutler Hammer Bolt-On 800 Amp 3 Pole Circuit Breaker - Essential Electric Supply

NGH308036E - Schneider Electric (Square D) 3-Pole 36 A 600 V AC I-Line PowerPact NG-Frame Circuit Breaker - Essential Electric Supply

Roll over image to zoom in Click on image to zoom Images are for reference only

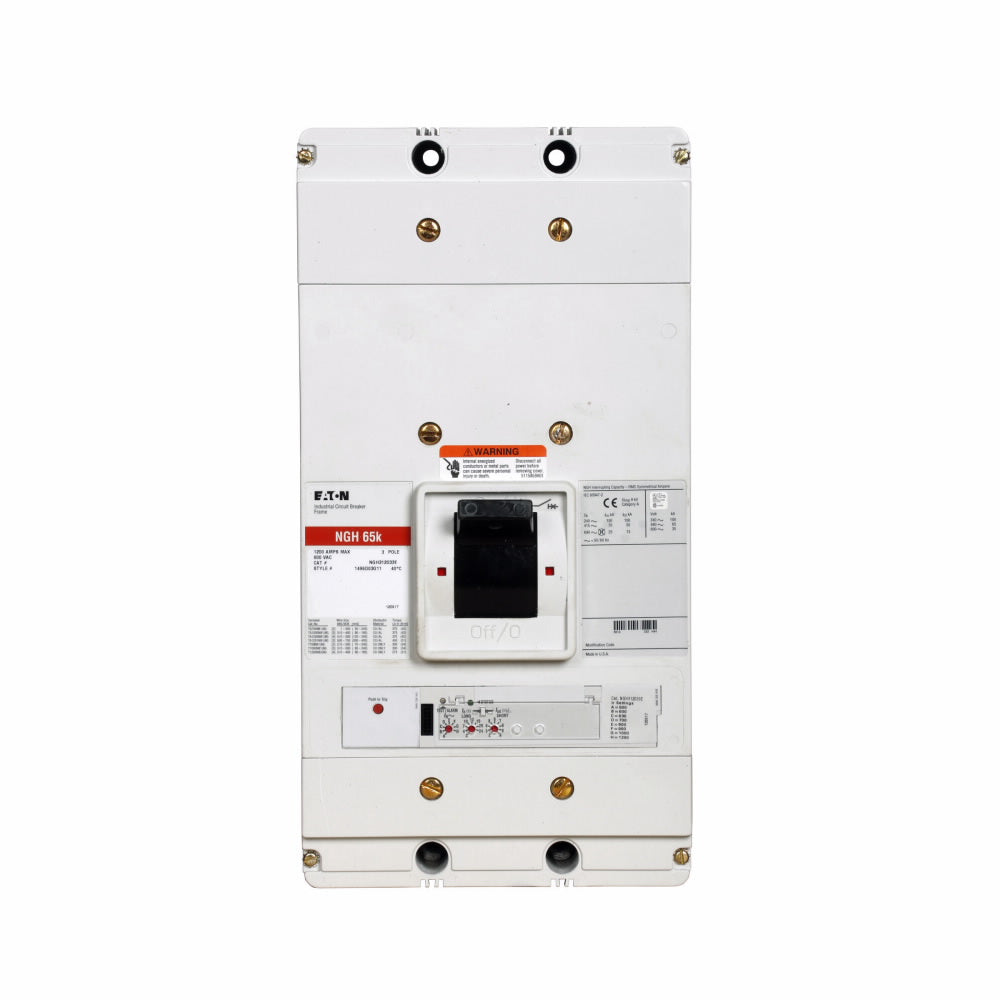

NGH308036E

NGH308036E is a Cutler Hammer Series G electronic molded case circuit breaker designed for high-capacity power distribution protection. This NG-frame breaker features an 800 A rating, three-pole configuration, and is suitable for systems up to 480 V AC with high interrupting capacity and Digitrip 310 LSIG electronic trip functionality for advanced protection and coordination. Key Specifications

Part Number: NGH308036E
Manufacturer: Cutler Hammer
Family: Series G
Type: Electronic molded case circuit breaker
Voltage: 480 V
Amperage: 800 A
Phase: 3
Poles: 3
AIC Rating: 65 kA
Frame Size: NG-frame
Trip Type: Electronic LSIG Digitrip 310
Hz: 50/60 Hz
Rated Current: 800 A

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

Part Number: NGH308036E
Manufacturer : Cutler Hammer
Brand : Cutler Hammer
Category : Circuit Breaker
Item Subcategory : Molded Case
Family : Series G
Type : Electronic molded case circuit breaker
Voltage : 480 V
Amperage : 800 A
Phase : 3
Poles : 3
AIC rating : 65 kA
Connection : Bolt-On
Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
Frame Size : NG-frame
Hz : 50 Hz
Protection : Solid State
Trip Type : Electronic LSIG Digitrip 310
Rated Current : 800 A

Product Data

UPC : 786685379203
GTIN : 00786685379203
Country of Origin : United States
Dimensions : 6 in x 9 in x 9 in (Length/Depth x Height x Width)
Weight : 47
Certification : CSA Certified,UL Listed,HACR Rated

Accesories

Part	Manufacture	Sub Category
SNT5LP18K	Eaton	Shunt Trip
1494D44G10	Cutler Hammer	Auxiliary

Related Products

Part	Manufacture	Voltage	Amperage	Phase	AIC	Connection	Poles	Functions
ngh308032e	Eaton Cutler-Hammer	600V	800	3	65kA@480V	Bolt-On	3	Long Time and Instantaneous Trip
ngh308033ec	Cutler Hammer	600V	800	3	65kA@480V	Bolt-On	3	LS - Long-Time and Short-Time
ngh308032ec	Eaton Cutler-Hammer	600V	800	3	65kA@480V	Bolt-On	3	LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
ngh308033e	Cutler Hammer	600V	800	3	65kA@480V	Bolt-On	3	LS - Long-Time and Short-Time
ngh308035e	Cutler Hammer	600V	800	3	65kA@480V	Bolt-On	3	LSG - Long-Time, Short-Time and Ground Fault
