Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NGG2B080L

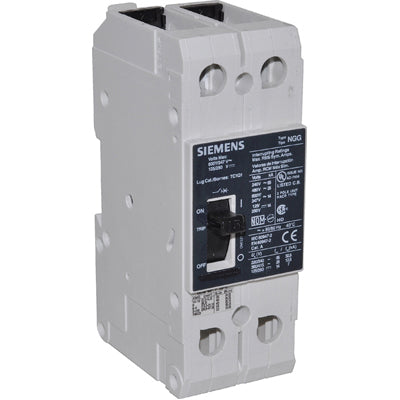

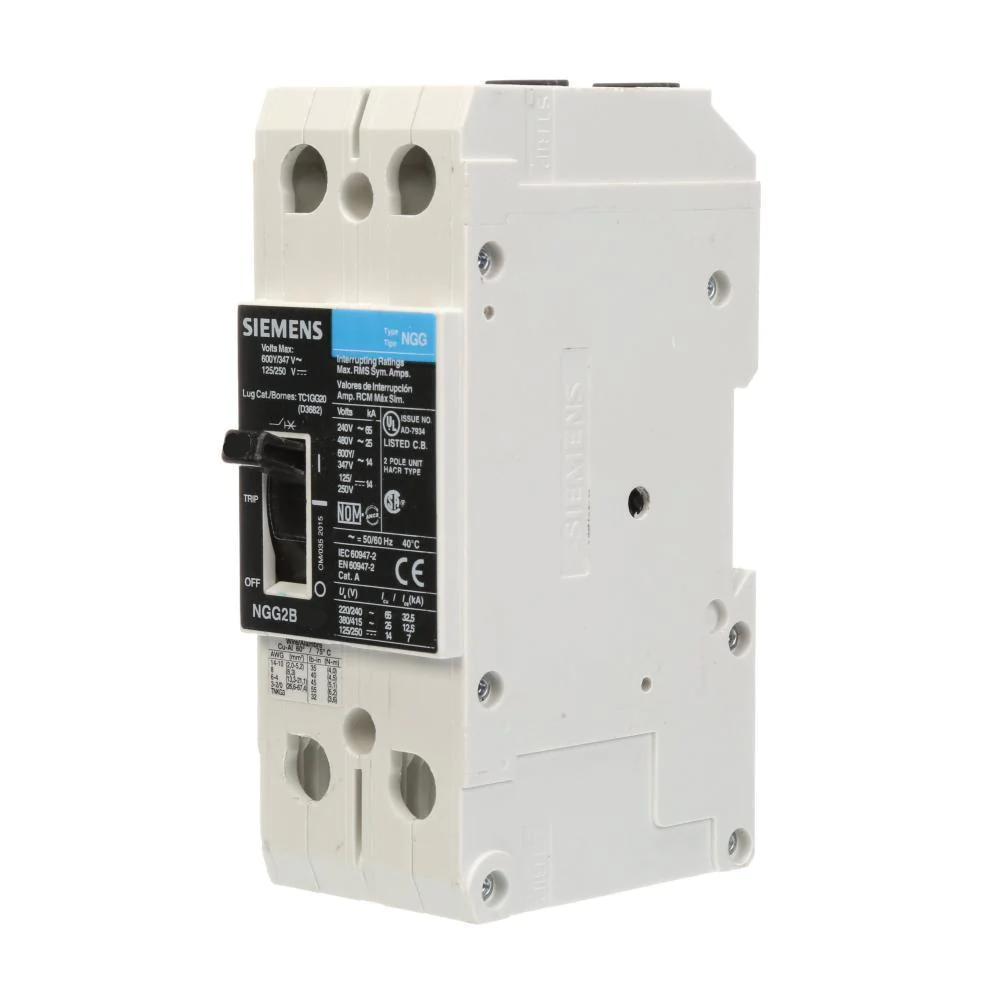

NGG2B080L is a Siemens 80A 600V 2 pole molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications. This NGG frame breaker features a thermal magnetic trip unit and is suitable for feed-thru mounting with line and load side lug terminals. It supports both copper and aluminum wiring and is rated for reverse fed applications. The NGG2B080L offers robust performance with a high interrupting rating and is designed for use in a variety of electrical distribution systems. Its compact design and versatile mounting options make it ideal for panel upgrades and new installations.
- Part Number: NGG2B080L
- Manufacturer: Siemens
- Amperage: 80A
- Voltage: 600V AC
- Poles: 2
- Frame Type: NGG
- Mounting Type: Feed-Thru
- Interrupt Rating: 25kAIC @ 480V
- Connection: Line & Load Side Lug Terminals
- Trip Unit: Thermal Magnetic
- Wire Size: #8 to 1/0 AWG (Copper), #8 to 2/0 AWG (Aluminum)
- Phase: 1
Specifications
- Part Number: NGG2B080L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : NGG
- Voltage : 600
- Amperage : 80
- Phase : 1
- Poles : 2
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Frame Size : GG Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643413733
- GTIN : 00783643413733
- Country of Origin : Mexico
- Weight : 1.956
- Certification : UL
- Wire Size : 8 to 1/0 AWS, CU/AL
