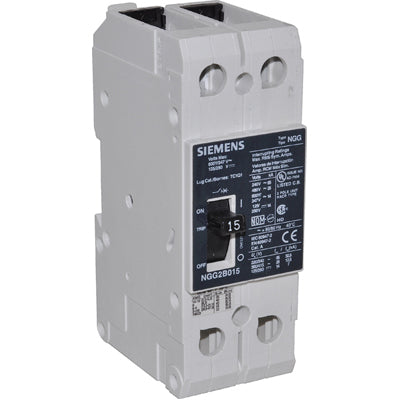

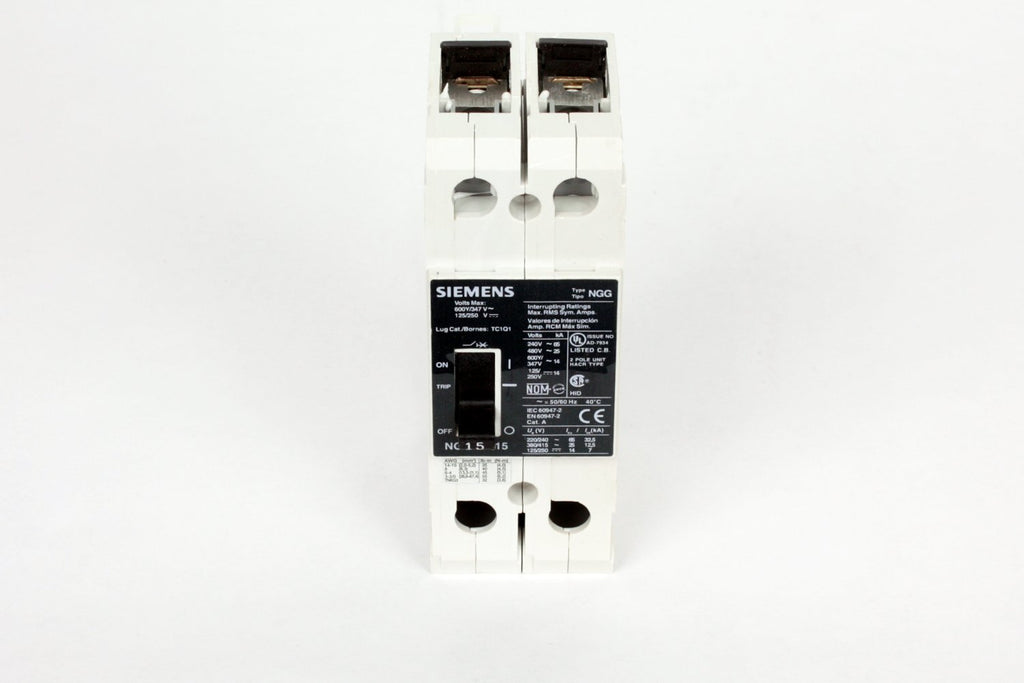

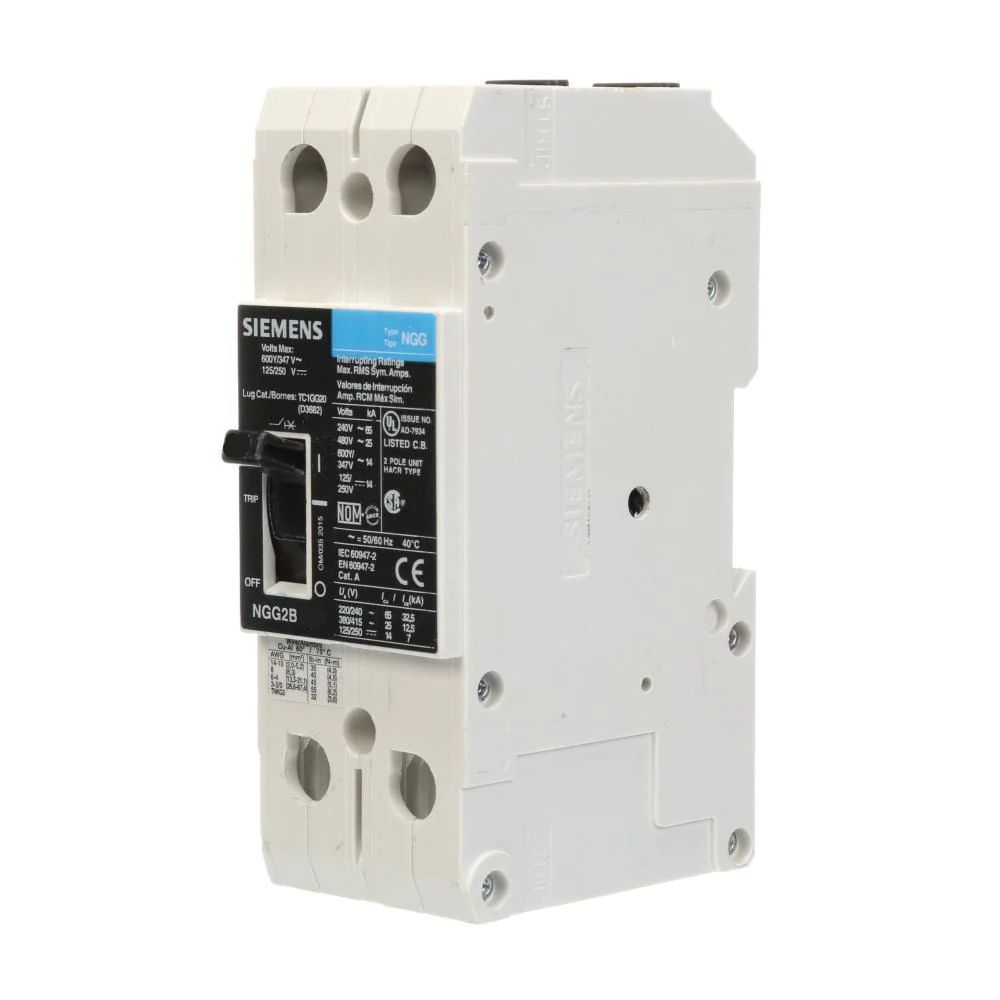

NGG2B015L - Siemens 15A 2 Pole Molded Case Circuit Breaker, 600V AC, NGG Frame, 25kA@480V

NGG2B015L

NGG2B015L is a Siemens 2 pole molded case circuit breaker designed for reliable protection in commercial and industrial applications. This breaker features a 15A current rating, 600V AC maximum voltage, and is built on the NGG frame with a thermal-magnetic trip unit for dependable circuit interruption. Suitable for reverse feed applications, it can be mounted with screws or DIN rail and is UL listed for safety and compliance. The NGG2B015L offers a robust interrupting capacity of 25kA at 480V, making it ideal for use in systems requiring high fault current protection. Its compact design and versatile mounting options provide flexibility for a wide range of electrical installations.

• Part Number: NGG2B015L
• Manufacturer: Siemens
• Series/Frame: NGG
• Number of Poles: 2
• Rated Current: 15A
• Maximum Voltage: 600V AC
• Interrupting Rating: 25kA @ 480V
• Mounting Type: Screw or DIN Rail
• Terminal Type: Line and Load Side Lug
• Trip Unit: Thermal-Magnetic
• Certifications: UL Listed, UL489
• Application: Suitable for reverse feed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: NGG2B015L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : VL Series
• Type : NGG
• Voltage : 600
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 25kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : GG Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 783643413634
• GTIN : 00783643413634
• Country of Origin : Mexico
• Weight : 1.956
• Wire Size : 14 - 10 AWS (CU/AL)
