NGG2B020L - Siemens 20A 600V 2 Pole NGG Frame Circuit Breaker Feed-Thru Mounting Thermal Magnetic

NGG2B020L

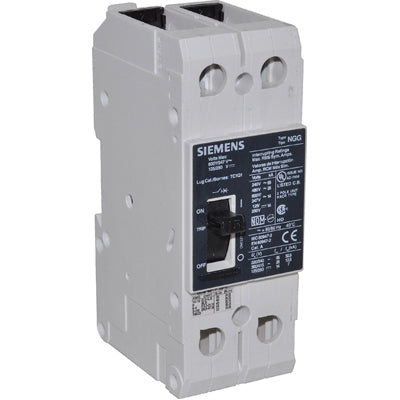

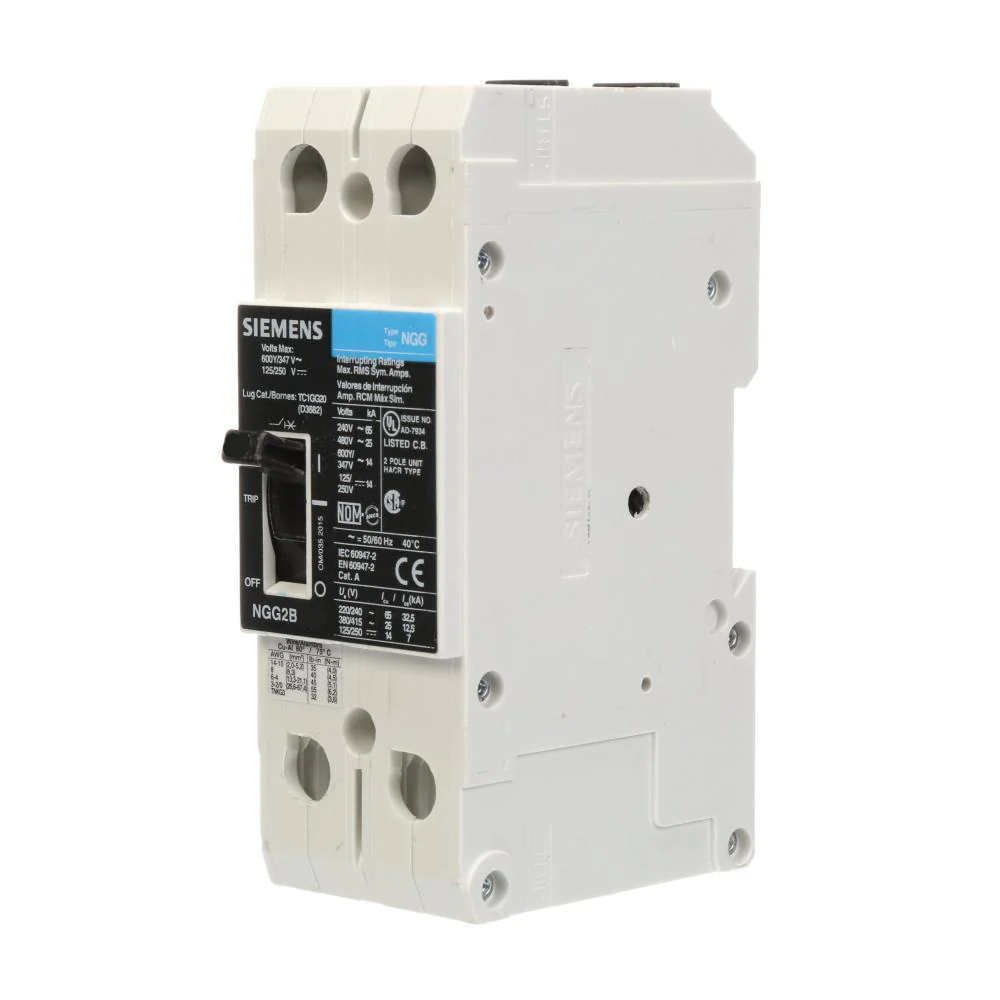

NGG2B020L is a Siemens 20 Amp, 600 Volt, 2 Pole circuit breaker with NGG frame and feed-thru mounting designed for reliable circuit protection.NGG2B020L features a thermal magnetic trip unit and is rated for interrupting capacities of 100,000 AIC at 120V AC, 25,000 AIC at 277V AC, and 14,000 AIC at 347V AC. It supports wire sizes from #12 to #6 AWG aluminum and #14 to #6 AWG copper. The breaker measures 2 inches wide, 5.4 inches high, and 2.9 inches deep.

Key Specifications
• Amperage: 20 Amps
• Voltage Rating: 600 Volts AC
• Number of Poles: 2
• Frame Type: NGG
• Mounting Type: Feed-Thru
• Interrupting Rating: 100,000 AIC @ 120V AC
• Interrupting Rating: 25,000 AIC @ 277V AC
• Interrupting Rating: 14,000 AIC @ 347V AC
• Trip Unit: Thermal Magnetic
• Wire Size: #12 to #6 AWG Aluminum, #14 to #6 AWG Copper
• Dimensions: 2" W x 5.4" H x 2.9" D
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: NGG2B020L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : VL Series
• Type : NGG
• Voltage : 600
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 25kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : GG Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 783643413641
• GTIN : 00783643413641
• Country of Origin : Mexico
• Weight : 1.982
• Certification : UL
• Wire Size : 14 - 10 AWS (CU/AL)
