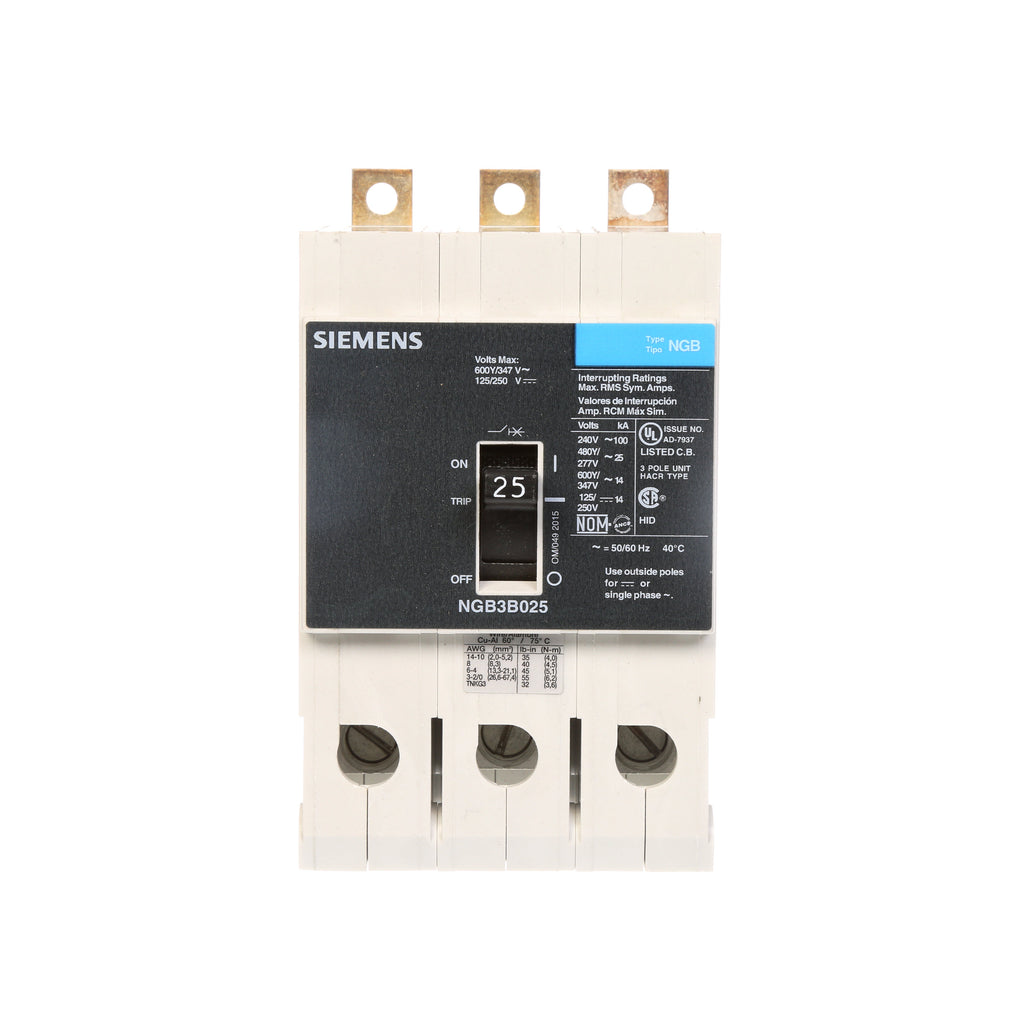

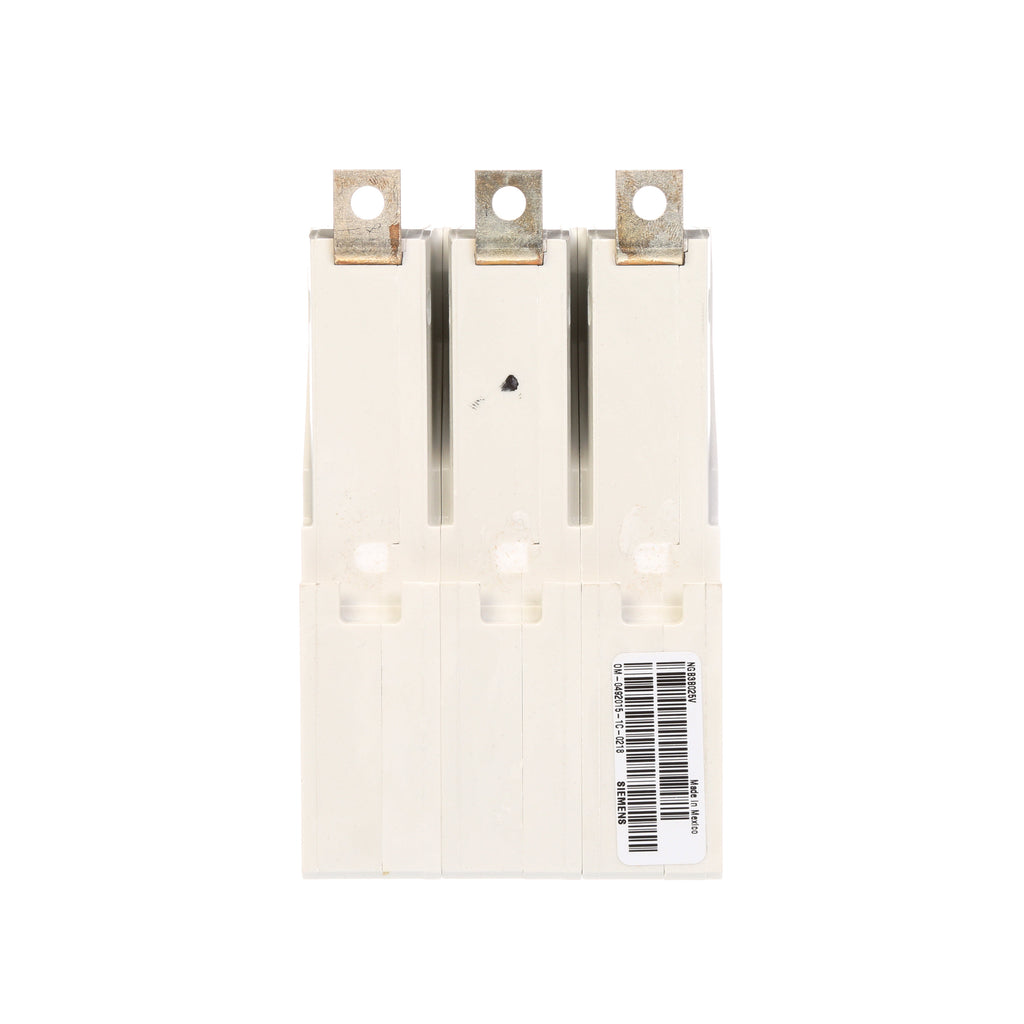

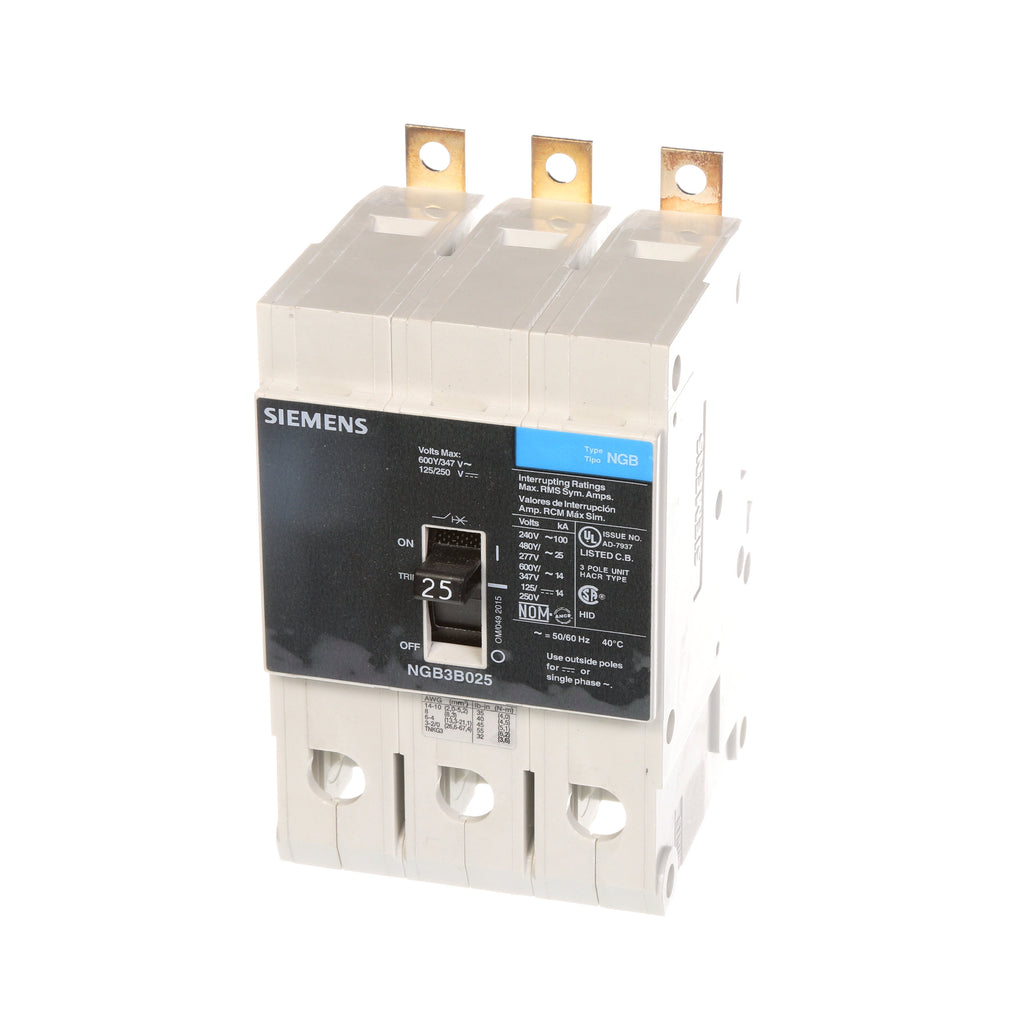

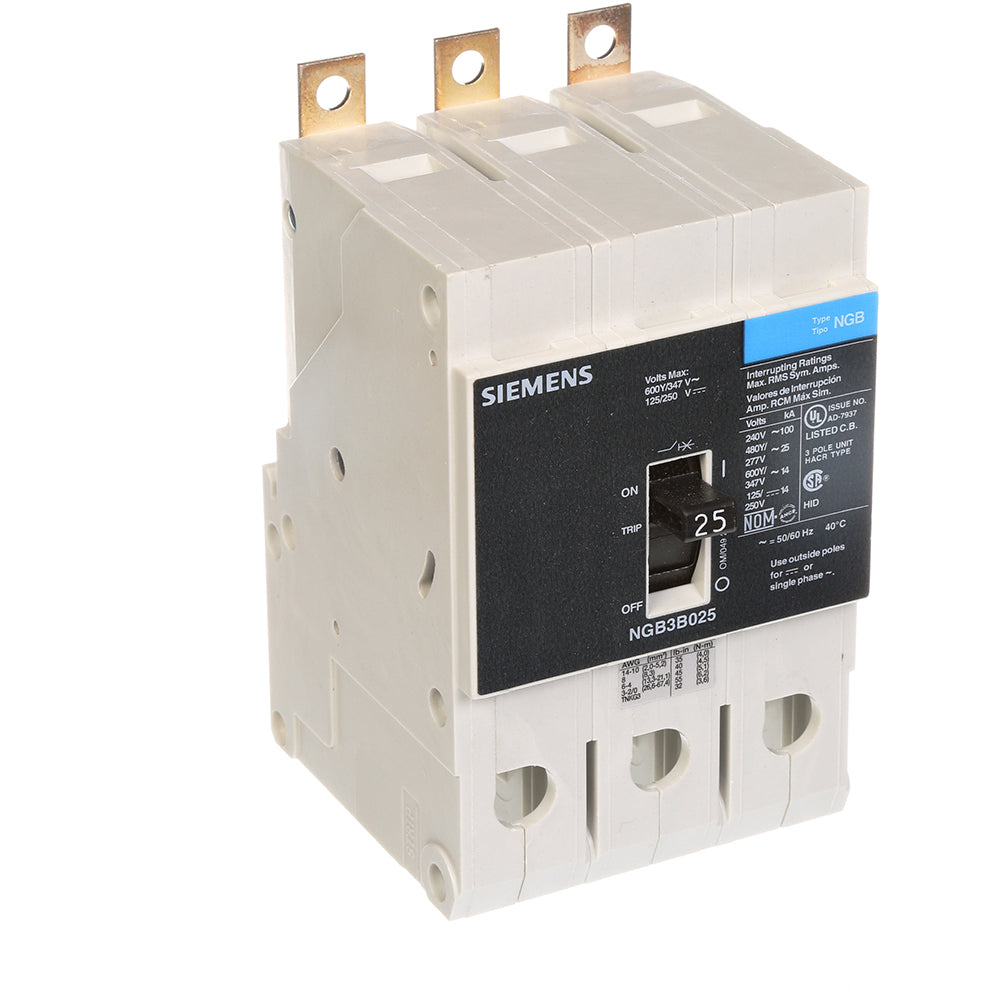

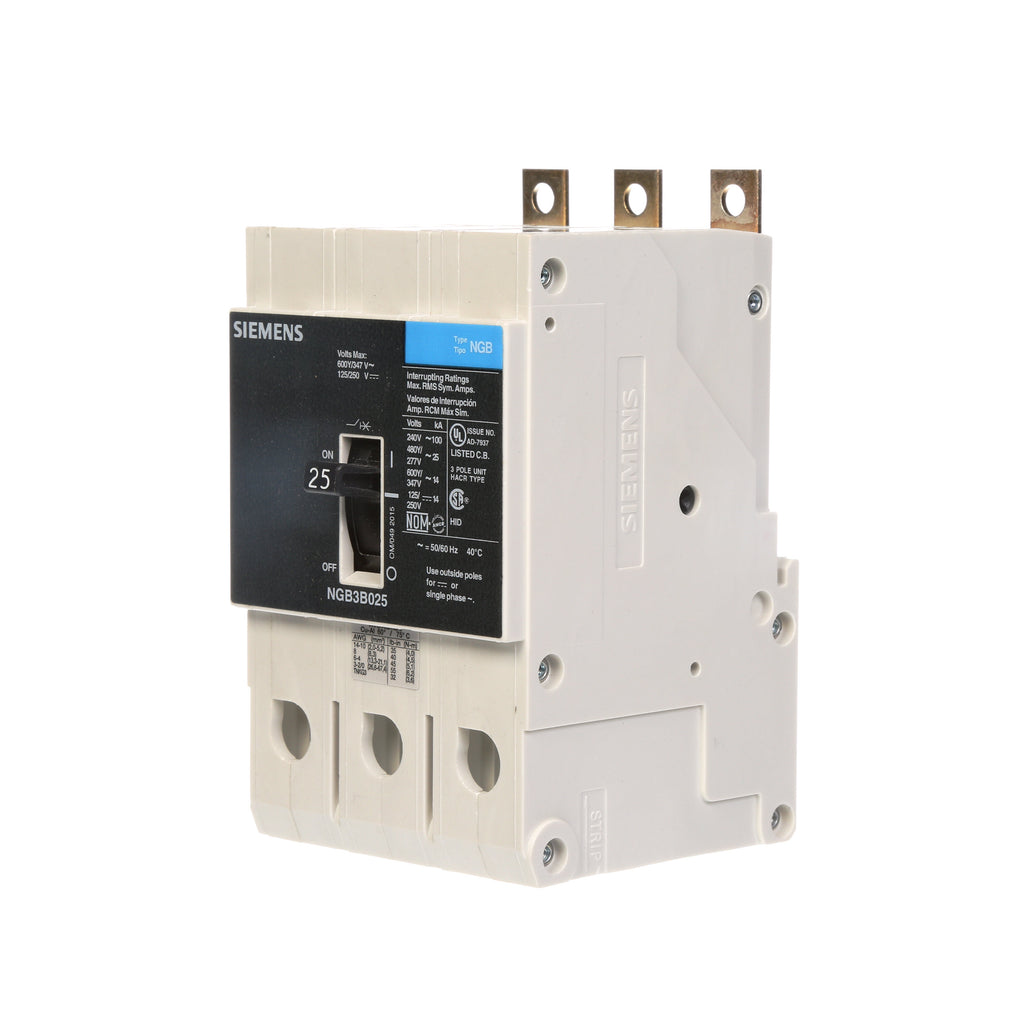

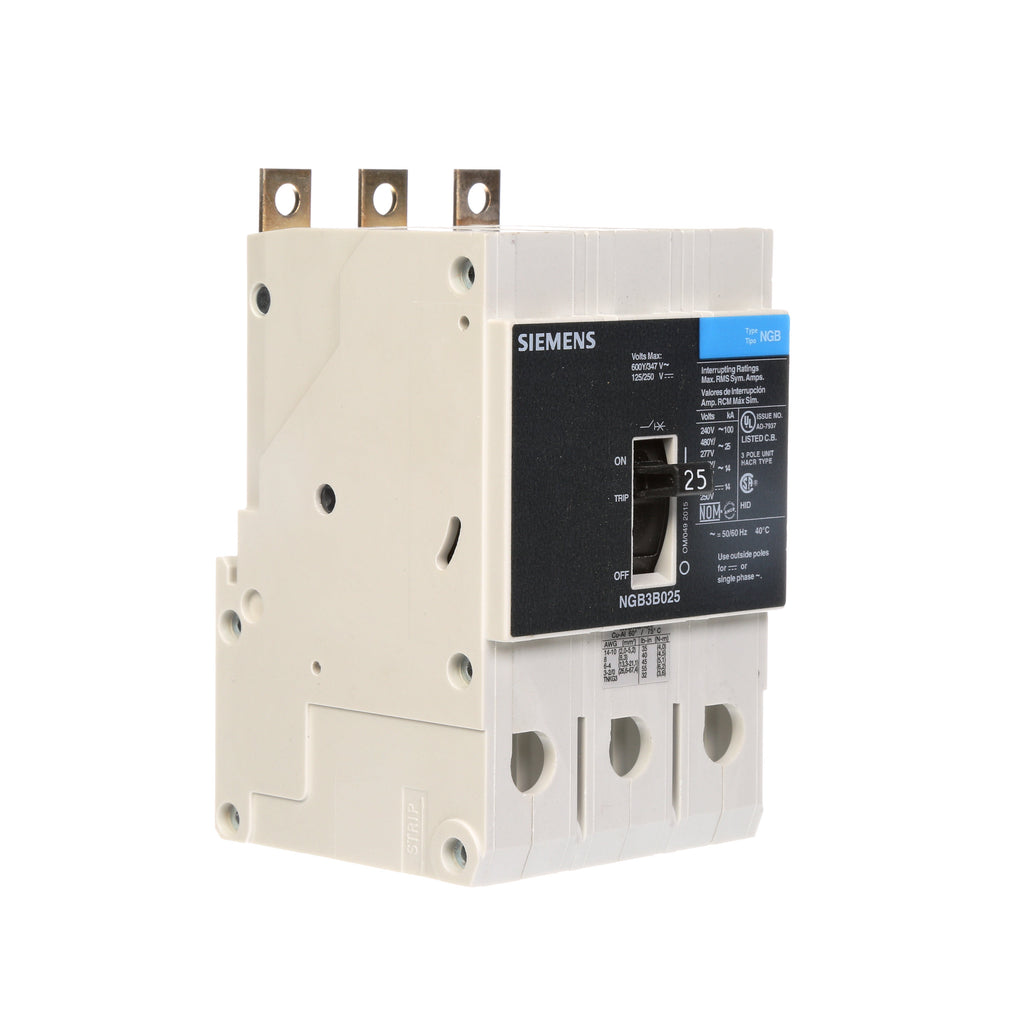

NGB3B025V - Siemens 25A 600Y/347V 3 Pole Molded Case Circuit Breaker Thermal Magnetic

NGB3B025V

NGB3B025V is a Siemens 3 pole molded case circuit breaker rated for 25 amps and 600Y/347 volts AC with thermal magnetic trip unit.

This Siemens NGB series breaker features a bolt-on mounting type and is designed for panelboard installation. It provides long-time and instantaneous trip functions suitable for reverse fed applications. The breaker has a 25kA interrupt rating at 480Y/277V and complies with UL489 certification standards. Load side lug terminals facilitate secure connections.

• Amperage: 25A
• Voltage: 600Y/347V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 25kA @ 480Y/277V
• Series/Frame: NGB
• Trip Unit: Thermal Magnetic (Long-time and Instantaneous)
• Certification: UL489
• Load Side Lug Terminals
• Suitable for Reverse Fed Applications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: NGB3B025V
• Manufacturer : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : VL Series
• Type : NGB
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : GG Frame
• Temp Rating : -13¡F-158¡F
• Protection : Thermal Magnetic

Product Data

• UPC : 783643555341
• GTIN : 00783643555341
• Country of Origin : Mexico
• Weight : 2.205
• Certification : UL, IEC
