Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NGB3B015

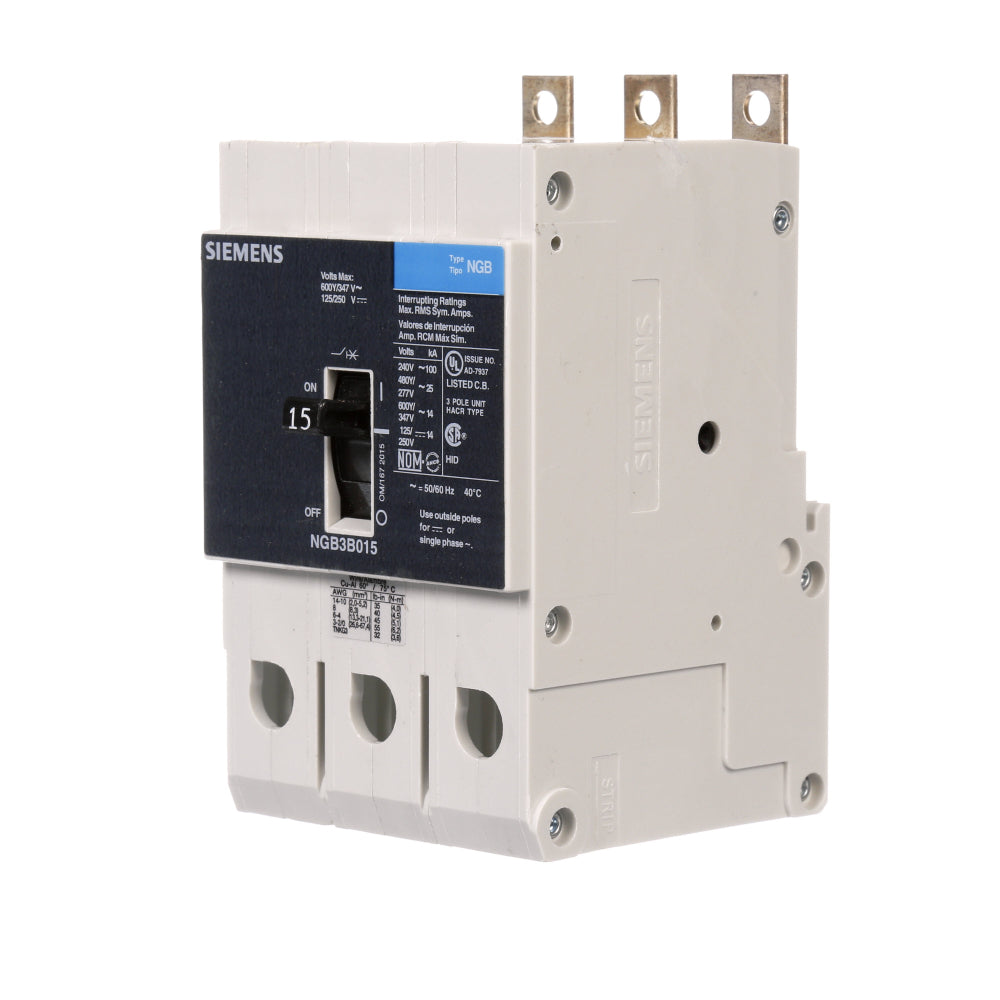

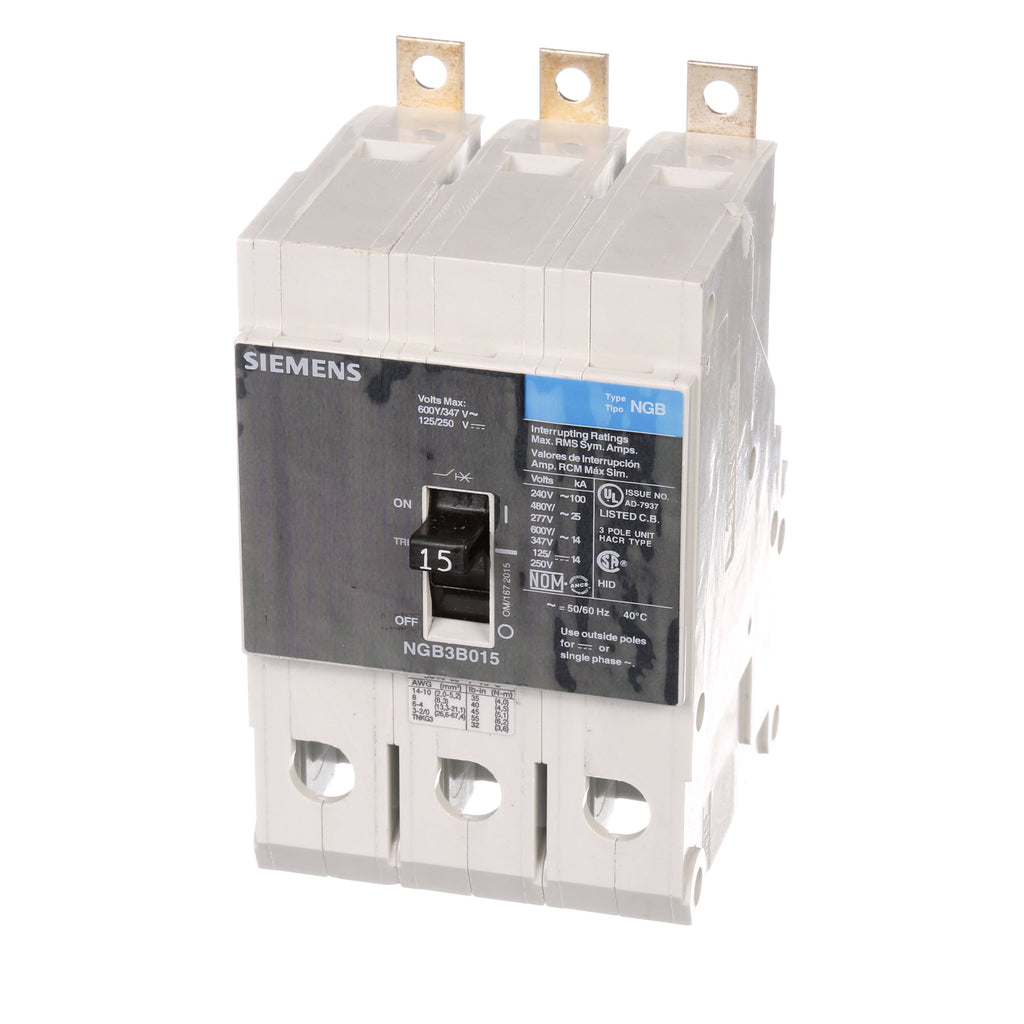

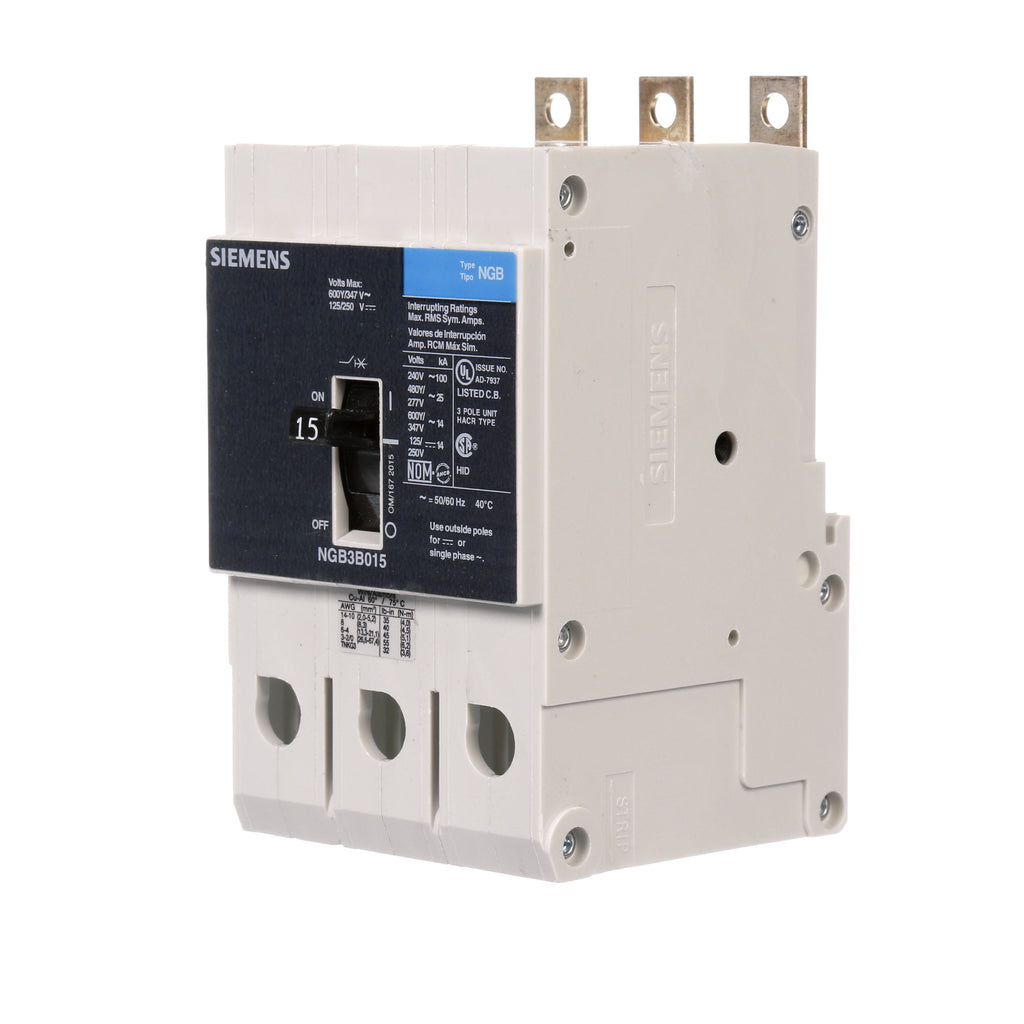

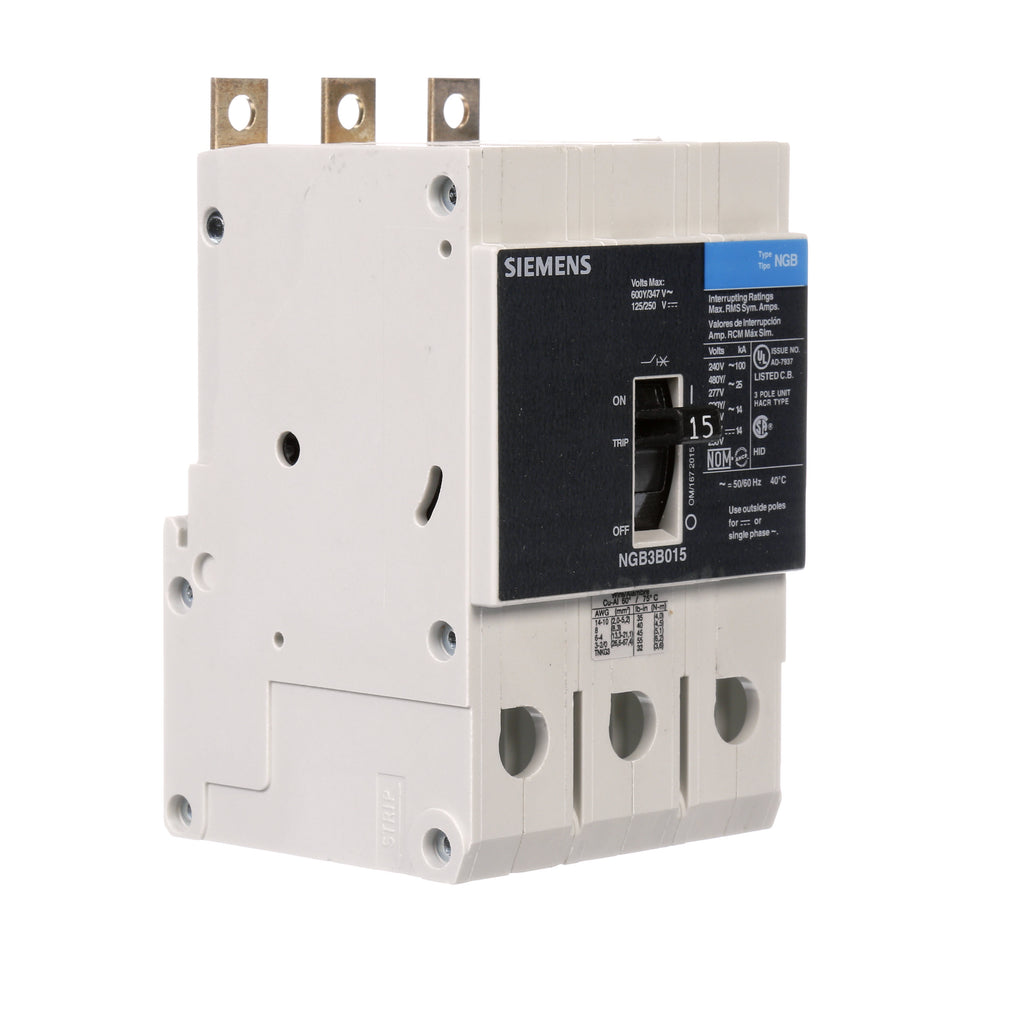

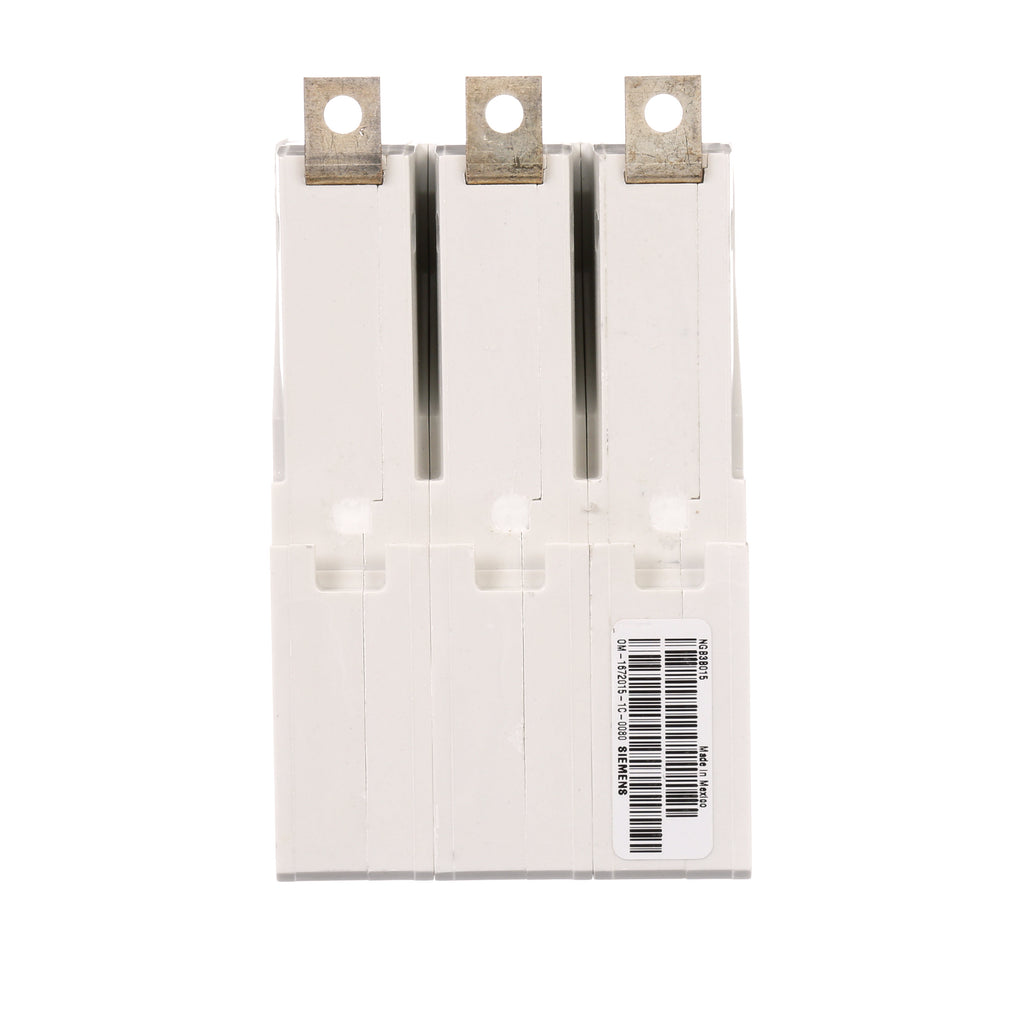

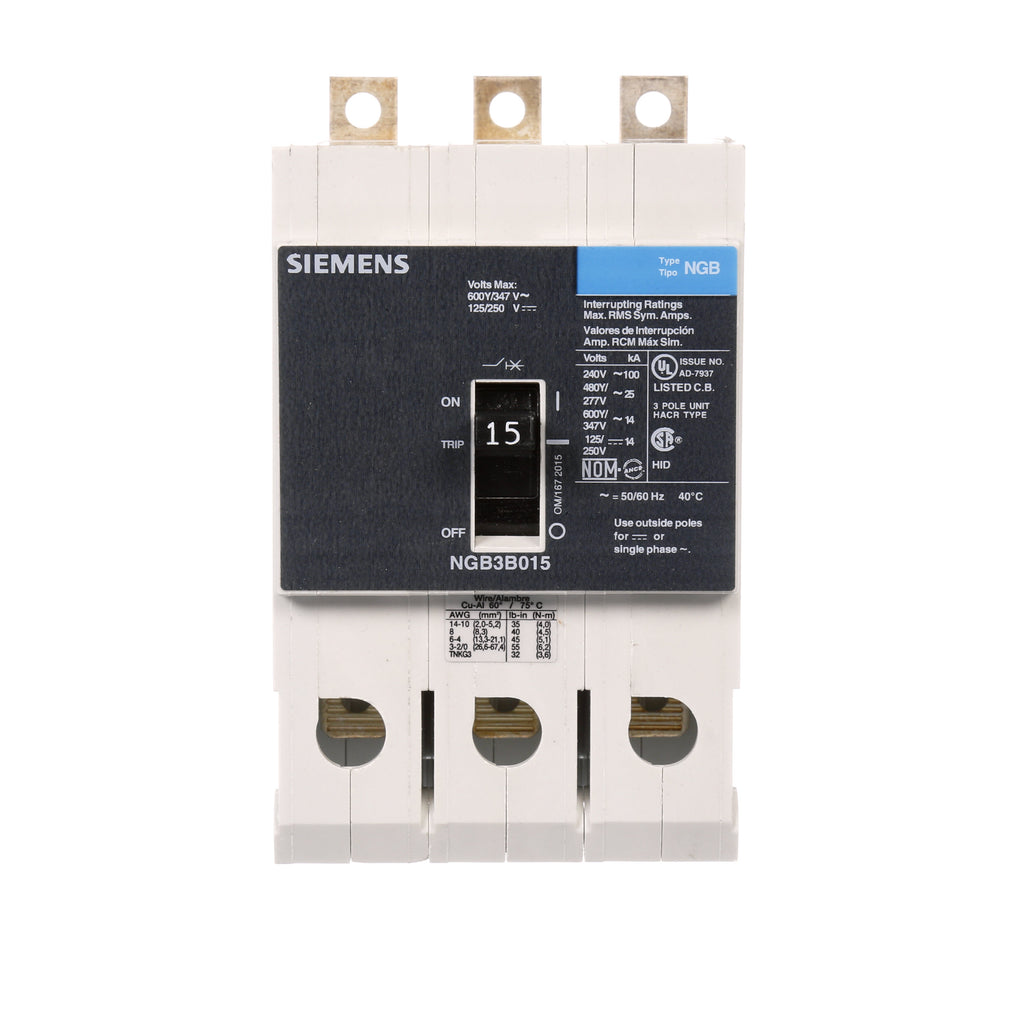

NGB3B015 is a Siemens 3-pole molded case circuit breaker rated for 15 amps and 600 volts, designed for reliable circuit protection.This Siemens NGB series breaker features a 14 kA interrupt rating at 600Y/347V and 25 kA at 480Y/277V, UL489 certification, and a no-lug design for panel mounting. It operates at 50/60 Hz frequency and is suitable for industrial and commercial electrical distribution systems.
- Amperage: 15 A
- Voltage Rating: 600Y/347V AC
- Number of Poles: 3
- Interrupt Rating: 14 kAIC at 600V, 25 kAIC at 480V
- Series/Frame: NGB
- Mounting Type: Panel Mounted
- Trip Unit: Standard Thermal-Magnetic
- Certifications: UL489 Listed
- Frequency: 50/60 Hz
- No lugs design
Additional Information
Lugs are not included
Specifications
- Part Number: NGB3B015
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : NGB
- Voltage : 600
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : GG Frame
- Temp Rating : -13¡F-158¡F
- Protection : Thermal Magnetic
Product Data
- UPC : 783643553392
- GTIN : 00783643553392
- Country of Origin : Mexico
- Weight : 2.575
- Certification : UL, IEC
