Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
NEL361200LIG

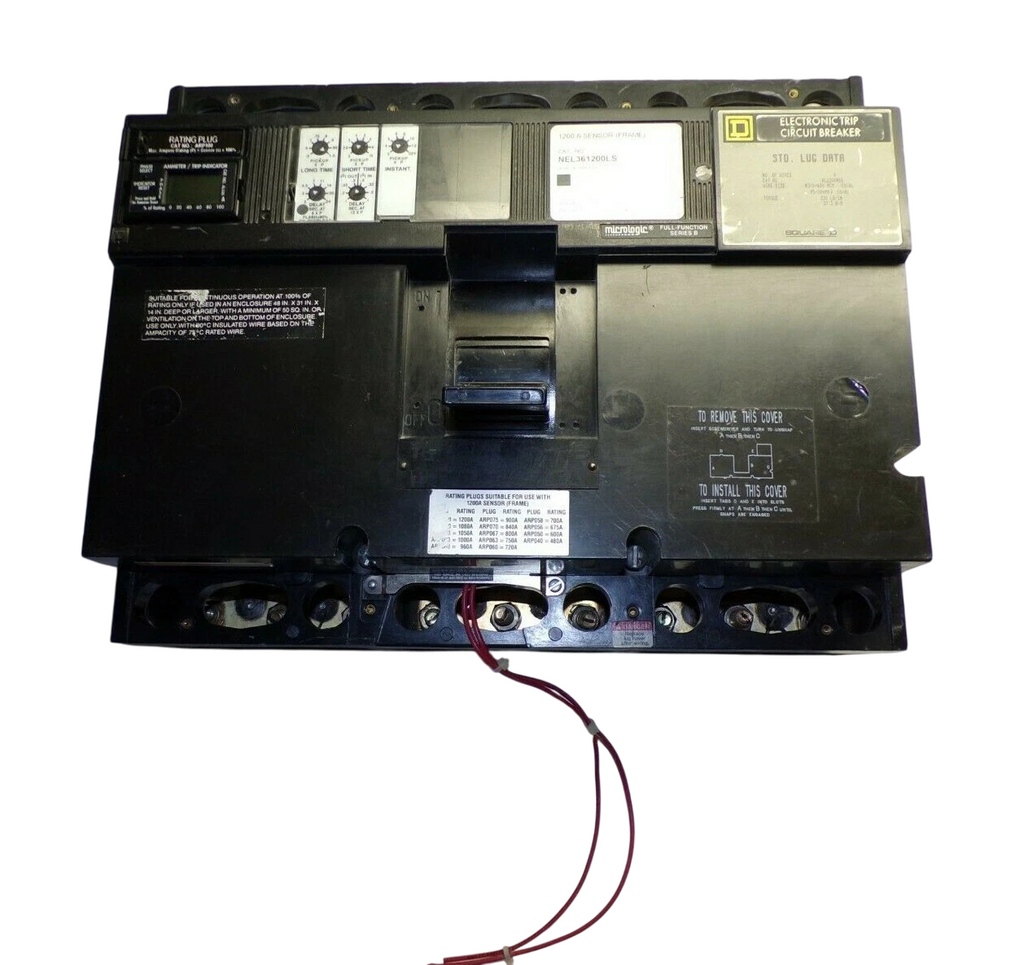

NEL361200LIG is a 3-pole, 1200A, 600V molded case circuit breaker with Micrologic LS trip unit, designed for reliable power distribution in commercial and industrial applications. This Square D breaker features a robust construction and advanced protection capabilities for demanding environments. Engineered for high performance, the NEL361200LIG offers a 100kA interrupting capacity at 480V, copper internal components, and 100% continuous operation rating. It is suitable for use in main or feeder circuits and supports field-reversible line and load lugs for flexible installation. The Micrologic LS trip unit provides long-time and short-time protection, ensuring optimal safety and reliability.
- Part Number: NEL361200LIG
- Manufacturer: Square D
- Amperage: 1200A
- Voltage: 600V
- Poles: 3
- Mounting Type: Molded Case (field-reversible lugs)
- Interrupt Rating: 100kA@480V
- Series/Frame: NEL
- Breaker Type: Molded Case Circuit Breaker (MCCB)
- Interrupting Capacity: 100kA@480V
- Continuous Operation: 100% Rated
- Material: Copper (internal components)
- Standards: HACR, UL Listed
Specifications
- Part Number: NEL361200LIG
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Micrologic
- Type : NEL
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Feed-Thru
- Functions : LIG - Long-Time, Instantaneous and Ground Fault
- Frame Size : NE Frame
- Protection : Solid State
Product Data
- Weight : 82
