Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
NEL361200LS

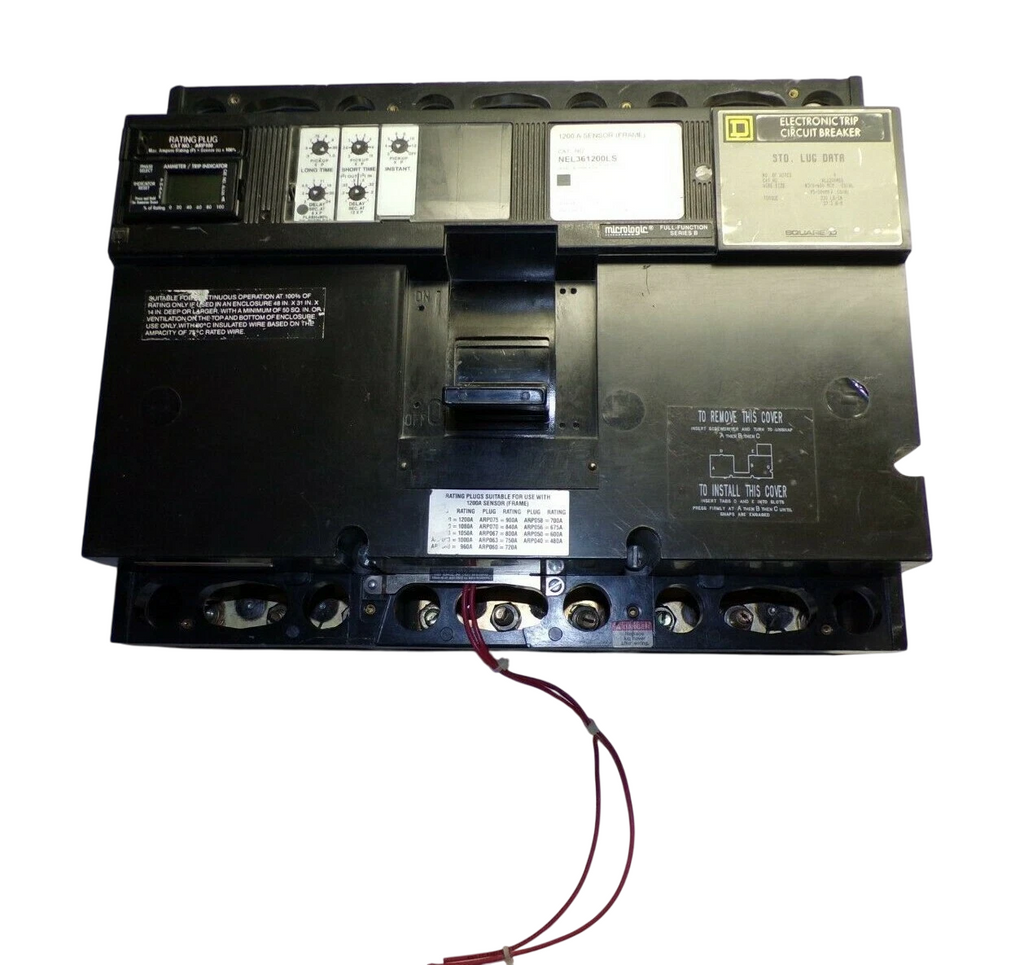

NEL361200LS is a 3-pole, 1200 amp, 600 volt molded case circuit breaker from Square D, designed for reliable power distribution and protection in industrial and commercial applications.This Square D NEL361200LS circuit breaker features a Micrologic non-interchangeable trip unit with LSIG protection functions, providing precise overload, short-circuit, and ground fault protection. It is built for I-Line mounting and offers a high interrupting capacity for demanding environments.
- Part Number: NEL361200LS
- Manufacturer: Square D
- Amperage: 1200A
- Voltage Rating: 600V
- Poles: 3
- Interrupting Rating: 100kA@480V
- Series/Frame: NEL
- Mounting Type: I-Line
- Protection Type: LSIG
- Trip Unit: Micrologic non-interchangeable
- Material: Copper
- Weight: 69 lbs (packaged)
Specifications
- Part Number: NEL361200LS
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Micrologic
- Type : NEL
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Feed-Thru
- Functions : LS - Long-Time and Short-Time
- Frame Size : NE Frame
- Protection : Solid State
Product Data
- Weight : 82
