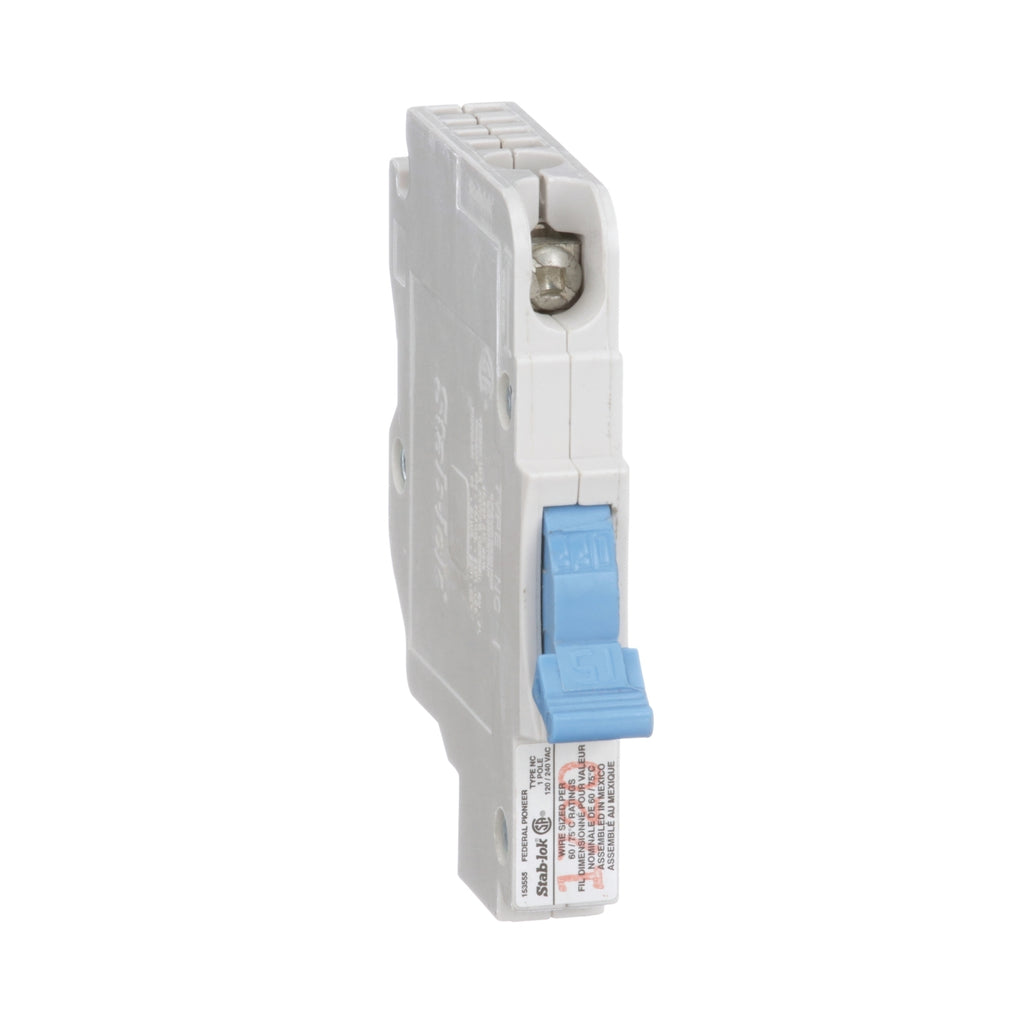

NC050 - Schneider Electric 50A 120V 1 Pole Plug-In Circuit Breaker Stab-Lok 10kA Interrupt Rating

NC050

NC050 is a Schneider Electric 50 amp, 120 volt, 1 pole plug-in circuit breaker from the Stab-Lok family designed for reliable electrical protection.This NC050 circuit breaker features a 10kA interrupt rating at 120V AC, suitable for residential and light commercial applications. It mounts via plug-in connection and provides robust overcurrent protection with a single pole configuration. The breaker is part of the Stab-Lok series known for ease of installation and dependable performance.

Key Specifications
• Amperage: 50 Amps
• Voltage: 120 Volts AC
• Poles: 1 Pole
• Mounting Type: Plug-In
• Interrupt Rating: 10,000 Amps (10kA)
• Series/Frame: Stab-Lok
• Trip Unit: Thermal Magnetic (standard for Stab-Lok)
• Certifications: CSA approved (per similar listings)
• Discontinued: March 7, 2023 (end of service March 31, 2023)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: NC050
• Manufacturer : Schneider Electric
• Brand : Federal Pacific
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Stab-Lok
• Type : NC
• Voltage : 120
• Amperage : 50
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic



Product Data

• Dimensions : Height 23 in (584.20 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
• Weight : 1
• Wire Size : AWG 14...AWG 4 aluminum/copper
