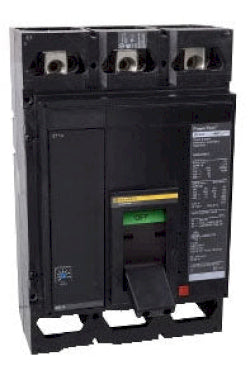

MJP36800 - Square D PowerPact M 800A 600V 3 Pole Molded Case Circuit Breaker

MJP36800

MJP36800 is a Square D PowerPact M molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This 3 pole breaker features an 800A current rating and a maximum voltage of 600V, making it suitable for a wide range of applications requiring high-capacity circuit protection. The MJP36800 utilizes a thermal magnetic trip unit with basic electronic trip technology, providing accurate and dependable overcurrent protection. It is designed for bolt-on mounting and is part of the PowerPact M series, known for robust construction and ease of installation. The breaker is rated for 100kA interrupt at 240VAC, 65kA at 480VAC, and 25kA at 600VAC, ensuring safety in demanding environments.

• Part Number: MJP36800
• Manufacturer: Square D
• Series/Frame: PowerPact M
• Amperage: 800A
• Voltage: 600V
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC
• Tripping Technology: Thermal Magnetic, Basic Electronic Trip Unit
• Standards: UL Listed
• Width: 8.27 inches
• Depth: 8.05 inches
• Height: 12.86 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MJP36800
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MJP
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : M
• MCM Size : Min. Wire Size (3) 3/0 AWG (Cu/Al) Max. Wire Size (3) 500 kcmil (Cu/Al)
• Protection : Solid State

Product Data

• UPC : 785901785910
• GTIN : 00785901785910
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 29.19
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
