Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
MJP36450
MJP36450 is a PowerPacT M molded case circuit breaker from Schneider Electric designed for industrial and commercial power distribution applications. This bolt-on circuit breaker combines reliable performance with field-installable accessory flexibility, making it an ideal choice for systems requiring robust overcurrent protection and easy customization.Key Specifications
- Amperage Rating: 450 Amps
- Voltage Rating: 600 VAC, 50/60 Hz
- Poles: 3 Pole
- Interrupt Rating (AIC): 65 kA
- Series: PowerPacT M
- Mounting Type: Bolt-On
- Trip Unit: Thermal-Magnetic
- Certifications: UL 489, CSA, IEC 60947-2
- Standard Rating: 80%
- Terminal Options: Lugs
Specifications
- Part Number: MJP36450
- Manufacturer : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : MJP
- Voltage : 600
- Amperage : 450
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : M Frame
- Protection : Solid State
Product Data

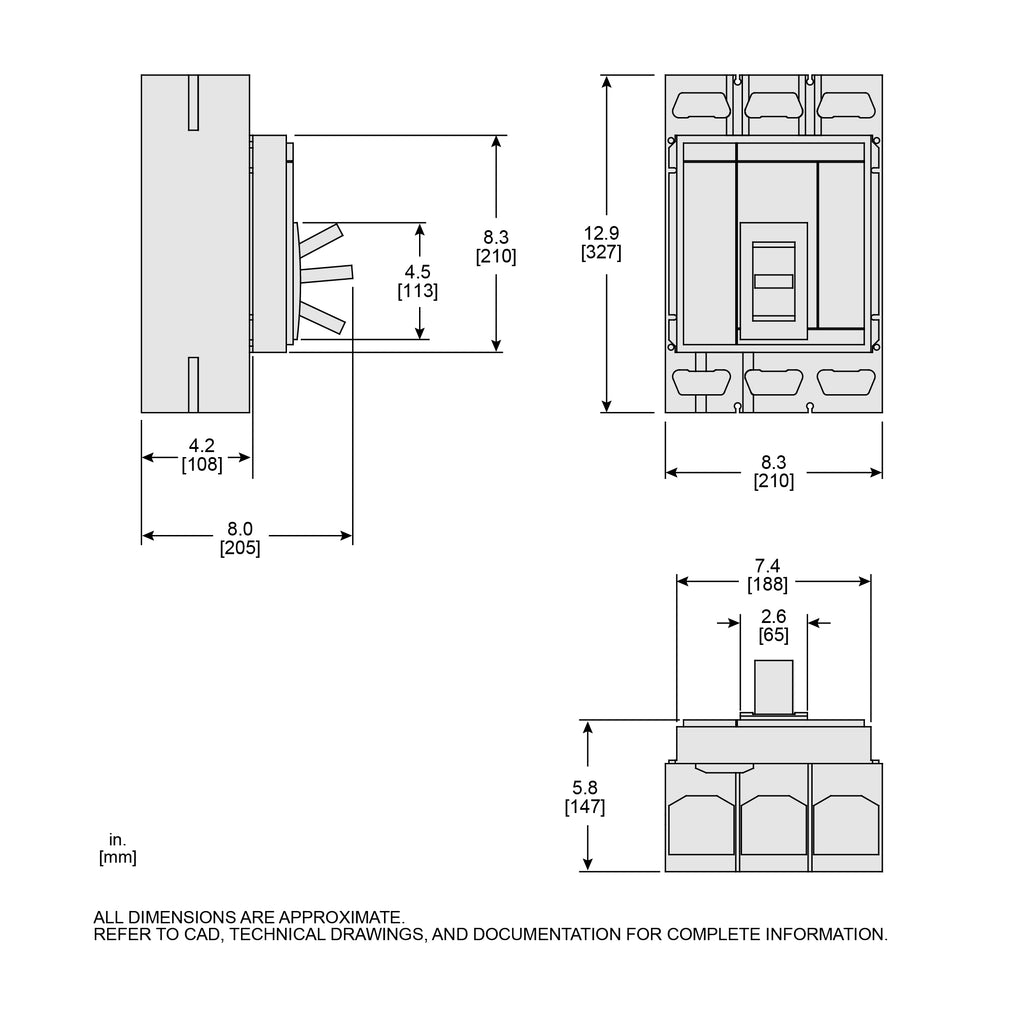

- Dimensions : Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
- Weight : 34
