MJM36500 - Square D PowerPact M 500A 3-Pole 600V Molded Case Circuit Breaker

MJM36500

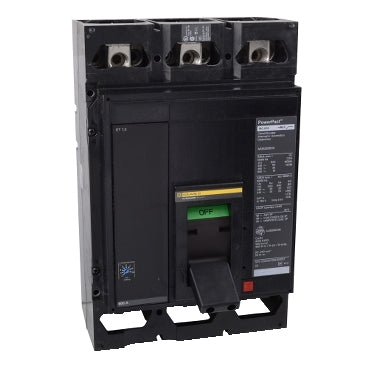

MJM36500 is a 3-pole molded case circuit breaker from Square D designed for industrial power distribution applications requiring reliable overcurrent protection at 500 amperes and 600 volts. MJM36500 features PowerPact M-frame construction with electronic trip unit technology and I-Line style plug-in connection for flexible installation in panelboards and switchgear. This breaker combines long-time and instantaneous trip functions with solid state protection to safeguard electrical circuits from overloads and short circuits. The unit is UL listed, CSA certified, and complies with IEC standards for global compatibility.

• Amperage: 500A
• Voltage: 600VAC
• Poles: 3-Pole
• Frame Type: M Frame
• Connection: I-Line Style Plug-In
• Trip Functions: Long-Time and Instantaneous (LI)
• Protection Type: Solid State Electronic
• Interrupt Rating: 65kA at 480V
• Continuous Current Rating: 80%
• Trip Unit: Electronic, Basic, ET 1.0
• Certifications: UL Listed, CSA, IEC
• Mounting: I-Line Bracket

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MJM36500
• Manufacturer : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MJM
• Voltage : 600
• Amperage : 500
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : M Frame
• Protection : Solid State

Product Data

• Dimensions : Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
• Weight : 34
