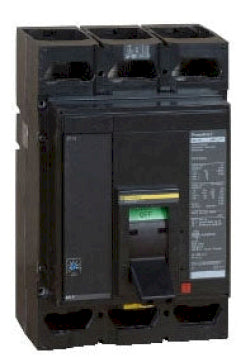

MJF36600 - Square D 600A 600V 3 Pole M Frame Molded Case Circuit Breaker

MJF36600

MJF36600 is a 3 pole, 600 amp, 600 volt molded case circuit breaker from Square D designed for reliable circuit protection.This circuit breaker features a thermal magnetic trip unit with a basic electronic ET 1.0 type, suitable for industrial and commercial applications. It has a unit mount design and belongs to the PowerPact MJF series with an M frame. The breaker offers high interrupting ratings of 65kA at 480V, 25kA at 600V, and 100kA at 240V AC, meeting UL 489 standards. It is UL, CSA, and CE approved, ensuring compliance with major safety certifications.

Key Specifications
• Amperage: 600 Amp
• Voltage Rating: 600 Volt AC
• Poles: 3 Pole
• Frame Type: M Frame
• Mounting Type: Unit Mount
• Interrupt Rating: 65kA at 480V, 25kA at 600V, 100kA at 240V
• Trip Unit: Thermal Magnetic, Basic Electronic ET 1.0
• Certifications: UL 489 Listed, CSA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: MJF36600
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MJF
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Busbar Connection
• Frame Size : M
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size (3) 3/0 AWG (Cu/Al) Max. Wire Size (3) 500 kcmil (Cu/Al)
• Protection : Solid State



Product Data

• UPC : 785901504283
• GTIN : 00785901504283
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 27.829
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
