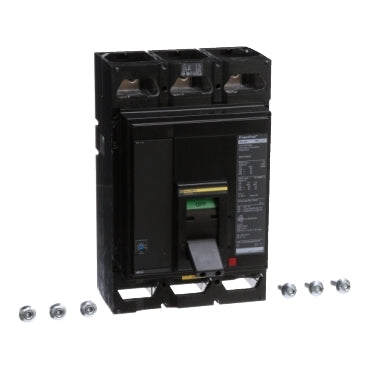

MJF36350 - Square D PowerPact M Frame 350 Amp 3 Pole Molded Case Circuit Breaker 600 VAC

MJF36350

MJF36350 is a Square D PowerPact M Frame molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This three-pole breaker provides 350 amp continuous current at up to 600 VAC and features a robust interrupt rating suitable for demanding applications.Engineered for durability and ease of installation, the MJF36350 is part of the PowerPact M Frame series, offering standardized mounting and compatibility with a wide range of panelboards. It is designed for use in systems requiring high interrupting capacity and dependable performance.

• 350 Amp continuous current rating
• 600 VAC maximum voltage
• Three pole configuration
• PowerPact M Frame series
• Unit mount design
• Interrupt rating: 65 kA at 240 VAC
• Interrupt rating: 35 kA at 480 VAC
• Interrupt rating: 18 kA at 600 VAC
• UL 489 listed
• Standard trip unit
• Compatible with PowerPact M Frame panelboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: MJF36350
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MJF
• Voltage : 600
• Amperage : 350
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : M Frame
• Protection : Solid State

Product Data

• Dimensions : Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
• Weight : 34
