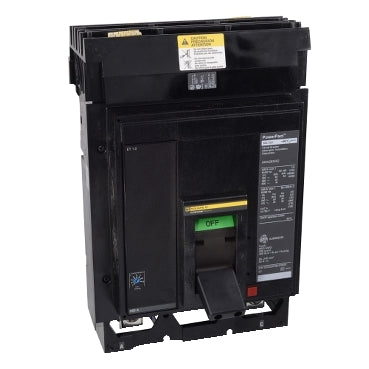

MJA36800YP - Square D 800A 600VAC 3-Pole PowerPact M Molded Case Circuit Breaker Electronic Trip

MJA36800YP

MJA36800YP is a Square D PowerPact M molded case circuit breaker rated for 800 amps and 600 volts AC with a 3-pole configuration and electronic basic ET 1.0 LI trip unit.This circuit breaker features a 25 kA interrupt rating at 600 VAC, NEMA AB1 enclosure, I-Line plug-in mounting, and supports wire sizes from 3/0 AWG to 500 kcmil aluminum or copper conductors. It is designed for commercial and industrial power distribution applications, providing reliable protection with a compact M frame design.

• Amperage: 800 A
• Voltage Rating: 600 VAC
• Poles: 3
• Interrupt Rating: 25 kA
• Frame: M
• Trip Unit: Electronic Basic ET 1.0 LI
• Mounting Type: I-Line plug-in
• Enclosure Type: NEMA AB1
• Wire Size Range: 3/0 AWG to 500 kcmil Al/Cu
• Frequency: 60 Hz
• Country of Origin: US
• Manufacturer: Square D (Schneider Electric)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MJA36800YP
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MJA
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : M Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 060648628479
• GTIN : 03606486284797
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 28.99
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
