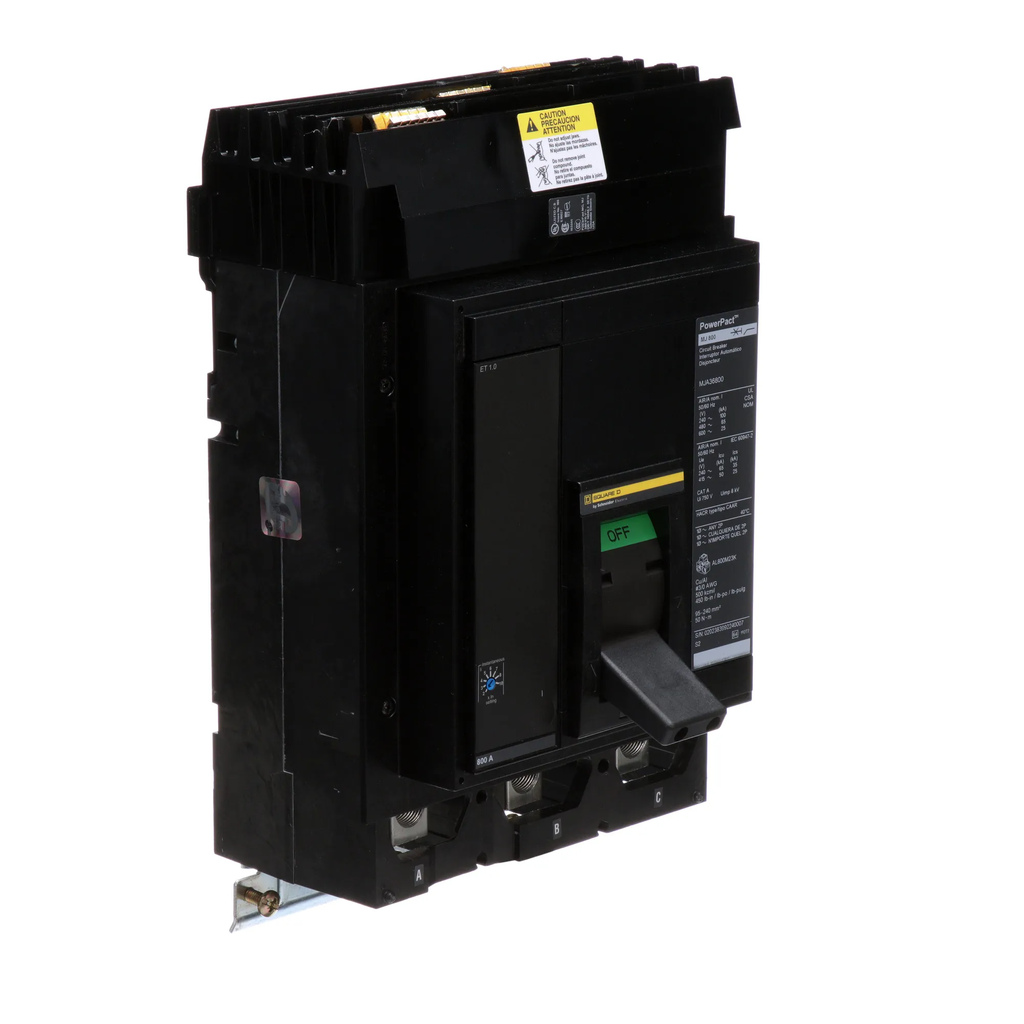

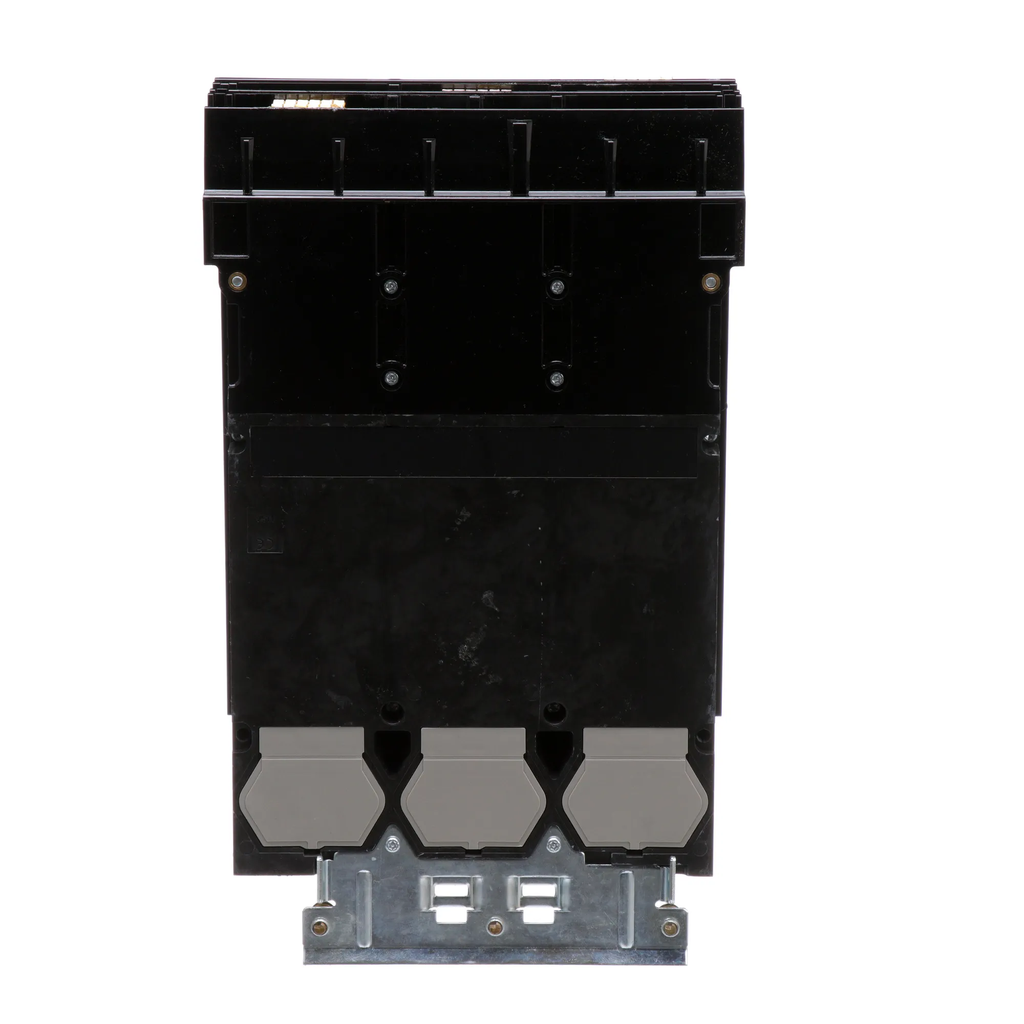

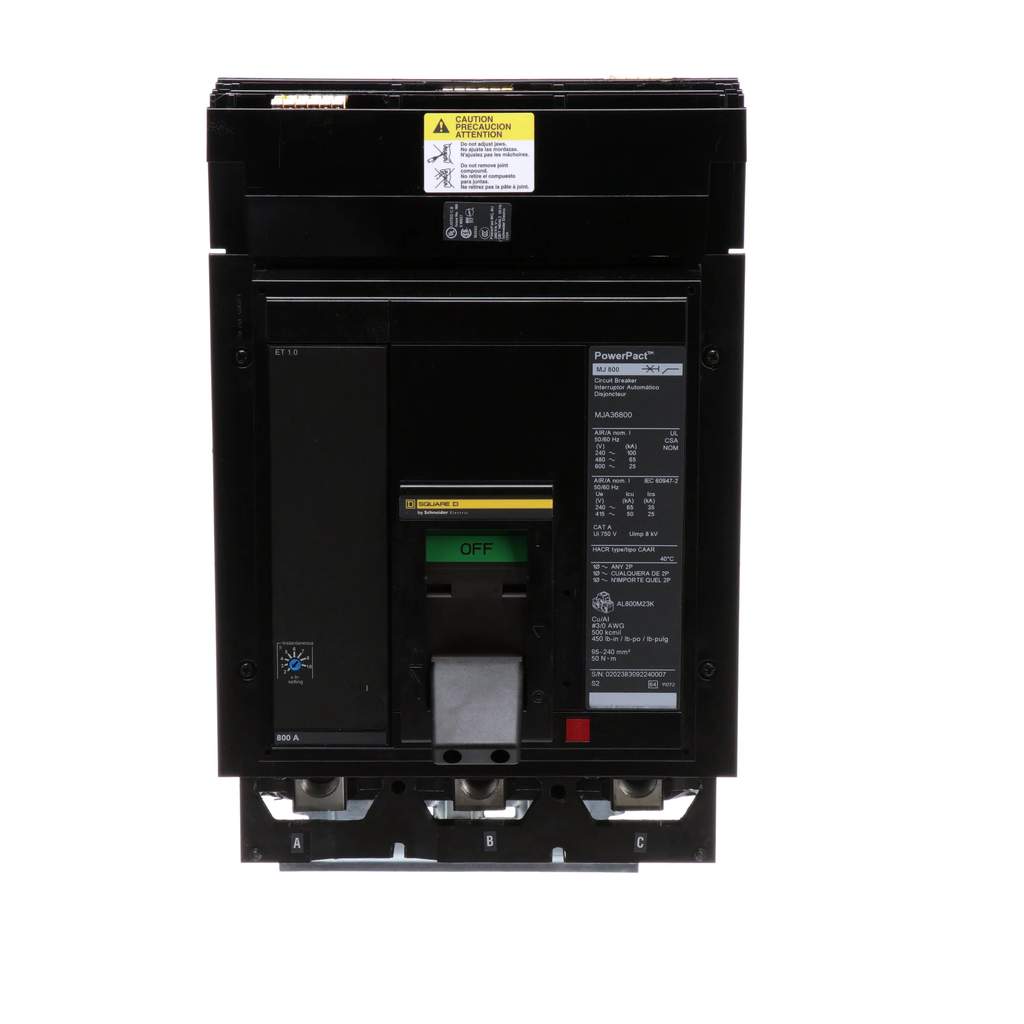

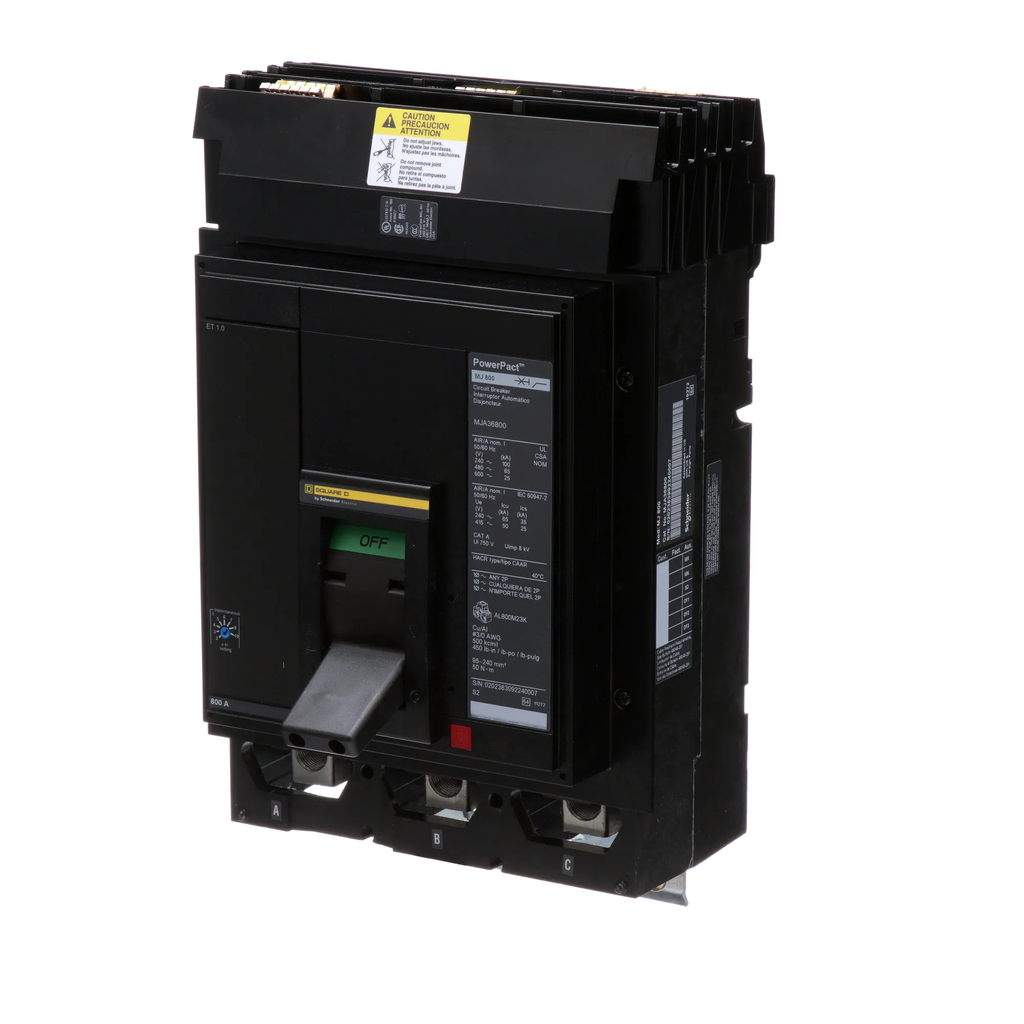

MJA36800 - Square D 800A 600V 3-Pole Molded Case Circuit Breaker Plug-On Mount

MJA36800

MJA36800 is a Square D 3-pole molded case circuit breaker rated for 800 amps and 600 volts with plug-on mounting.This circuit breaker features a Powerpact MJA frame with a solid state design, suitable for overload and short circuit protection. It has an interrupt rating of 100kA at 240VAC, 65kA at 480VAC, and 25kA at 600VAC. The breaker includes long time and instantaneous trip functions and is UL listed, CSA certified, and IEC rated.

Key Specifications
• Amperage: 800A
• Voltage: 600V
• Poles: 3
• Mounting Type: Plug-On
• Interrupt Rating: 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC
• Series/Frame: MJA Powerpact
• Trip Unit: Long time and instantaneous
• Certifications: UL Listed, CSA Certified, IEC Rated
• Phase: 3
• Connection Type: I-Line style plug-in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MJA36800
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MJA
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Panel Mount
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Box Lug
• Frame Size : 800A/M
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
• Breaker Type : Standard
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901572701
• GTIN : 00785901572701
• Country of Origin : United States

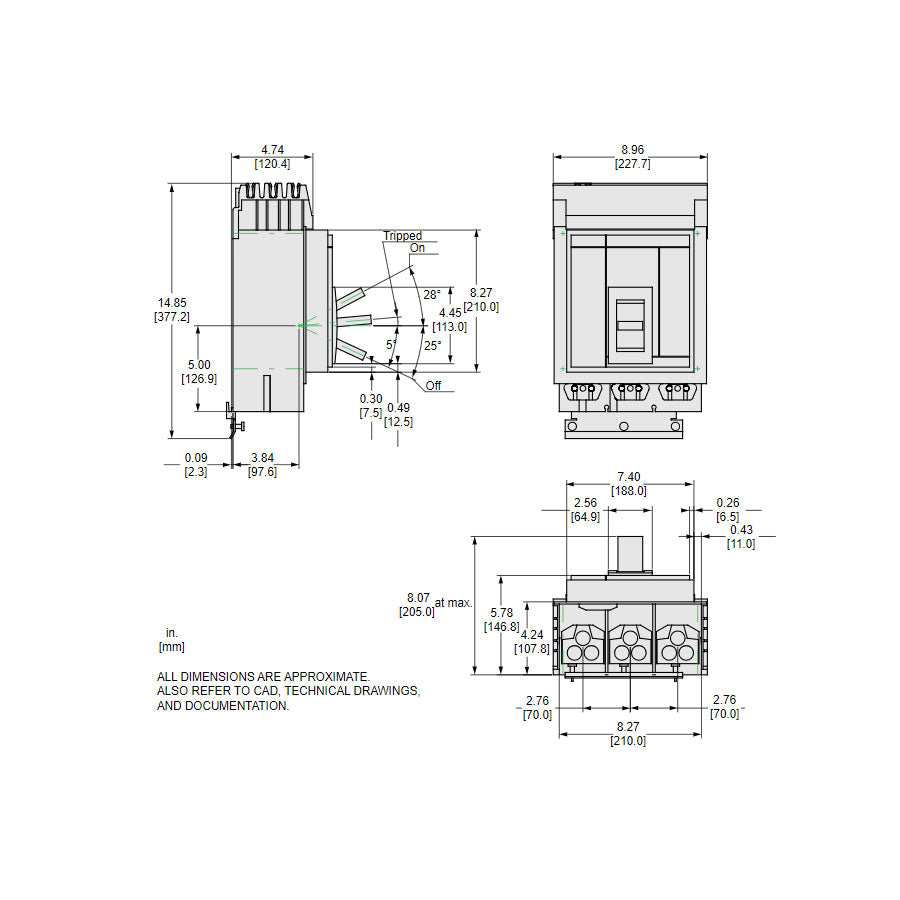

• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 28.55 lb
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
