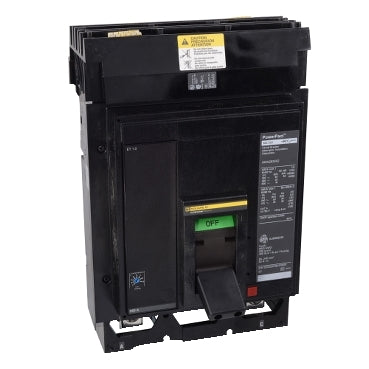

MJA36600YP - Square D PowerPact M 600 Amp 3-Pole 600VAC 35kA Circuit Breaker

MJA36600YP

MJA36600YP is a Square D PowerPact M molded case circuit breaker designed to protect electrical systems from overloads and short circuits.

This I-Line style plug-in circuit breaker features solid state trip technology with long-time and instantaneous protection. The PowerPact M frame provides reliable performance in industrial and commercial power distribution applications with a compact, space-saving design.

Key Specifications

• Manufacturer: Square D (Schneider Electric)
• Amperage: 600 Amp
• Voltage: 600 VAC
• Poles: 3-Pole
• Interrupt Rating: 35 kA at 600 VAC
• Series: PowerPact M
• Mounting Style: I-Line Plug-In
• Trip Unit: Solid State with Long-Time and Instantaneous
• Frame Size: M-Frame

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MJA36600YP
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MJA
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : M Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 060648628476
• GTIN : 03606486284766
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 29
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
