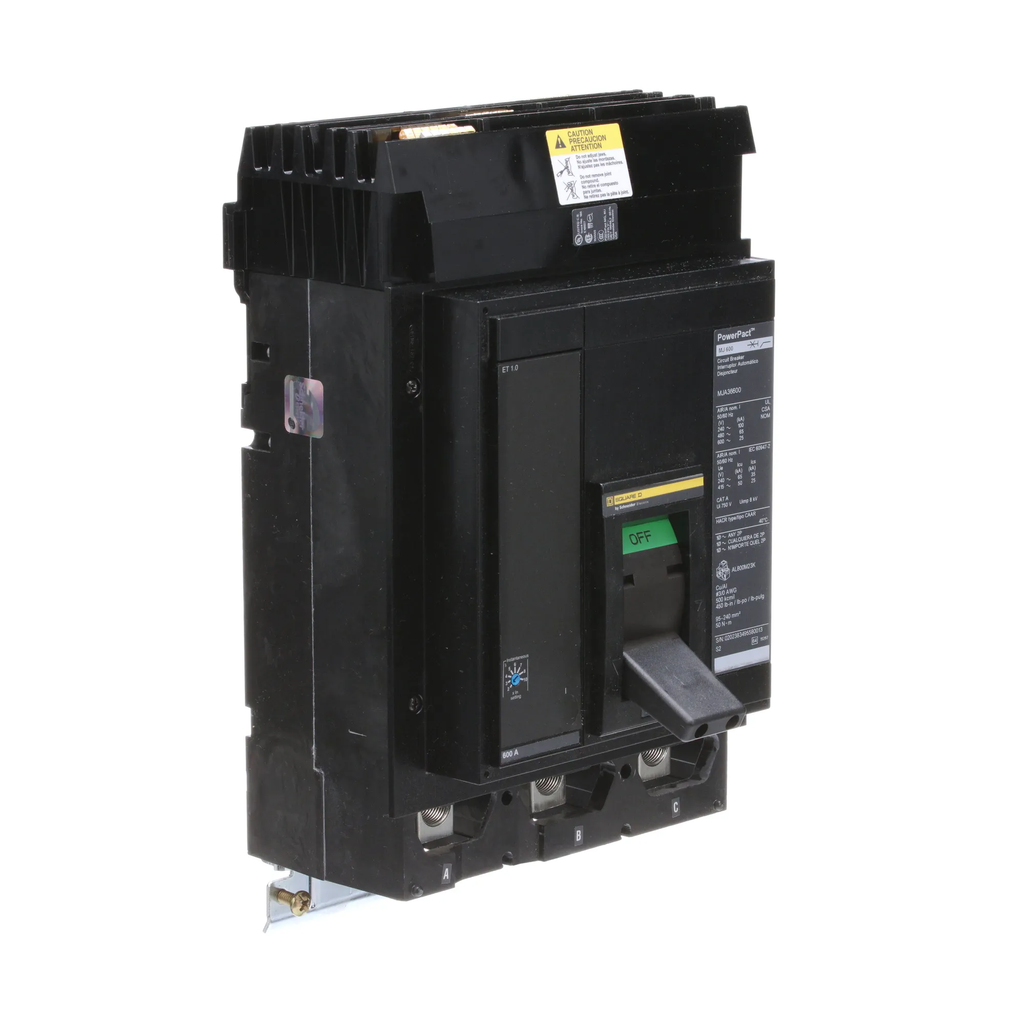

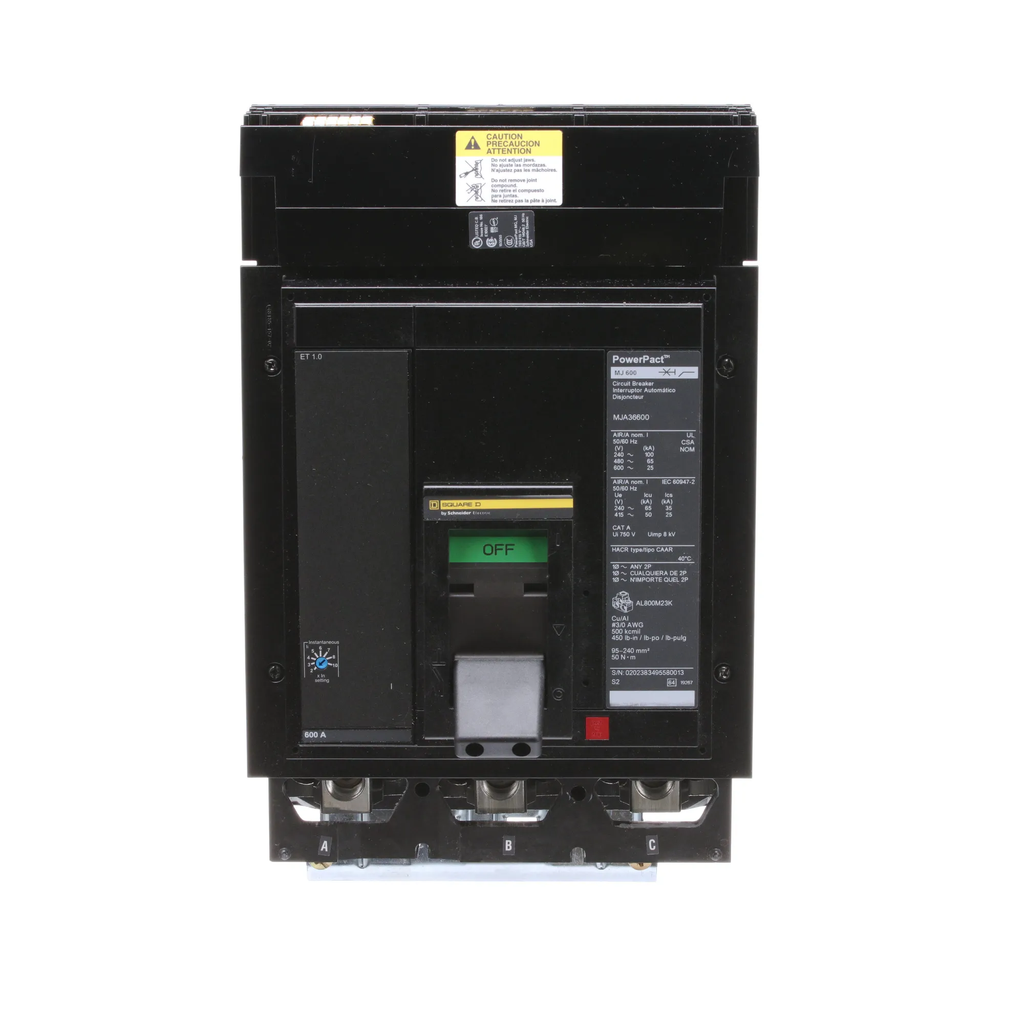

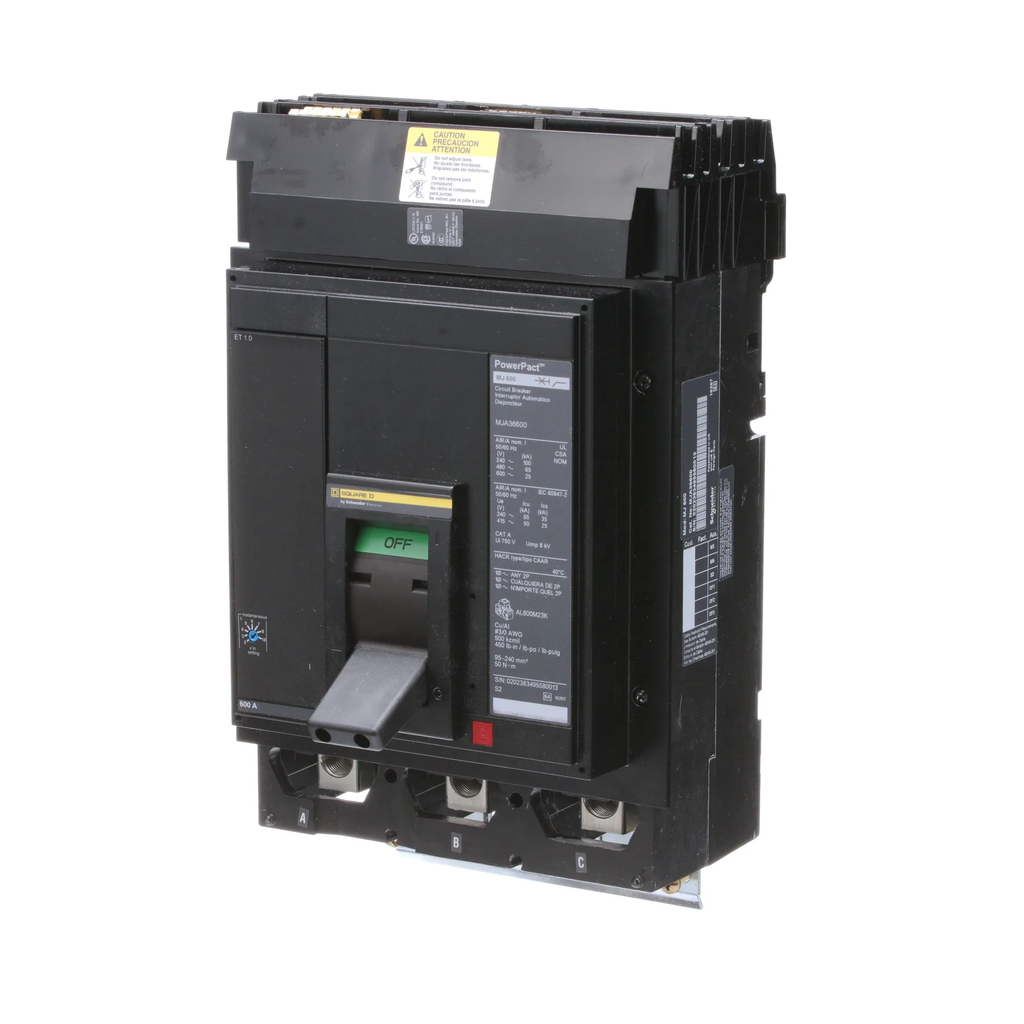

MJA36600 - Square D 600A 600V 3-Pole Powerpact M Molded Case Circuit Breaker with Electronic Trip

MJA36600

MJA36600 is a Square D Powerpact M molded case circuit breaker designed for 600 amp, 600 volt, 3-pole applications with electronic trip technology.This circuit breaker features a 3-pole configuration with I-Line style plug-in mounting and a solid state electronic trip unit (basic ET 1.0) providing long-time and instantaneous protection. It has a 65kA interrupting rating at 480V and is UL listed for safety and reliability. The breaker supports line rated current of 600 amps with continuous current rating of 80%, and is compatible with AWG 3/0 to 350 kcmil aluminum or copper terminals.

• Manufacturer: Square D
• Part Number: MJA36600
• Series/Frame: Powerpact M
• Amperage: 600A
• Voltage: 600V AC
• Poles: 3

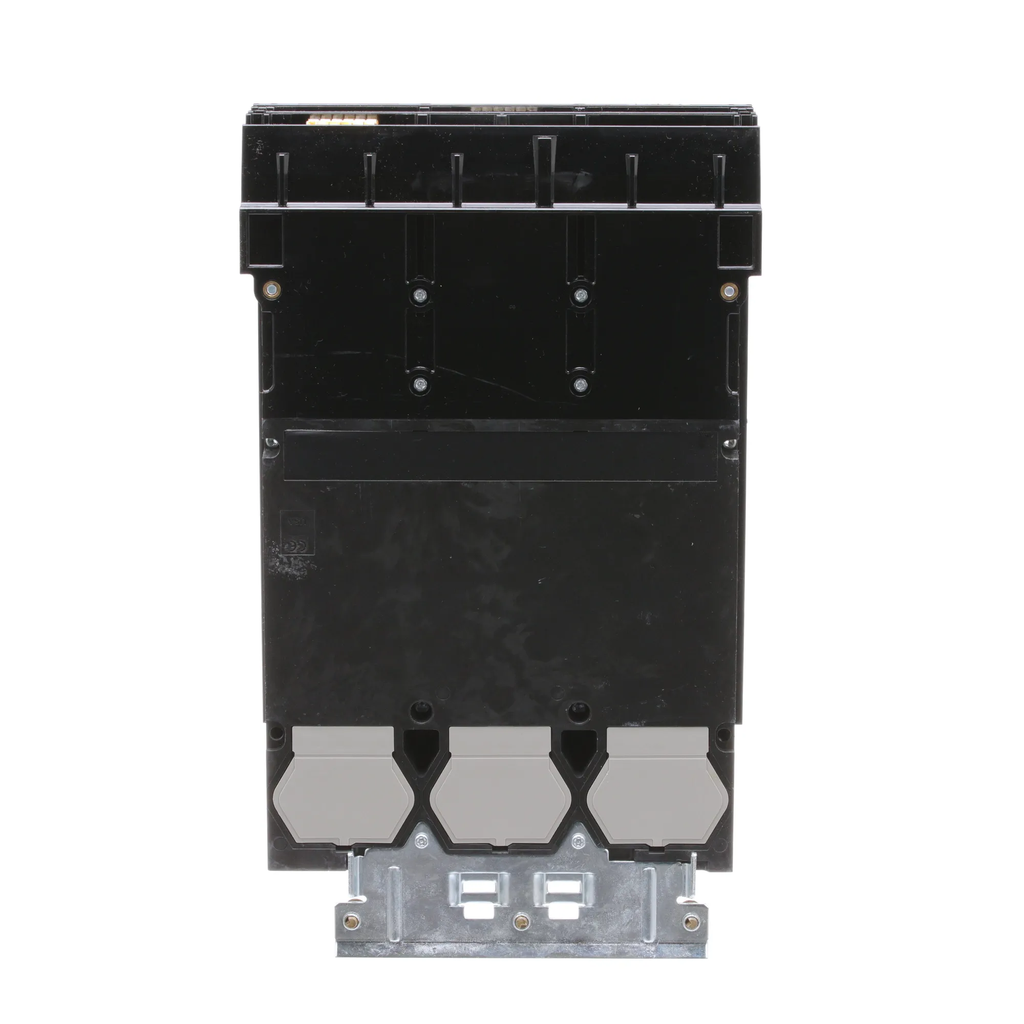

• Mounting Type: I-Line style plug-in
• Interrupt Rating: 65kA at 480V
• Trip Unit: Electronic basic ET 1.0 with LI (Long-Time and Instantaneous) functions
• Connection: I-Line plug-in with load side lug terminals
• Certifications: UL Listed
• Continuous Current Rating: 80%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MJA36600
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MJA
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Panel Mount
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Box Lug
• Frame Size : 800A/M
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
• Breaker Type : Standard
• Protection : Solid State
• Phase Connection : CBA

Product Data

• UPC : 785901504757
• GTIN : 00785901504757
• Country of Origin : United States

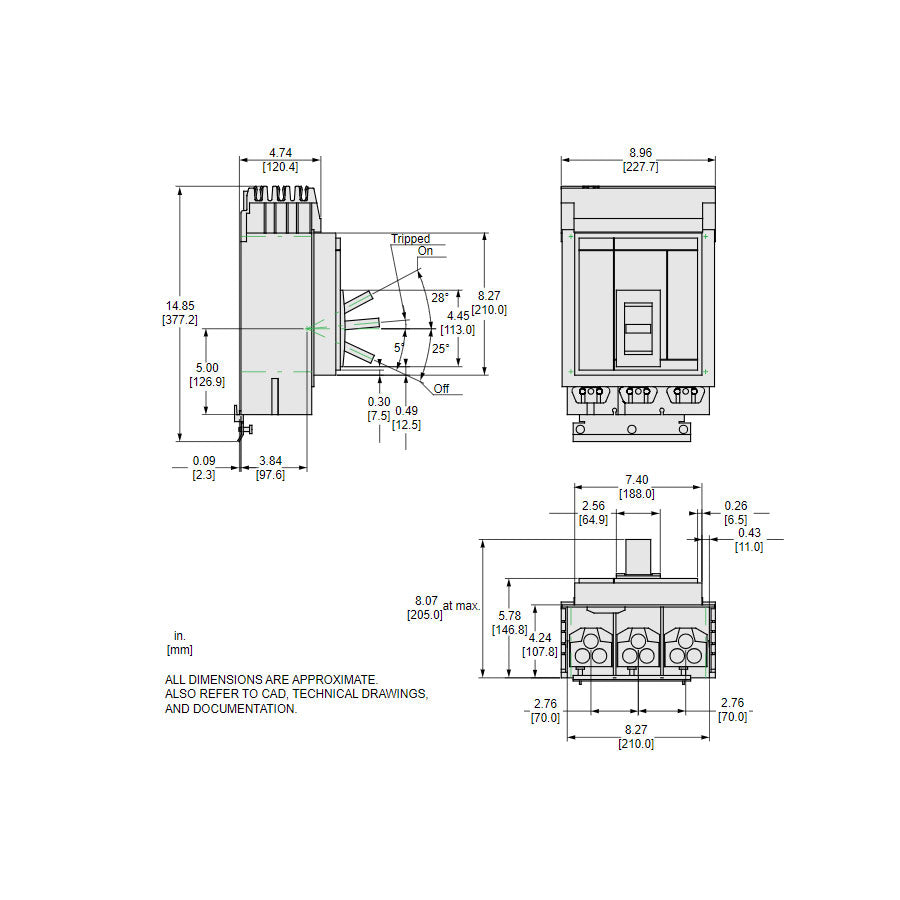

• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 29.19
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
