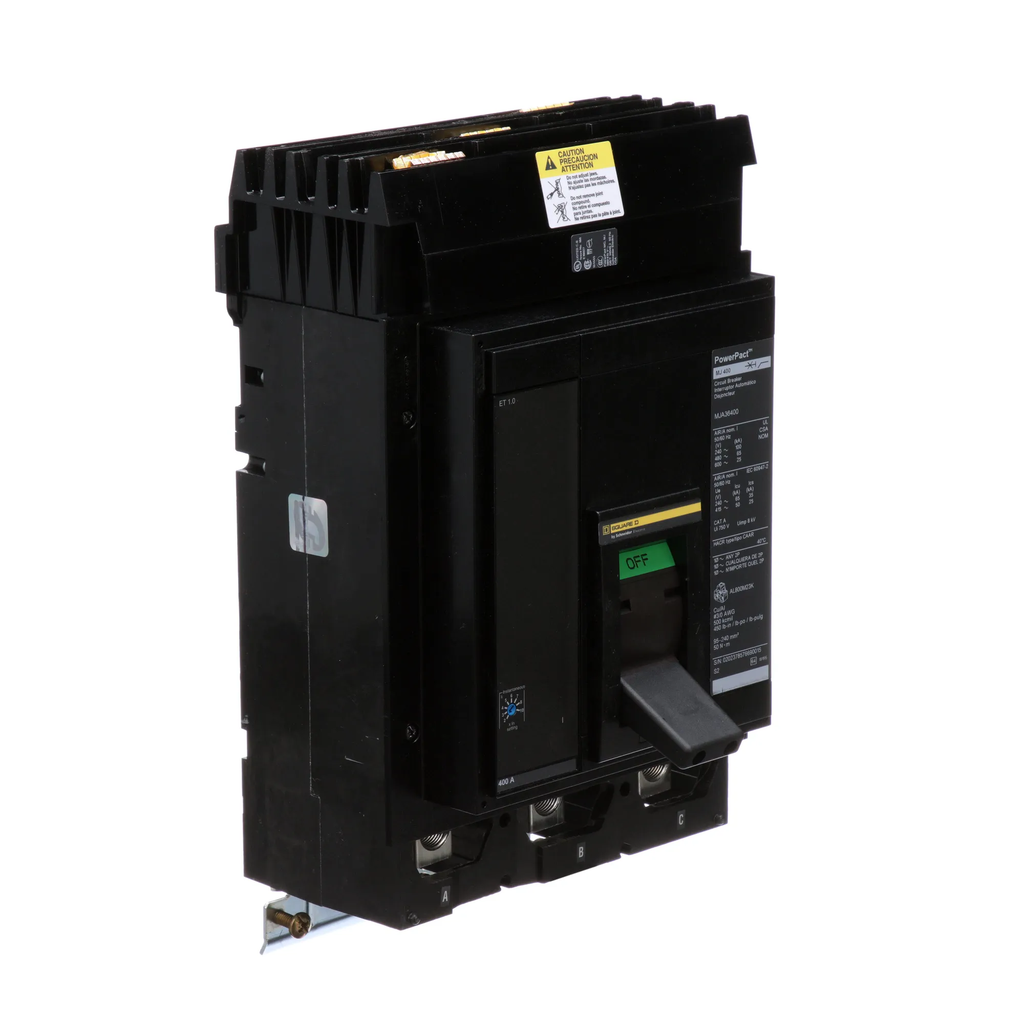

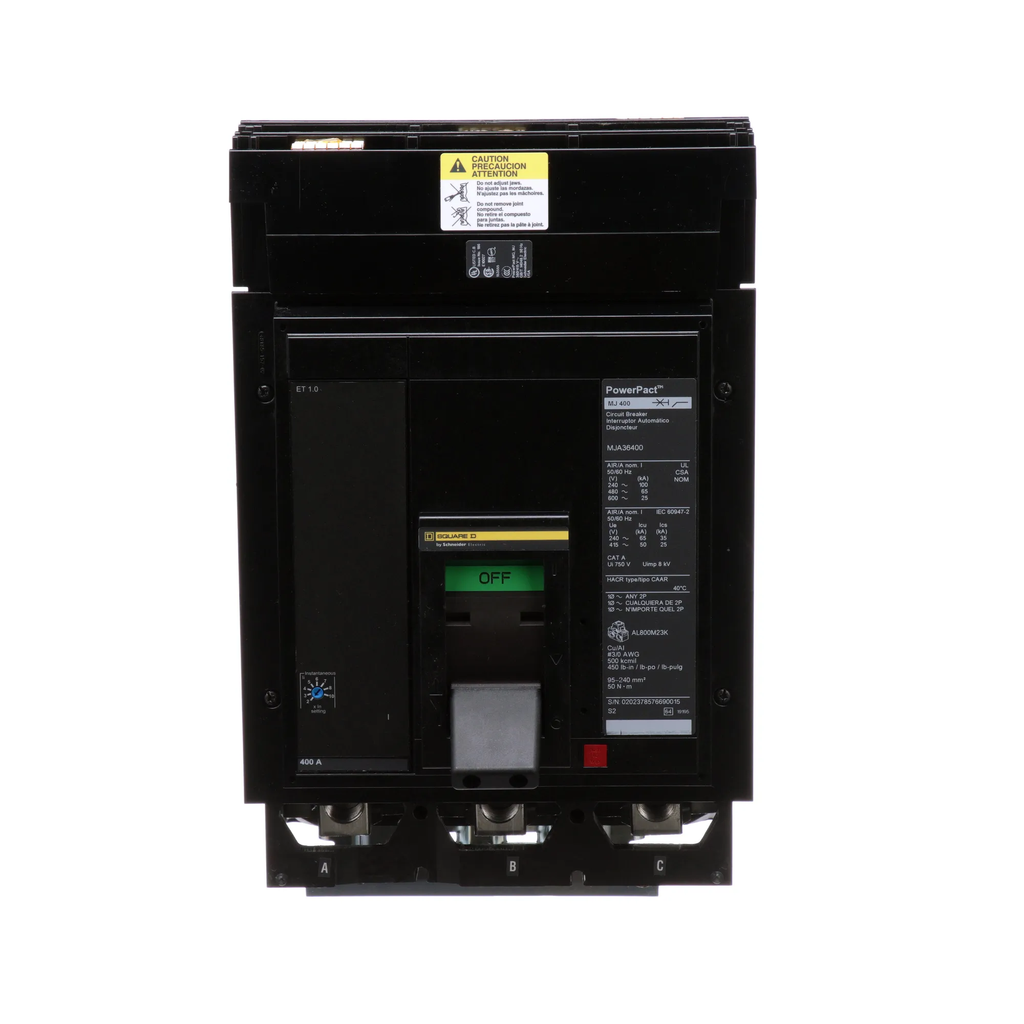

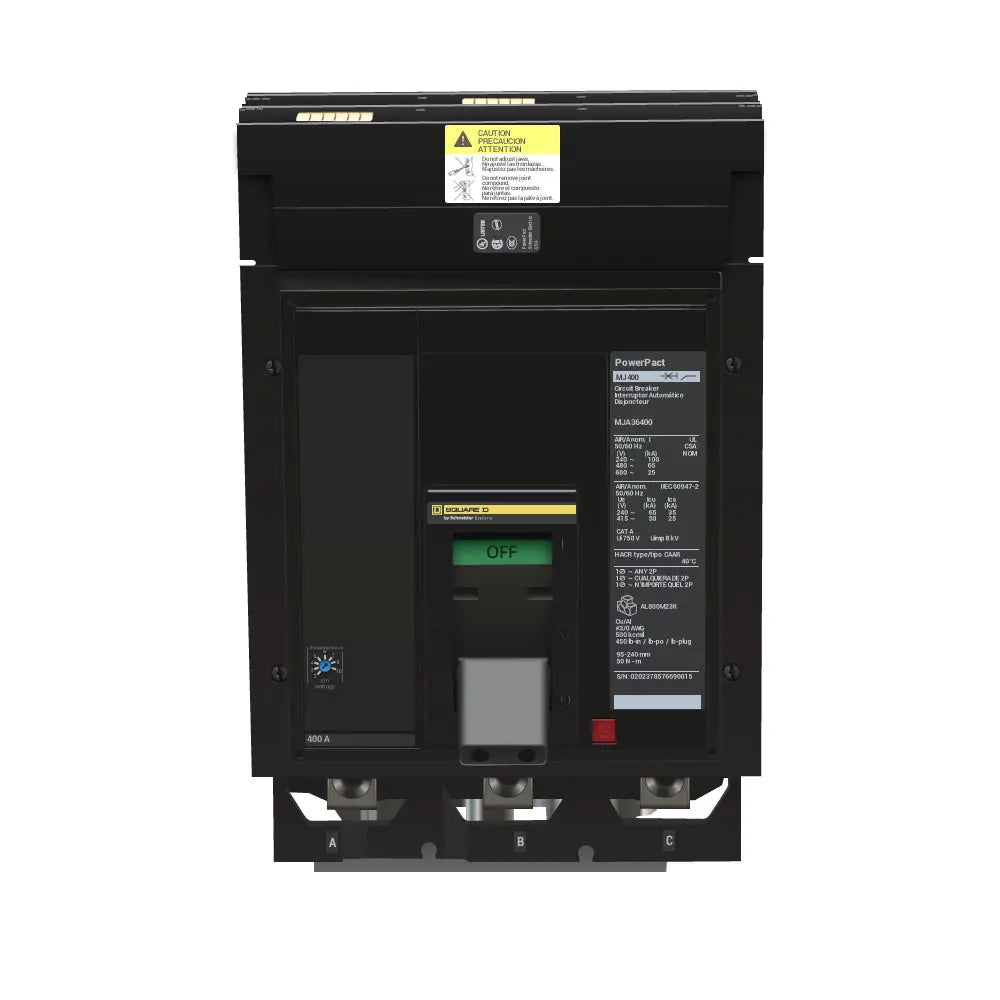

MJA36400 - Square D PowerPact M 400A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker, Electronic Trip, UL/CSA

Save $5,361.15
SKU: MJA36400-New
Condition: New
Price:
$4,567.85 $9,929.00
Stock:
37 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

MJA36400 - Schneider Electric/ Square D I-Line Style Plug-In 400 Amp 3 Pole Circuit Breaker - Essential Electric Supply
MJA36400 - Square D PowerPact M 400A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker, Electronic Trip, UL/CSA - Essential Electric Supply
MJA36400 - Square D PowerPact M 400A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker, Electronic Trip, UL/CSA - Essential Electric Supply
MJA36400 - Square D PowerPact M 400A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker, Electronic Trip, UL/CSA - Essential Electric Supply
MJA36400 - Square D PowerPact M 400A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker, Electronic Trip, UL/CSA - Essential Electric Supply
MJA36400 - Square D PowerPact M 400A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker, Electronic Trip, UL/CSA - Essential Electric Supply
MJA36400 - Square D PowerPact M 400A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker, Electronic Trip, UL/CSA - Essential Electric Supply
MJA36400 - Square D PowerPact M 400A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker, Electronic Trip, UL/CSA - Essential Electric Supply
MJA36400 - Square D PowerPact M 400A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker, Electronic Trip, UL/CSA - Essential Electric Supply
MJA36400 - Square D PowerPact M 400A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker, Electronic Trip, UL/CSA - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
MJA36400 - Schneider Electric/ Square D I-Line Style Plug-In 400 Amp 3 Pole Circuit Breaker - Essential Electric Supply
MJA36400 - Square D PowerPact M 400A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker, Electronic Trip, UL/CSA - Essential Electric Supply
MJA36400 - Square D PowerPact M 400A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker, Electronic Trip, UL/CSA - Essential Electric Supply
MJA36400 - Square D PowerPact M 400A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker, Electronic Trip, UL/CSA - Essential Electric Supply
MJA36400 - Square D PowerPact M 400A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker, Electronic Trip, UL/CSA - Essential Electric Supply
MJA36400 - Square D PowerPact M 400A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker, Electronic Trip, UL/CSA - Essential Electric Supply
MJA36400 - Square D PowerPact M 400A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker, Electronic Trip, UL/CSA - Essential Electric Supply
MJA36400 - Square D PowerPact M 400A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker, Electronic Trip, UL/CSA - Essential Electric Supply
MJA36400 - Square D PowerPact M 400A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker, Electronic Trip, UL/CSA - Essential Electric Supply
MJA36400 - Square D PowerPact M 400A 3P 600VAC 25kA I-Line Molded Case Circuit Breaker, Electronic Trip, UL/CSA - Essential Electric Supply

Description

MJA36400


MJA36400 is a Square D PowerPact M series molded case circuit breaker designed for reliable power distribution in commercial and industrial applications.

This 3-pole, 400A breaker features a 600VAC voltage rating, 25kA interrupting capacity at 600V, and an I-Line plug-on mounting style for easy installation in compatible panelboards. It utilizes a solid-state electronic trip unit (ET 1.0) with long-time and instantaneous protection, and is certified to UL, CSA, CE, NEMA, NOM, and IEC standards for global compliance and safety.

    Key Specifications
  • Part Number: MJA36400
  • Manufacturer: Square D (Schneider Electric)
  • Amperage: 400A
  • Voltage: 600VAC
  • Poles: 3
  • Mounting Type: I-Line plug-on
  • Interrupt Rating: 25kA at 600VAC, 65kA at 480VAC, 100kA at 240VAC
  • Series/Frame: PowerPact M, MJA frame
  • Trip Unit: Electronic, ET 1.0
  • Certifications: UL, CSA, CE, NEMA, NOM, IEC
  • Wire Range: 3/0 AWG to 500 kcmil (Aluminum/Copper)
  • Frequency: 50/60 Hz
  • Temperature Rating: -25°C to 70°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: MJA36400
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : MJA
  • Voltage : 600
  • Amperage : 400
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@480V
  • Connection : Panel Mount
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Box Lug
  • Frame Size : 800A/M
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
  • Breaker Type : Standard
  • Protection : Solid State
  • Phase Connection : ABC

Product Data

  • UPC : 785901572619
  • GTIN : 00785901572619
  • Country of Origin : United States

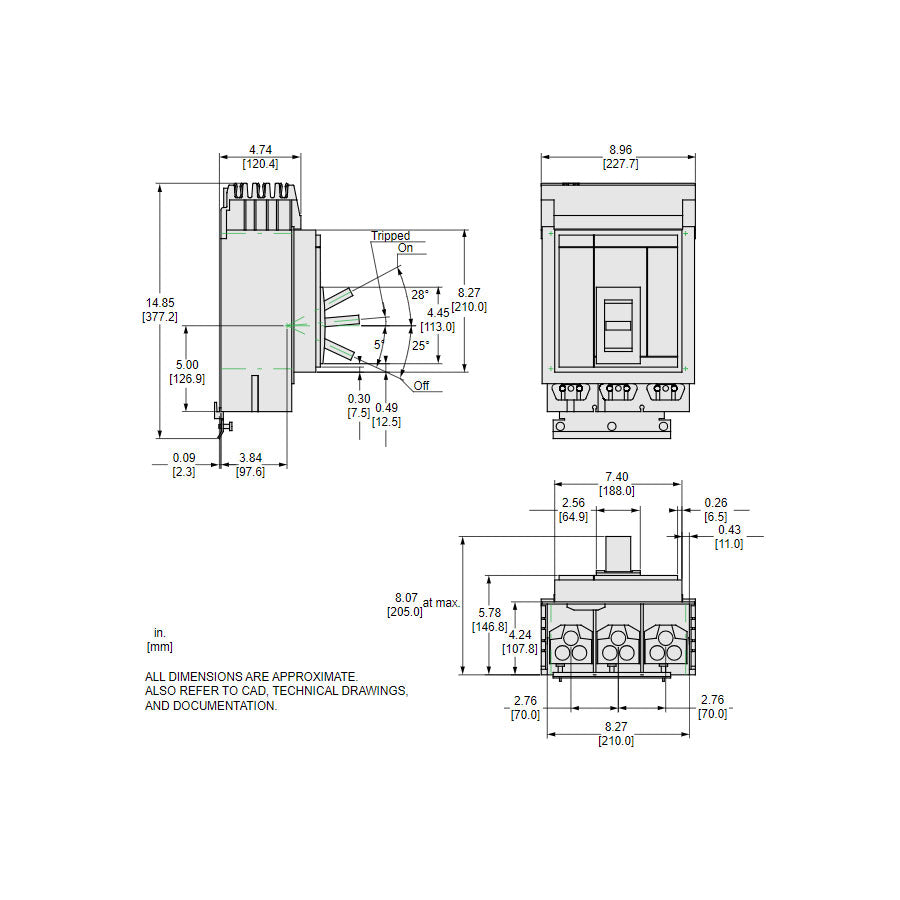

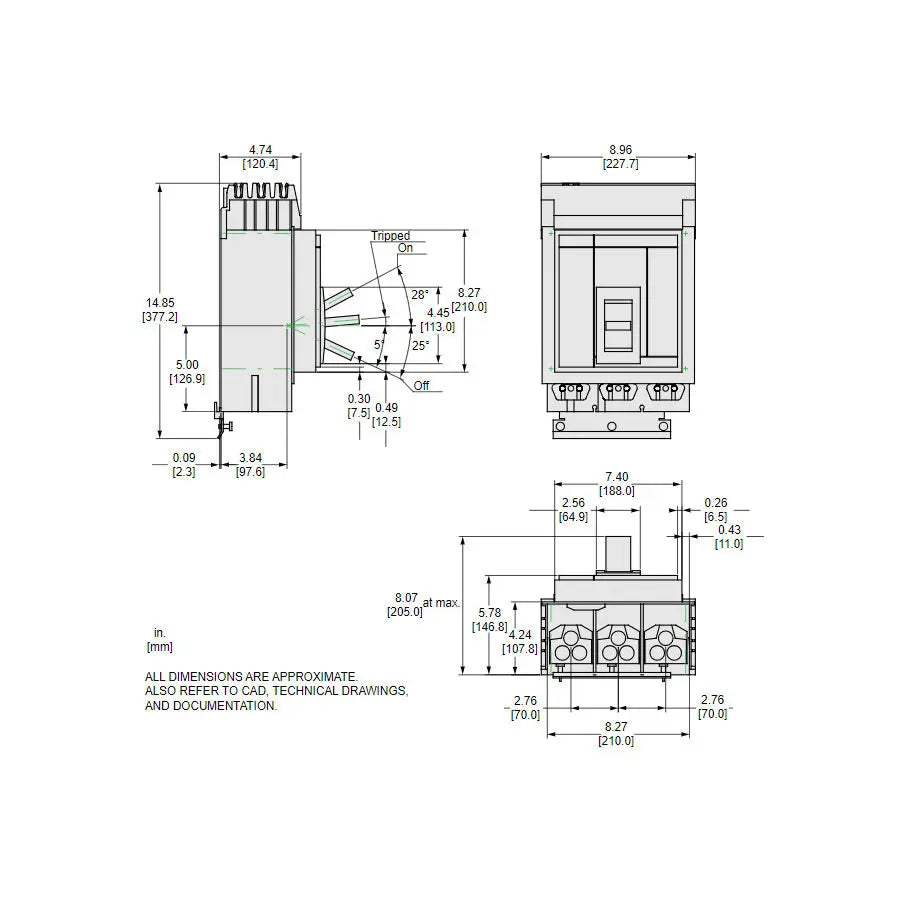

  • Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
  • Weight : 28.85 lb
  • Panel Type : I Line Panelboards
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper

Accesories

Part Manufacture Sub Category
S29452
S29450
AL800M23K
S33663
S33664
