2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
MJA36350YP

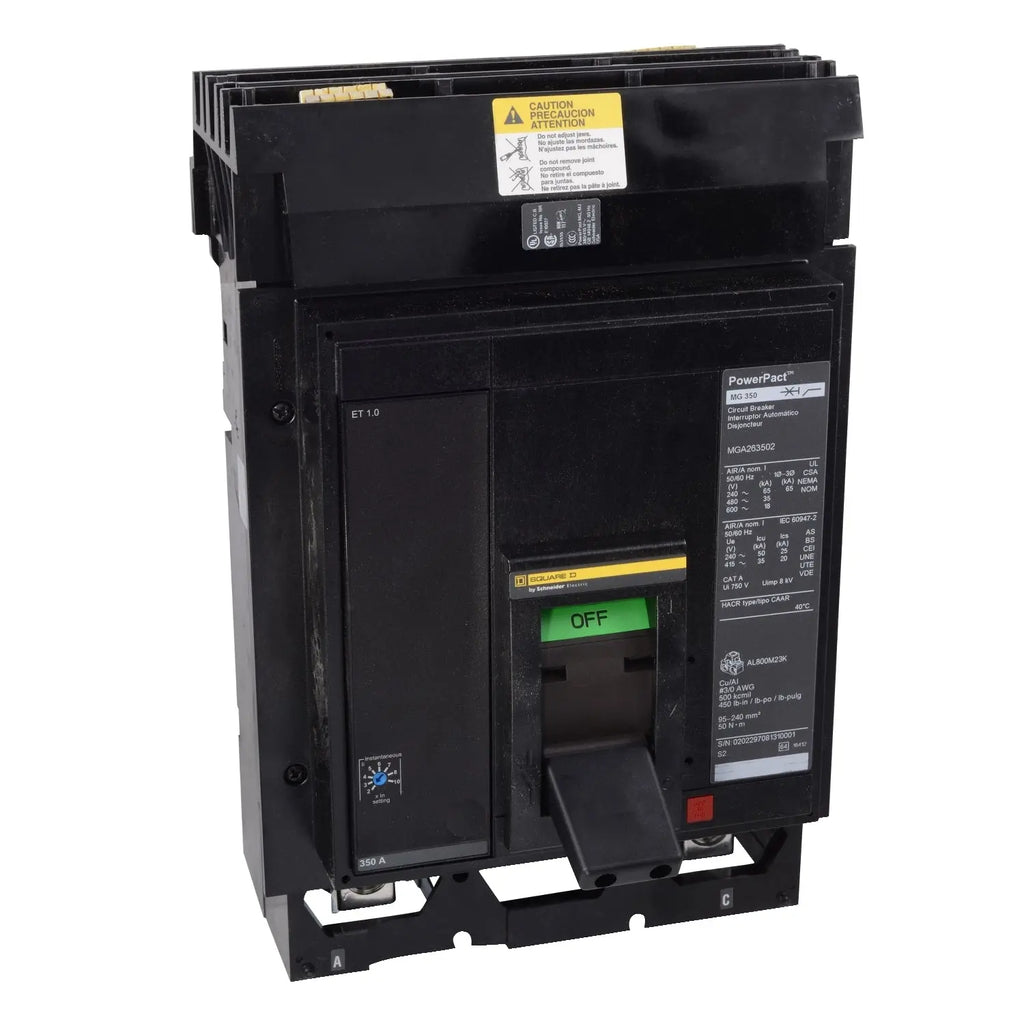

MJA36350YP is a Schneider Electric PowerPact M series circuit breaker designed for reliable power distribution protection.This 350 amp, 3-pole circuit breaker features a 600 VAC voltage rating and an interrupting rating of 25 kA at 600 VAC. It belongs to the I-Line M-frame series and includes an electronic trip unit for precise protection. The breaker is rated for continuous current at 80% and meets UL 489 certification standards.
- Key Specifications
- Amperage: 350 A
- Poles: 3
- Voltage Rating: 600 VAC
- Interrupt Rating: 25 kA at 600 VAC
- Series/Frame: PowerPact M, I-Line M-frame
- Trip Unit: Electronic Trip
- Continuous Current Rating: 80%
- Certifications: UL 489
- Part Number: MJA36350YP
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : MJA
- Voltage : 600
- Amperage : 350
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous
- Frame Size : M Frame
- Protection : Solid State
- Country of Origin : United States
- Dimensions : Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
- Weight : 29
