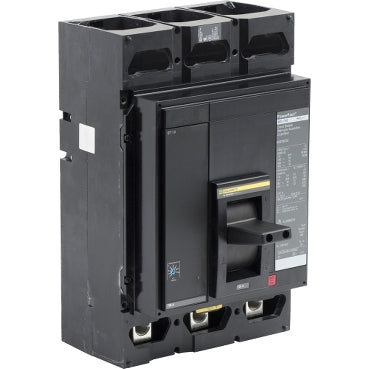

MGP36700 - Square D 700A 600V 3 Pole Molded Case Circuit Breaker Thermal Magnetic

MGP36700

MGP36700 is a Square D 3 pole molded case circuit breaker rated for 700 amps and 600 volts AC, designed for reliable circuit protection.This thermal magnetic circuit breaker features a 35kA interrupting rating at 480V and 18kA at 600V, suitable for industrial and commercial applications. It has a bolt-on mounting type and is UL, CSA, and IEC certified, ensuring compliance with safety standards. The breaker belongs to the PowerPact M series with an ET 1.0 trip unit and 80% rated frame.

Key Specifications
• Amperage: 700A
• Voltage Rating: 600 VAC
• Poles: 3
• Interrupting Rating: 35kA @ 480V, 18kA @ 600V
• Mounting Type: Bolt-On
• Trip Unit: Thermal Magnetic, ET 1.0
• Series/Frame: PowerPact M
• Approvals: UL, CSA, IEC
• Dimensions: 8.27" W x 8.05" D x 12.86" H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: MGP36700
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MGP
• Voltage : 600
• Amperage : 700
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : M Frame
• Protection : Solid State



Product Data

• UPC : 078590165871
• GTIN : 00785901658719
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 28.99
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
