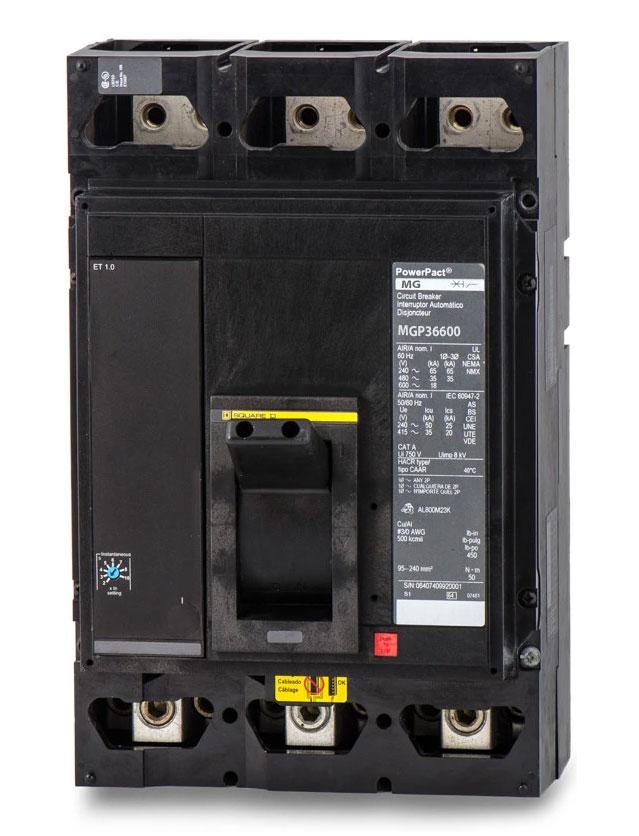

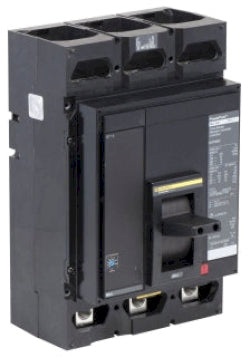

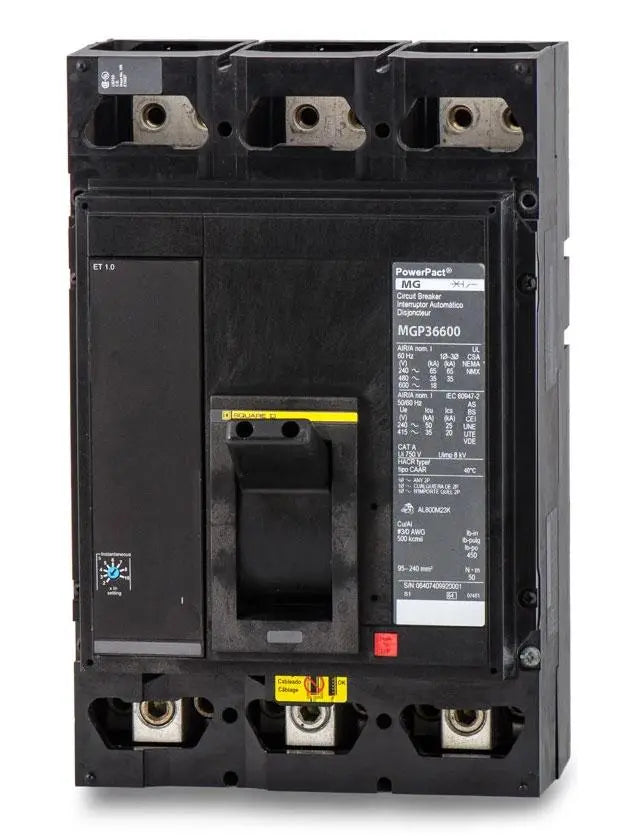

MGP36600 - Square D PowerPact M 600A 3 Pole 600V Molded Case Circuit Breaker with Electronic Trip Unit

MGP36600

MGP36600 is a Square D PowerPact M molded case circuit breaker designed for reliable protection in commercial and industrial applications. This breaker features a 600A current rating, 3 pole configuration, and 600V maximum operating voltage, making it suitable for demanding electrical environments. It utilizes a basic electronic trip unit (ET 1.0) for precise overload and short circuit protection. The unit mount design allows for easy installation, and the breaker is rated for high interrupting capacity with multiple AIC ratings depending on system voltage. Certified to UL, CSA, and IEC standards, the MGP36600 meets rigorous safety and performance requirements. This breaker is ideal for use in panelboards and switchgear where dependable circuit protection is essential. Its robust construction and advanced trip technology ensure long-term reliability and safety in critical power distribution systems.

• Part Number: MGP36600
• Manufacturer: Square D
• Series/Frame: PowerPact M
• Amperage: 600A
• Voltage: 600V AC
• Poles: 3 Pole
• Mounting Type: Unit Mount
• Interrupt Rating: 18kA @ 600V, 35kA @ 480V, 65kA @ 240V
• Protection Type: Electronic Trip (ET 1.0)
• Standards: UL 489, CSA, IEC
• Application: Commercial, Industrial
• Features: High Interrupting Capacity, Load Side Lugs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MGP36600
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MGP
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time, Short Time and Instantaneous Trip
• Terminal Connection : Lug, Terminal Nut
• Frame Size : M
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size (3) 3/0 AWG (Cu/Al) Max. Wire Size (3) 500 kcmil (Cu/Al)
• Protection : Solid State

Product Data

• UPC : 785901563532
• GTIN : 00785901563532
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 28.199
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
