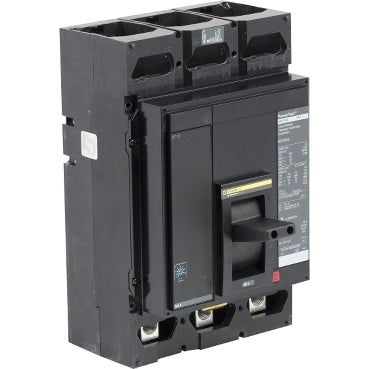

MGP36500 - Square D 500A 600V 3 Pole Molded Case Circuit Breaker PowerPact M Frame

MGP36500

MGP36500 is a Square D 3 pole molded case circuit breaker rated for 500 amps and 600 volts AC, designed for reliable power distribution protection.This circuit breaker features a PowerPact M frame with a thermal magnetic trip unit, suitable for industrial and commercial applications. It supports a maximum voltage of 600 VAC and has an interrupting rating of 18 kA at 600 volts AC. The breaker is UL, CSA, and CE certified, ensuring compliance with safety standards. It is designed for bolt-on mounting and provides robust protection with a 3-pole configuration.

• Amperage: 500A
• Voltage Rating: 600V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupting Rating: 18 kA at 600V AC
• Frame/Series: PowerPact M
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA, CE
• Dimensions: Approx. 8.27" W x 8.05" D x 12.86" H
• Manufacturer: Square D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MGP36500
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MGP
• Voltage : 600
• Amperage : 500
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : M Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 078590145521
• GTIN : 00785901455219
• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 28.25
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
