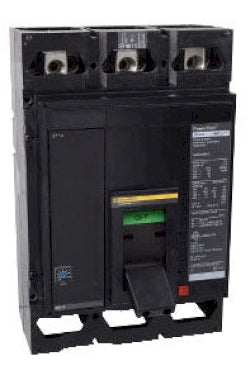

MGM36800 - Square D 800 Amp 600 Volt 3-Pole M Frame Molded Case Circuit Breaker

MGM36800

MGM36800 is a 3-pole, 800 amp, 600 volt molded case circuit breaker from Square D designed for industrial power distribution protection.

This Square D MGM36800 breaker features an M frame with a unit mount design and a G interrupt rating. It is UL 489 listed and suitable for use up to 600 VAC. The breaker offers interrupt ratings of 65 kA at 240 V, 35 kA at 480 V, and 18 kA at 600 V. It uses a thermal magnetic trip unit with basic electronic ET 1.0 type technology for reliable circuit protection.

Key Specifications
• Amperage: 800 Amp
• Voltage Rating: 600 Volt AC
• Poles: 3
• Frame Type: M Frame
• Mounting Type: Unit Mount
• Interrupt Rating: 65 kA @ 240 V, 35 kA @ 480 V, 18 kA @ 600 V
• Trip Unit: Thermal Magnetic, Basic Electronic ET 1.0
• UL Listing: UL 489

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MGM36800
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MGM
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Lug In/Lug Out
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : M
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size (3) 3/0 AWG (Cu/Al) Max. Wire Size (3) 500 kcmil (Cu/Al)
• Protection : Solid State

Product Data

• UPC : 785901480396
• GTIN : 00785901480396
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 28.049
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
