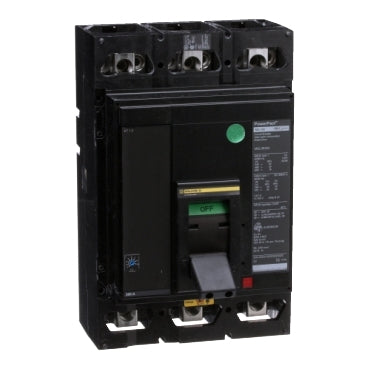

MGL36600SA - Schneider Electric 600A 600V 3 Pole PowerPact M Molded Case Circuit Breaker

MGL36600SA

MGL36600SA is a Schneider Electric PowerPact M molded case circuit breaker rated for 600 amps and 600 volts with 3 poles.This circuit breaker features a 35kA interrupting rating at 480V, 18kA at 600VAC, and includes lugs for easy connection. It has an electronic trip unit (ET 1.0) with an 80% rating and is designed for main lug panelboard terminations. The breaker is UL 480 Listed and certified by CSA, NMX, and IEC standards, ensuring reliable performance and safety.

Key Specifications
• Amperage: 600A
• Voltage: 600V AC
• Poles: 3
• Interrupt Rating: 35kA @ 480V, 18kA @ 600VAC
• Series/Frame: PowerPact M
• Trip Unit: Electronic Trip (ET 1.0), 80% rating
• Mounting Type: Molded Case
• Certifications: UL 480, CSA, NMX, IEC
• Connection Type: Lugs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

complete with 110/130Vac shunt trip




Specifications

• Part Number: MGL36600SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MGL
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Protection : Solid State



Product Data

• UPC : 785901590002
• GTIN : 00785901590002
• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 29
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
