MGL36400 - Square D 400A 600VAC 3-Pole Powerpact M Molded Case Circuit Breaker ET1.0 Trip

MGL36400

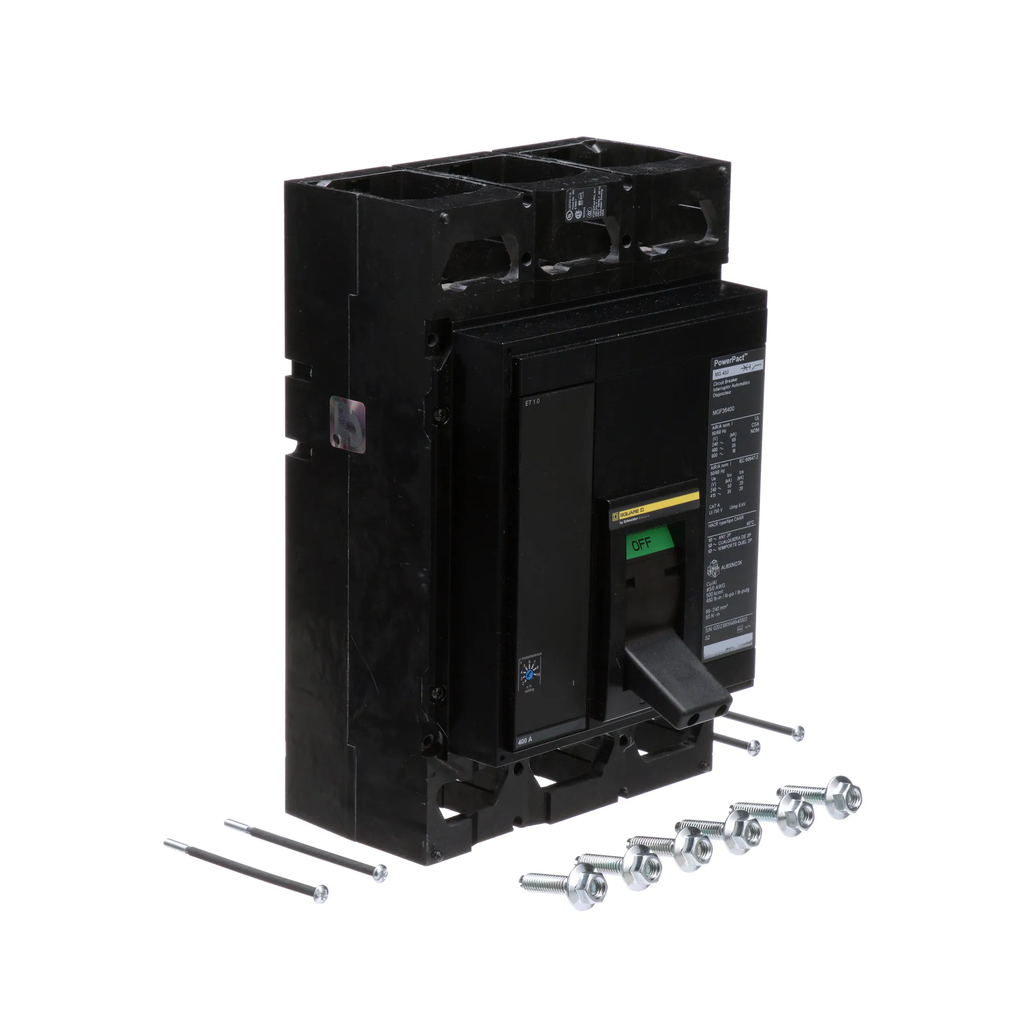

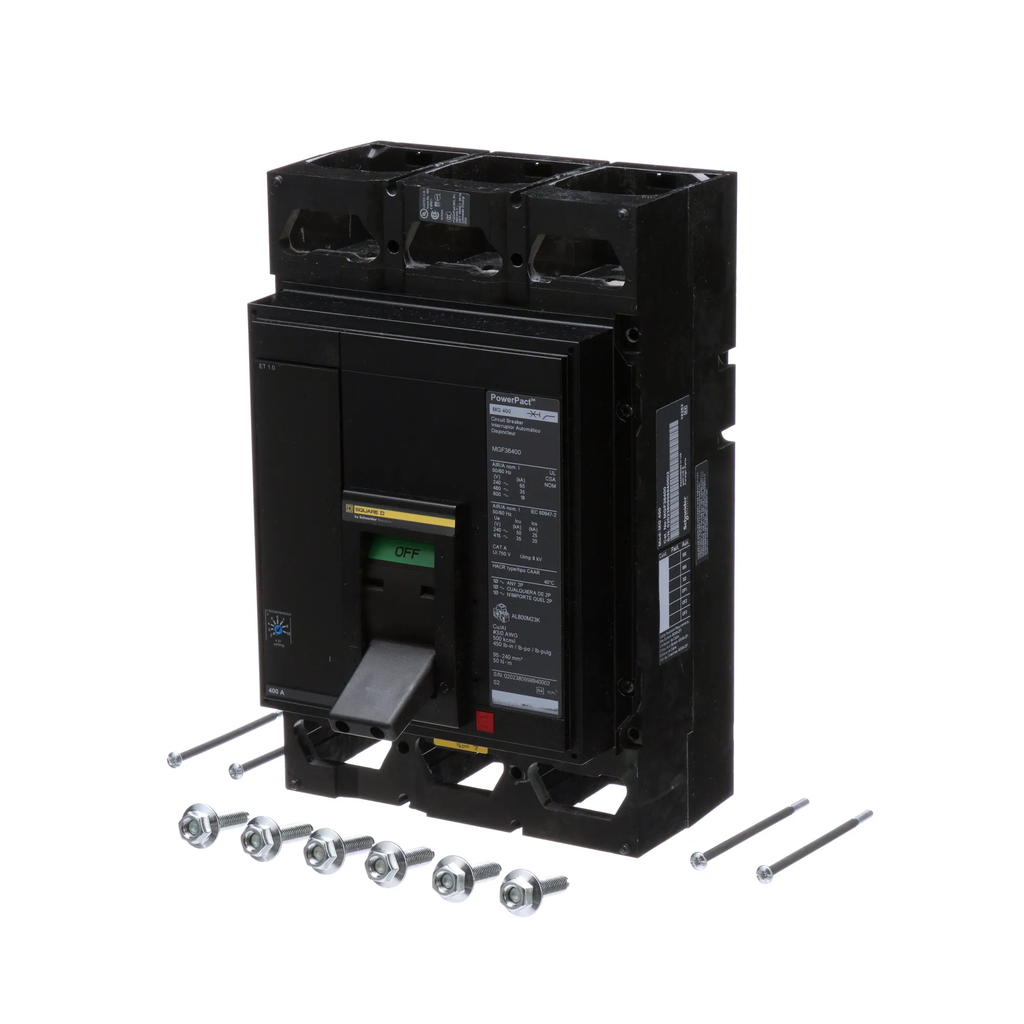

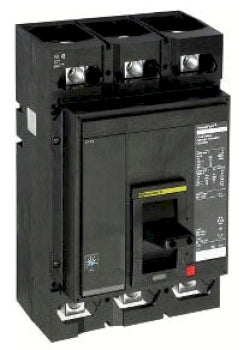

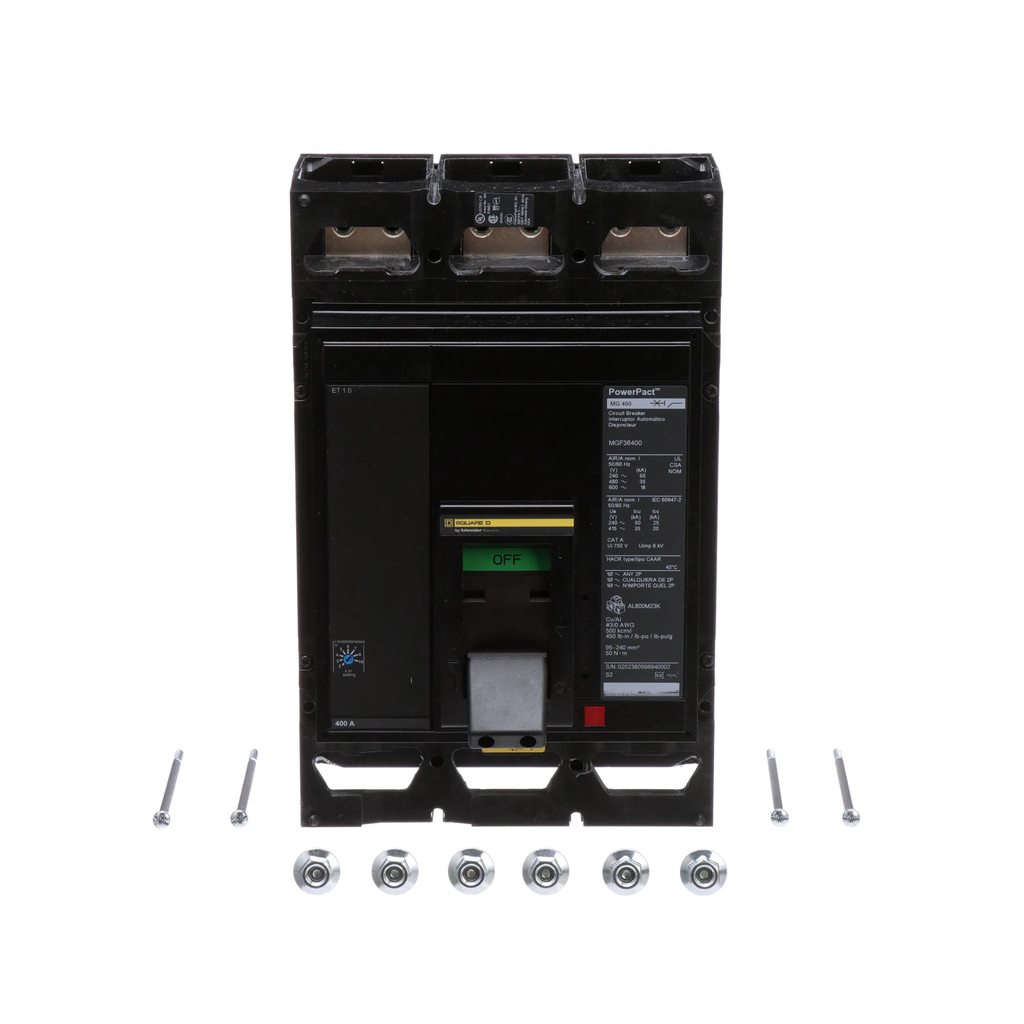

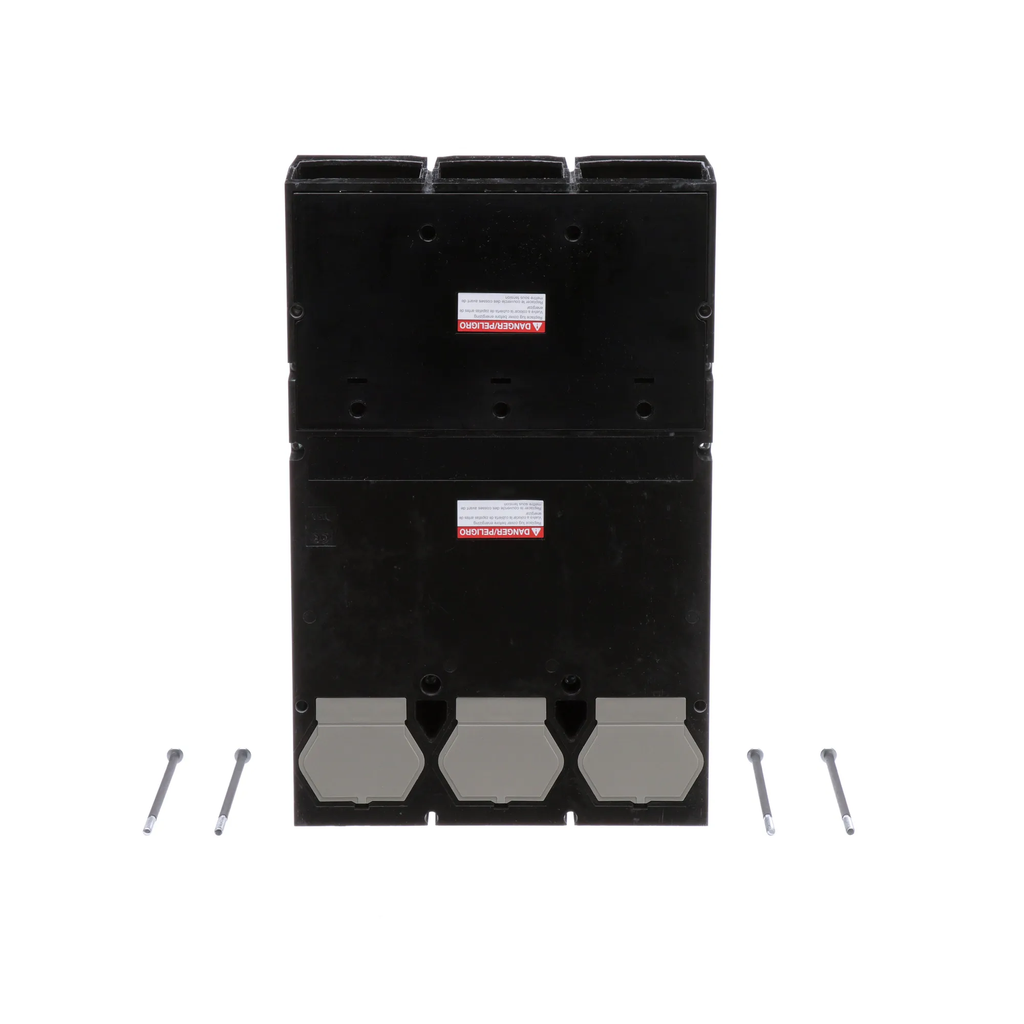

MGL36400 is a Square D Powerpact M molded case circuit breaker with a 400 amp rating and 3 poles designed for 600 VAC applications.This circuit breaker features an electronic basic ET1.0 trip unit, 18 kA interrupt rating at 600 VAC, and lug-type connections for reliable power distribution protection.

Key Specifications
• Amperage Rating: 400 A
• Voltage Rating: 600 VAC / 250 VDC
• Number of Poles: 3
• Frame Type: Powerpact M
• Interrupt Rating: 18 kA at 600 VAC, 35 kA at 480 VAC, 65 kA at 240 VAC
• Trip Unit: Electronic Basic ET1.0
• Mounting Type: Unit Mount
• Connection Type: Lug
• Frequency: 50/60 Hz
• Wire Size Range: 3/0 AWG to 500 kcmil
• Certifications: UL 489, CSA, IEC 60947-2
• Dimensions: 8.1 in L x 8.3 in W x 12.8 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MGL36400
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MGL
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Lug In/Lug Out
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Box Lug
• Frame Size : 800A/M
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
• Breaker Type : Standard
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901507659
• GTIN : 00785901507659
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 28.7
• Panel Type : Equipment Gear
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
