MGF36800 - Square D 800 Amp 600 Volt 3 Pole M Frame Molded Case Circuit Breaker

MGF36800

MGF36800 is a Square D M Frame molded case circuit breaker rated for 800 amps and 600 volts with three poles.MGF36800 features a unit mount design and a G interrupt rating, providing reliable protection for electrical systems up to 600 VAC. It is UL 489 listed and designed for use in PowerPact M-Frame applications, offering consistent mounting holes and handle locations for easy standardization. This breaker includes thermal magnetic trip units and is suitable for panel or unit mounting.

• Amperage: 800 Amp
• Voltage: 600 Volt maximum
• Poles: 3 Pole
• Frame Type: M Frame
• Mounting Type: Unit Mount
• Interrupt Rating: G Interrupt Code
• Interrupting Capacity: 65 kA at 240V, 35 kA at 480V, 18 kA at 600V
• UL Listing: UL 489
• Trip Unit: Thermal Magnetic

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MGF36800
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MGF
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : M Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 078590147702
• GTIN : 00785901477020
• Country of Origin : Mexico

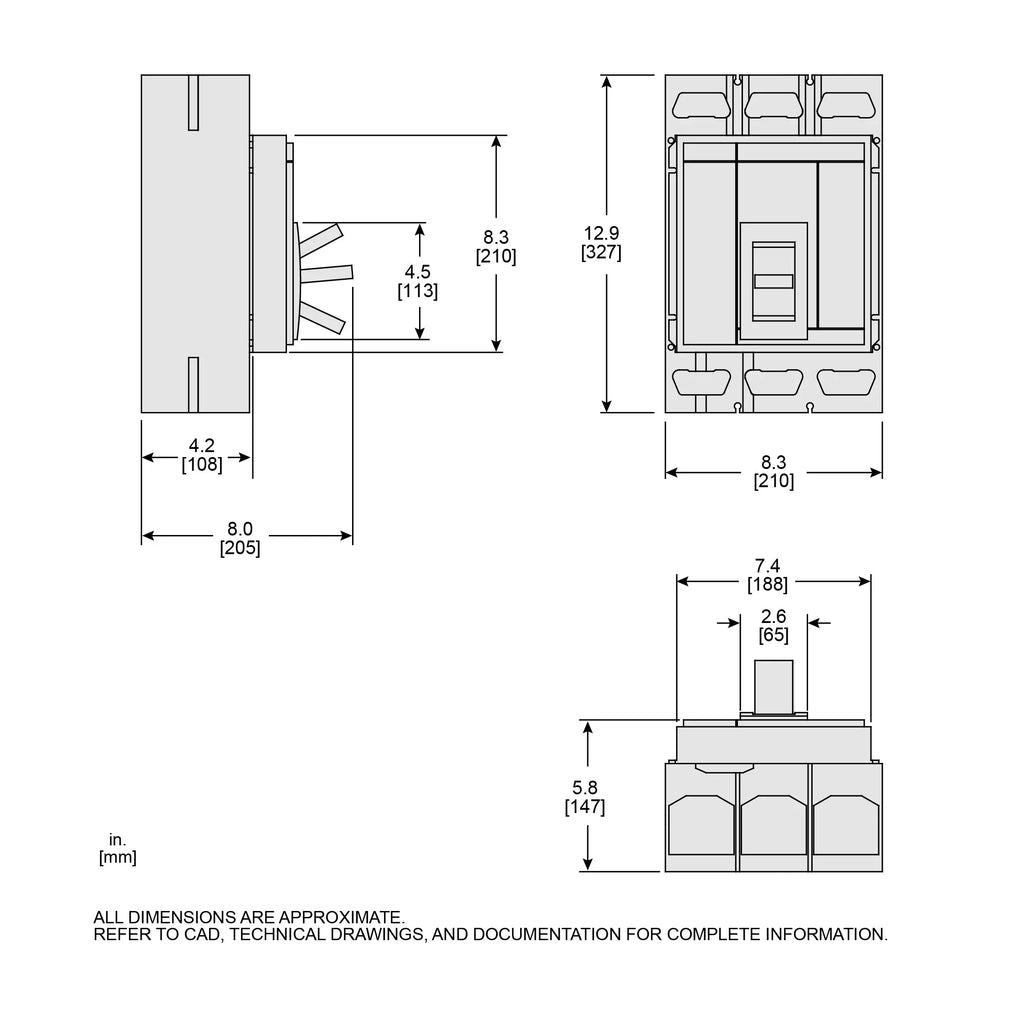

• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 28.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
