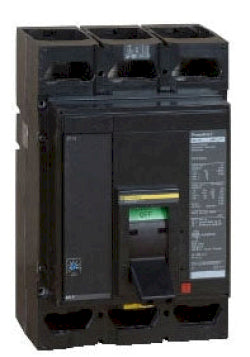

MGF36600 - Square D 600A 600V 3-Pole M Frame Molded Case Circuit Breaker Electronic Trip

MGF36600

MGF36600 is a Square D PowerPact M Molded Case Circuit Breaker with a 600 Ampere rating and 600 Volt AC voltage, designed for 3-pole electrical protection.This circuit breaker features an M frame with electronic trip unit (Basic ET1.0) providing fixed long-time and adjustable instantaneous trip functions. It is 80% rated, suitable for 50/60 Hz frequency, and supports busbar line/load connection. The breaker has a unit mounting type and offers interrupt ratings of 18kA at 600V, 35kA at 480V, and 65kA at 240V. It complies with UL 489, IEC, CSA, and other certifications, ensuring reliable and safe operation.

Key Specifications
• Amperage: 600 A
• Voltage: 600 VAC
• Poles: 3
• Frame Type: M
• Trip Unit: Electronic Basic ET1.0 (Fixed Long Time/Adjustable Instantaneous)
• Interrupt Rating: 18kA @ 600V, 35kA @ 480V, 65kA @ 240V
• Mounting Type: Unit Mount
• Frequency: 50/60 Hz
• Connection Type: Busbar Line/Load
• Enclosure Type: NEMA AB1
• Certifications: UL 489, IEC, CSA, NOM, RoHS
• Dimensions: 8.1 in L x 8.3 in W x 12.8 in H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: MGF36600
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : MGF
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Busbar Connection
• Frame Size : M
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size (3) 3/0 AWG (Cu/Al) Max. Wire Size (3) 500 kcmil (Cu/Al)
• Protection : Solid State



Product Data

• UPC : 785901582694
• GTIN : 00785901582694
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 27.65
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
