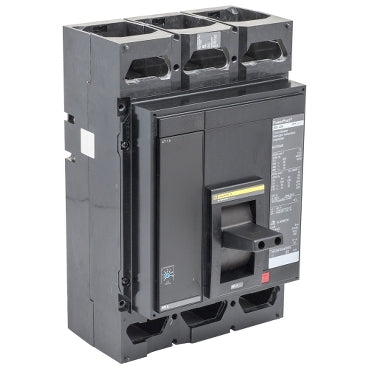

MGF26600 - Square D 600A 600V 2-Pole Molded Case Circuit Breaker, PowerPact M Frame, Bolt-On, 35kA@480V, Solid State Trip Unit, CSA/UL/NOM Certified

MGF26600

MGF26600 is a Square D PowerPact M frame, 2-pole, 600A, 600V molded case circuit breaker designed for robust electrical protection.

This circuit breaker features a bolt-on mounting type, solid state trip unit for precise protection, and is rated for 35kA interrupting capacity at 480V. It is part of the Square D PowerPact M series, known for reliability in commercial and industrial applications.

Key Specifications
• Part Number: MGF26600
• Manufacturer: Square D
• Amperage: 600A
• Voltage: 600V
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 35kA@480V
• Series/Frame: PowerPact M
• Trip Unit: Solid State
• Certifications: CSA, UL, NOM
• Connection: Busbar
• Depth: 8.05 in
• Height: 12.86 in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: MGF26600
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 600
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Solid State

Product Data

• GTIN : 00785901620358
• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 25.53
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
