MDL3600 - Cutler-Hammer 600A 600V 3P Series C MDL Frame Molded Case Circuit Breaker, Thermal Magnetic Trip, Panel Mount, 50kAIC @ 480VAC

MDL3600

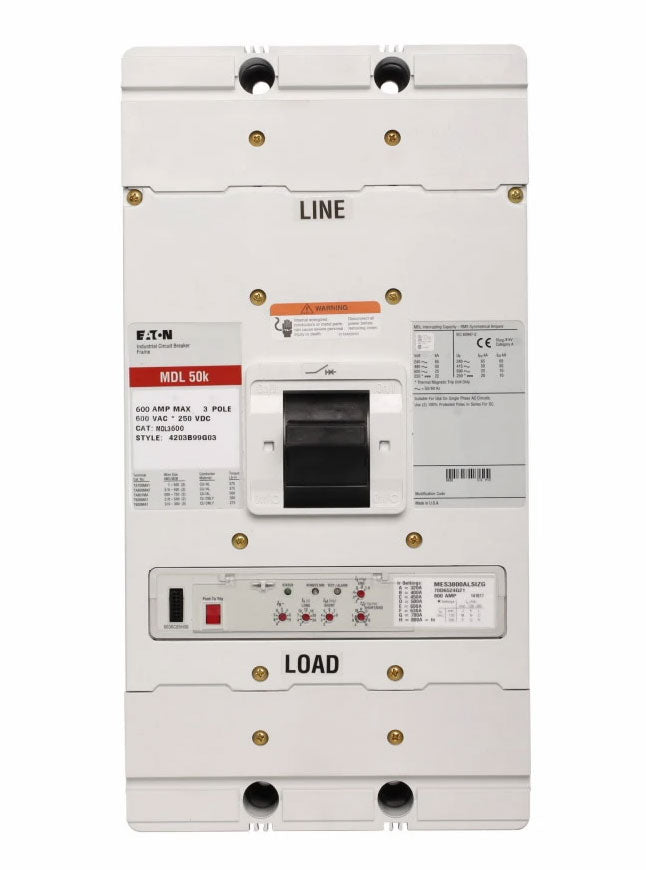

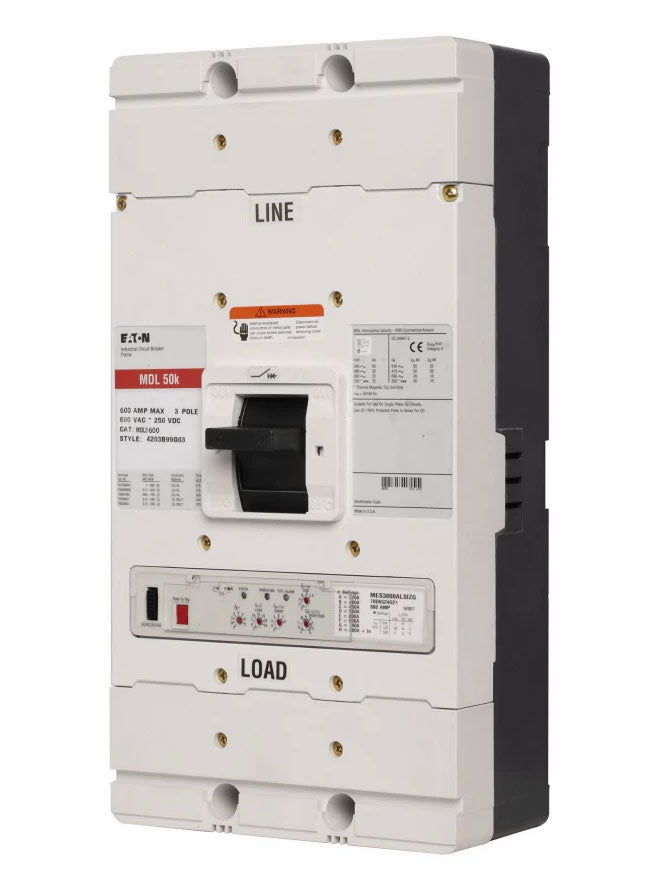

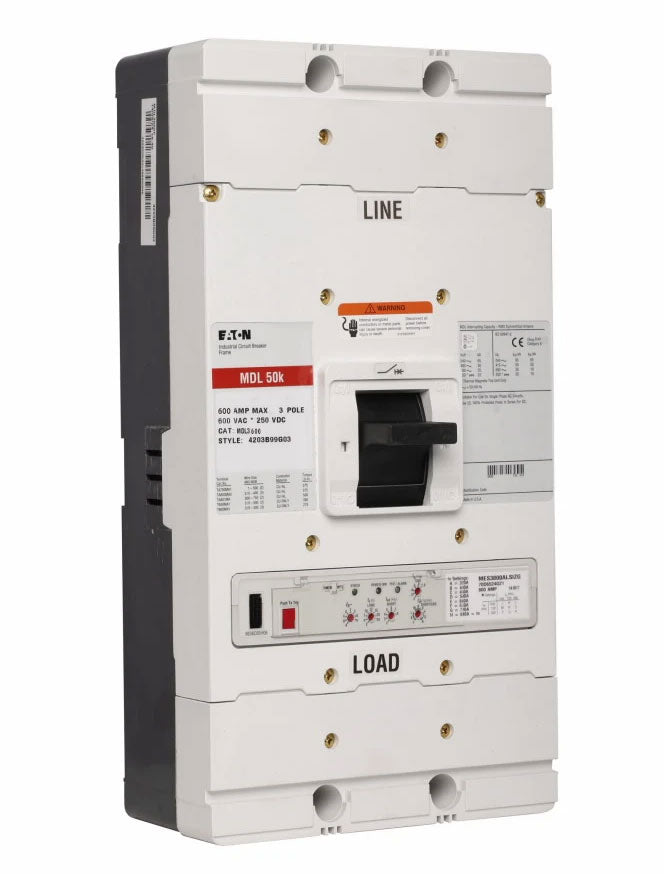

MDL3600 is a Cutler-Hammer Series C MDL frame molded case circuit breaker designed for robust industrial power distribution.

This 3-pole, 600A, 600VAC/250VDC breaker features a thermal magnetic trip unit, panel mounting, and a high interrupting rating—ideal for demanding electrical applications. It is UL, CSA, and CE certified for safety and compliance.

Key Specifications
• Amperage: 600A
• Voltage: 600VAC, 250VDC
• Poles: 3
• Mounting Type: Panel mount
• Interrupt Rating: 50kAIC @ 480VAC, 65kAIC @ 240VAC, 25kAIC @ 600VAC (UL/CSA)
• Series/Frame: Series C, MDL frame
• Trip Unit: Fixed thermal, fixed magnetic (T186)
• Frequency: 50/60 Hz
• Terminals: Standard pressure line and load (aluminum/copper)
• Approvals: UL, CSA, CE
• Dimensions: 8.25" W x 4.062" D x 16" H
• Weight: 30 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MDL3600
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : MDL
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 50kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : M Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 782114585986
• GTIN : 00782114585986
• Country of Origin : United States
• Dimensions : 10.75 in x 10.75 in x 10.75 in (Length/Depth x Height x Width)
• Weight : 30
• Certification : UL Listed
