2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
MDL3300W

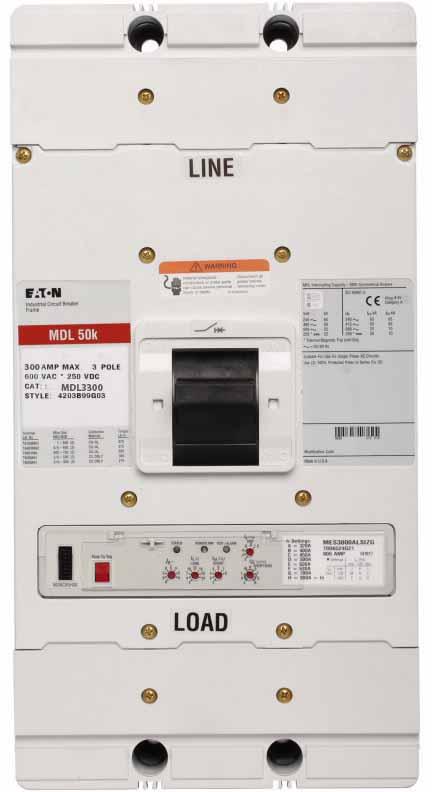

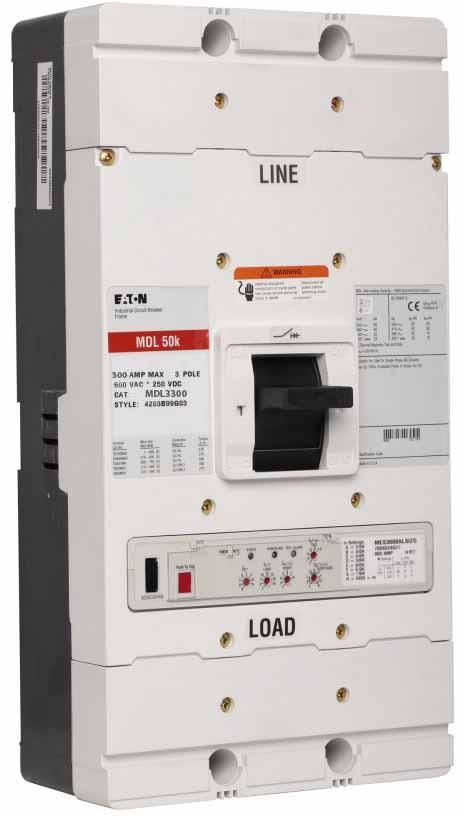

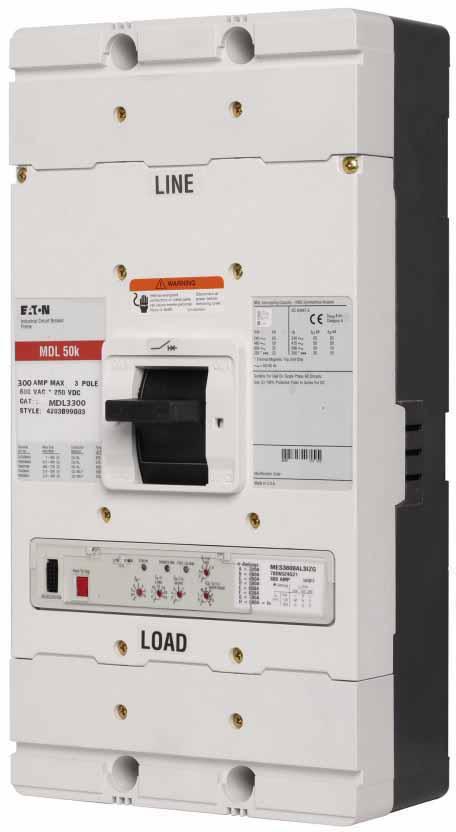

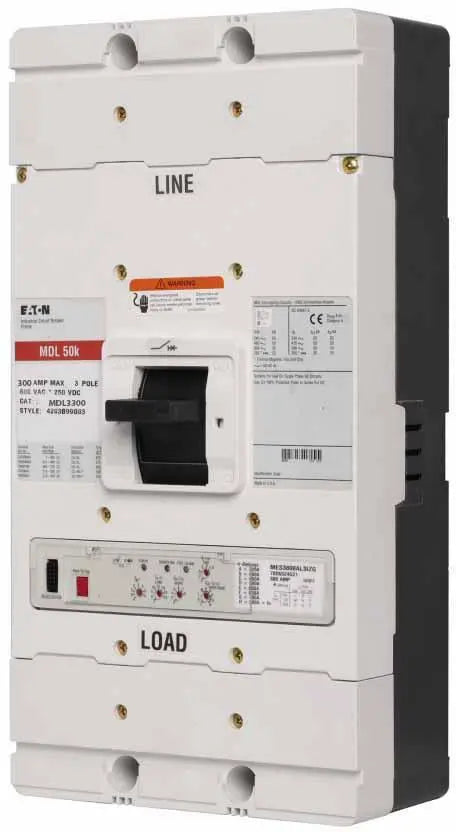

MDL3300W is a 300 Amp, 3-pole molded case circuit breaker from Eaton's Series C designed for reliable circuit protection in commercial and industrial applications.This Eaton MDL3300W breaker features a fixed thermal and fixed magnetic trip unit, supporting voltage ratings of 600 VAC and 250 VDC. It offers high interrupting capacity with ratings of 65 kAIC at 240 VAC, 50 kAIC at 480 VAC, and 25 kAIC at 600 VAC, ensuring robust protection against short circuits. The breaker is designed for feed-thru mounting and complies with UL safety standards.
- Key Specifications
- Amperage Rating: 300 A
- Voltage Rating: 600 VAC / 250 VDC
- Poles: 3
- Series/Frame: Eaton Series C, MDL Frame
- Trip Unit: Fixed Thermal / Fixed Magnetic
- Interrupting Capacity: 65 kAIC @ 240 VAC, 50 kAIC @ 480 VAC, 25 kAIC @ 600 VAC
- Mounting Type: Feed-Thru
- Frequency: 50/60 Hz
- UL Listed
- Part Number: MDL3300W
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : MDL
- Voltage : 600
- Amperage : 300
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : M Frame
- Protection : Thermal Magnetic
- Weight : 33
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
