Product Info
- Manufacturer:Westinghouse
- Sub-Category:Molded Case
Description
MDL3300

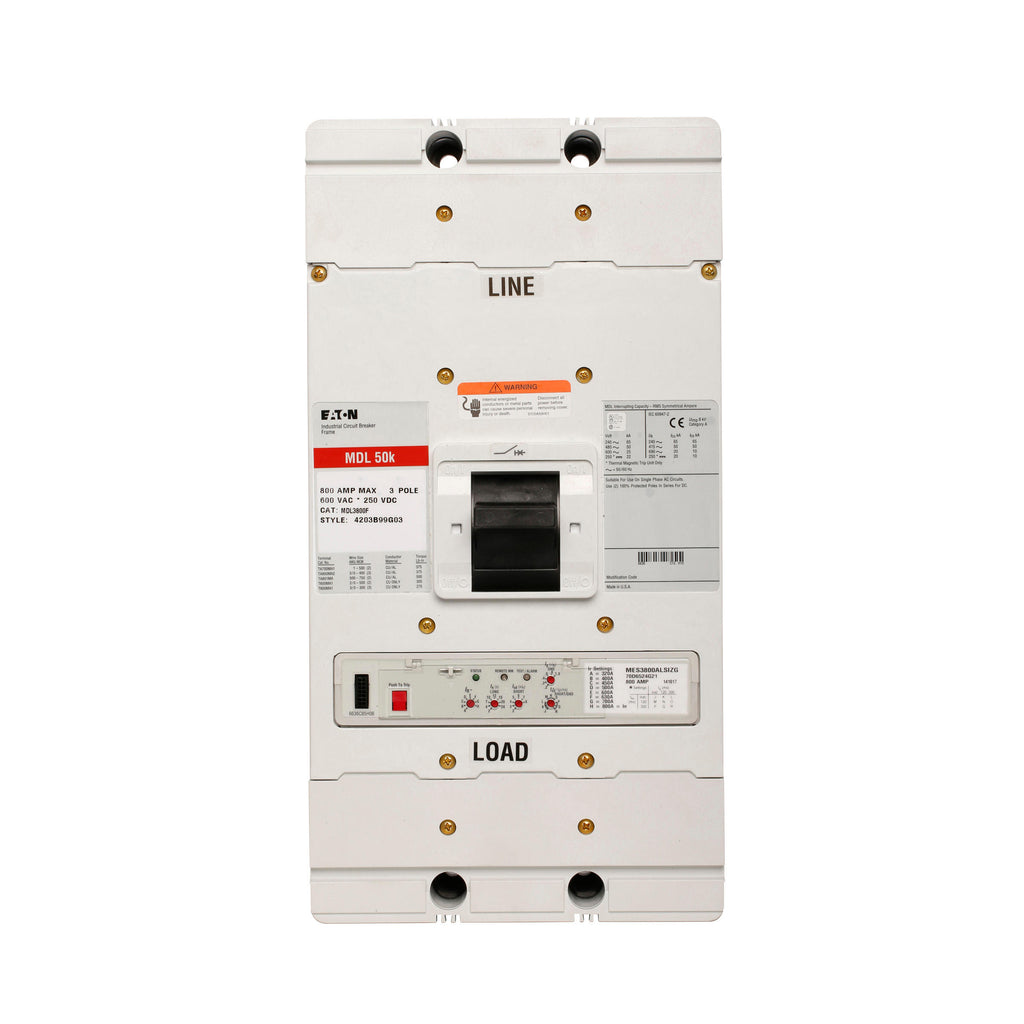

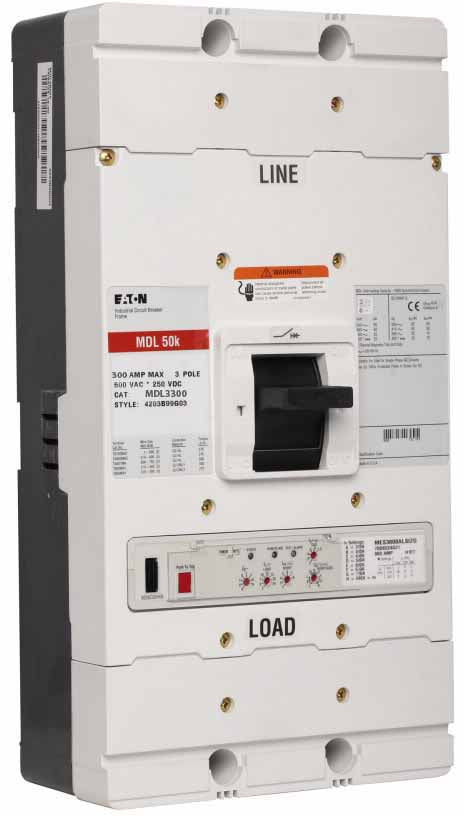

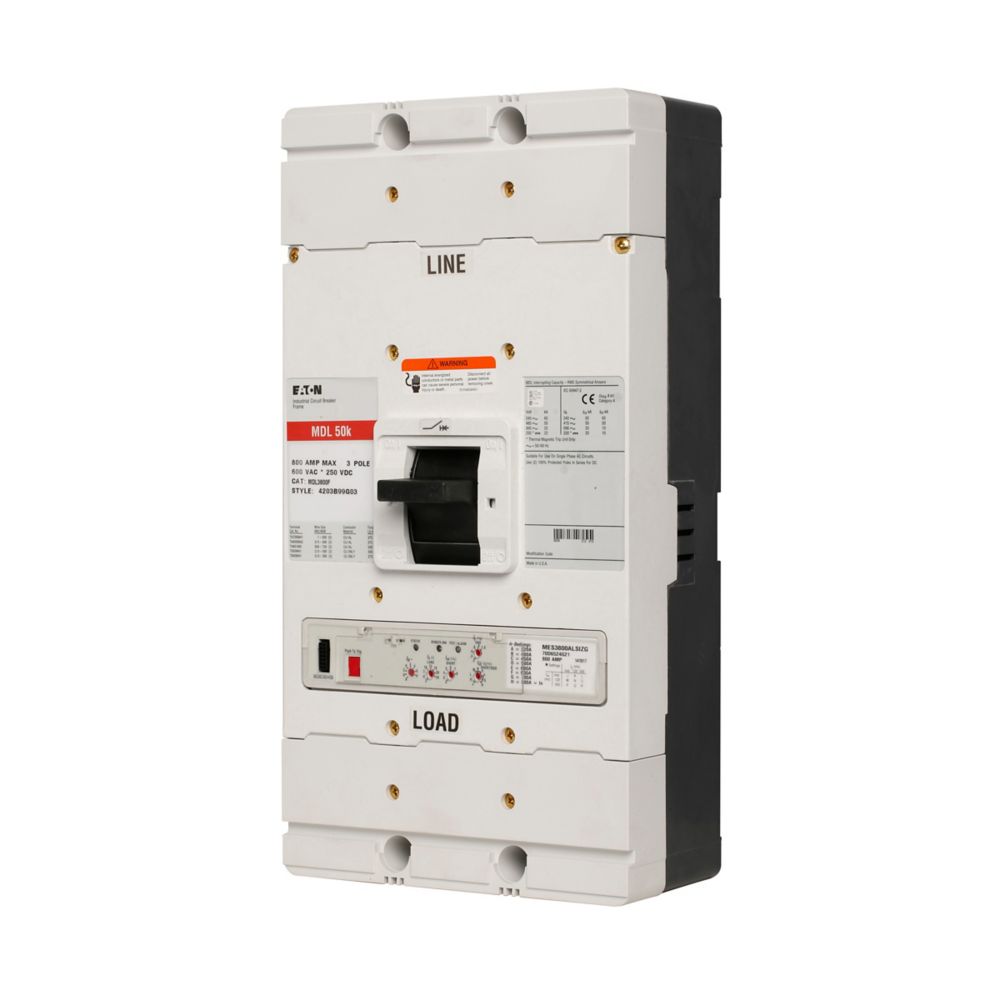

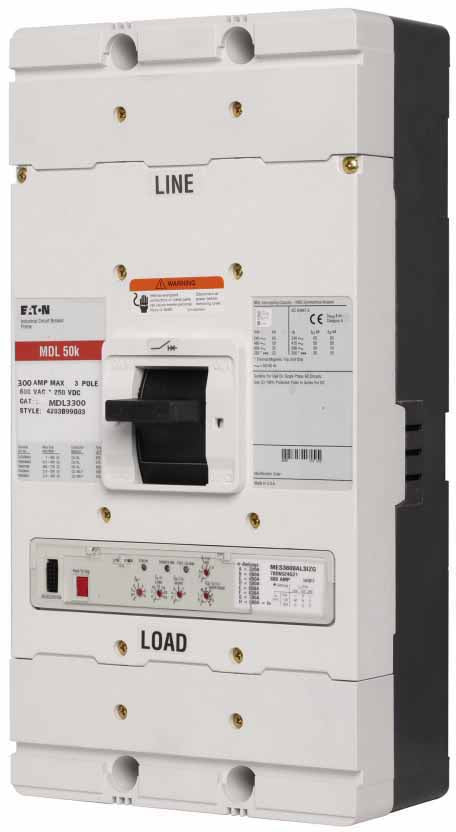

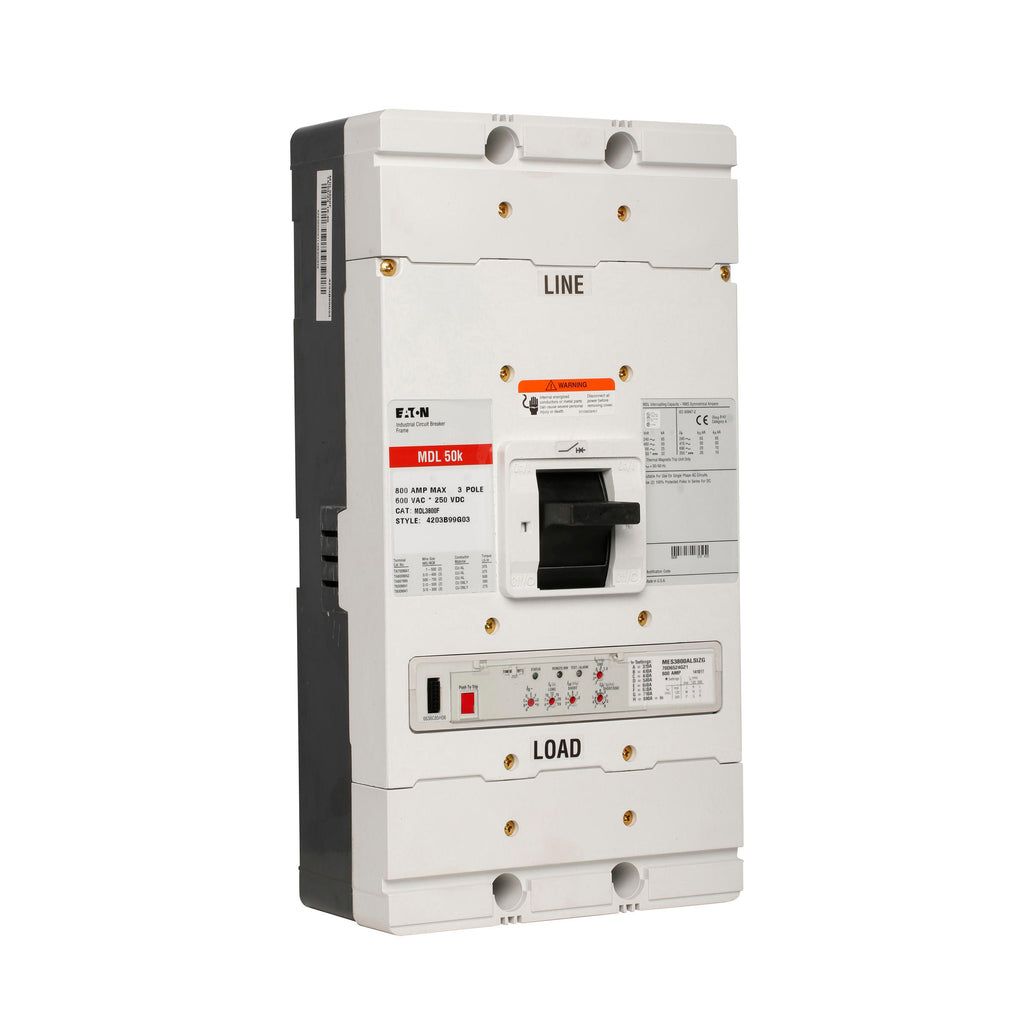

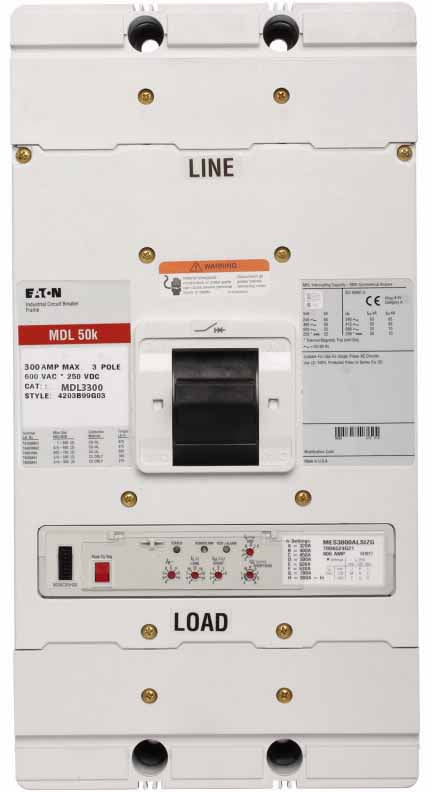

MDL3300 is a 300 Amp, 600 Volt, 3-pole molded case circuit breaker from Westinghouse designed for reliable circuit protection.This MDL series circuit breaker features a thermal magnetic trip unit with a standard interrupting capacity suitable for panel mounting. It supports AC voltage up to 600V and offers robust protection with a frame type MDL. The breaker is engineered for industrial and commercial electrical distribution systems requiring dependable overload and short circuit protection.
- Key Specifications
- Manufacturer: Westinghouse (Eaton-Cutler Hammer)
- Amperage Rating: 300 Amps
- Voltage Rating: 600 VAC
- Poles: 3
- Frame Type: MDL
- Mounting Type: Panel Mount
- Trip Unit: Thermal Magnetic
- Interrupting Capacity: 65kA @ 240VAC, 50kA @ 480VAC, 25kA @ 600VAC
- Type: Molded Case Circuit Breaker
- Standards/Certifications: UL Listed (typical for this model)
- Part Number: MDL3300
- Manufacturer : Westinghouse
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : MDL
- Voltage : 600
- Amperage : 300
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : M Frame
- Protection : Thermal Magnetic
- UPC : 782114585931
- GTIN : 00782114585931
- Country of Origin : United States
- Dimensions : Length .01in Height .01in Width .01in
- Weight : 0.01
- Certification : UL Listed
